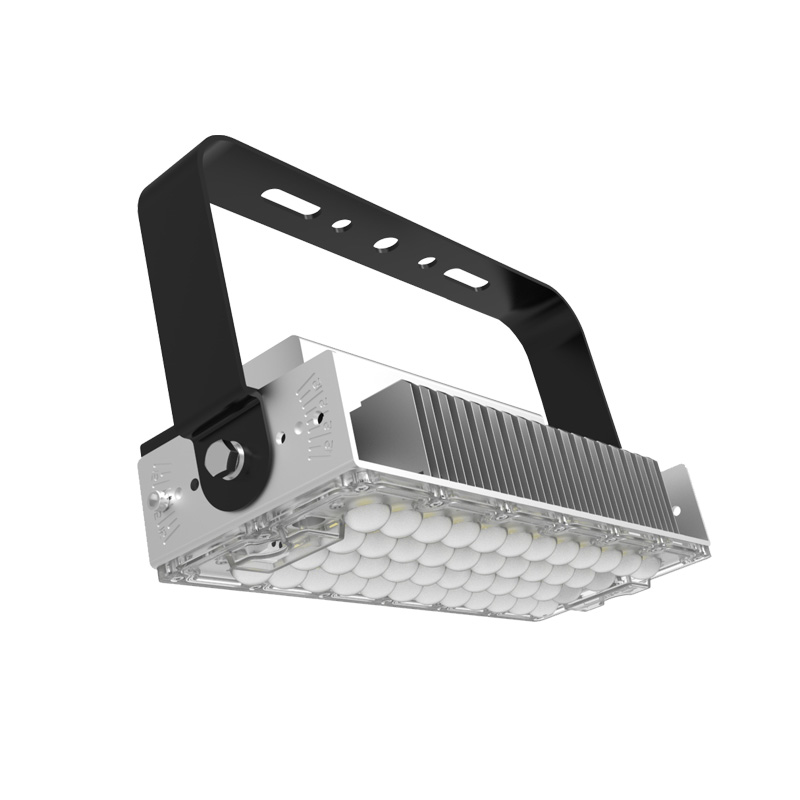

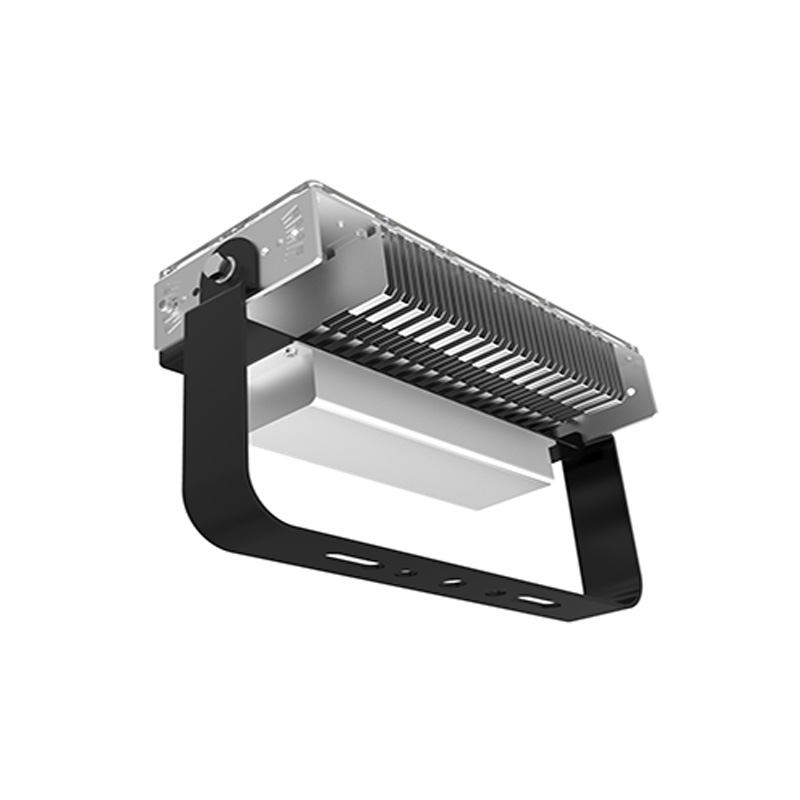

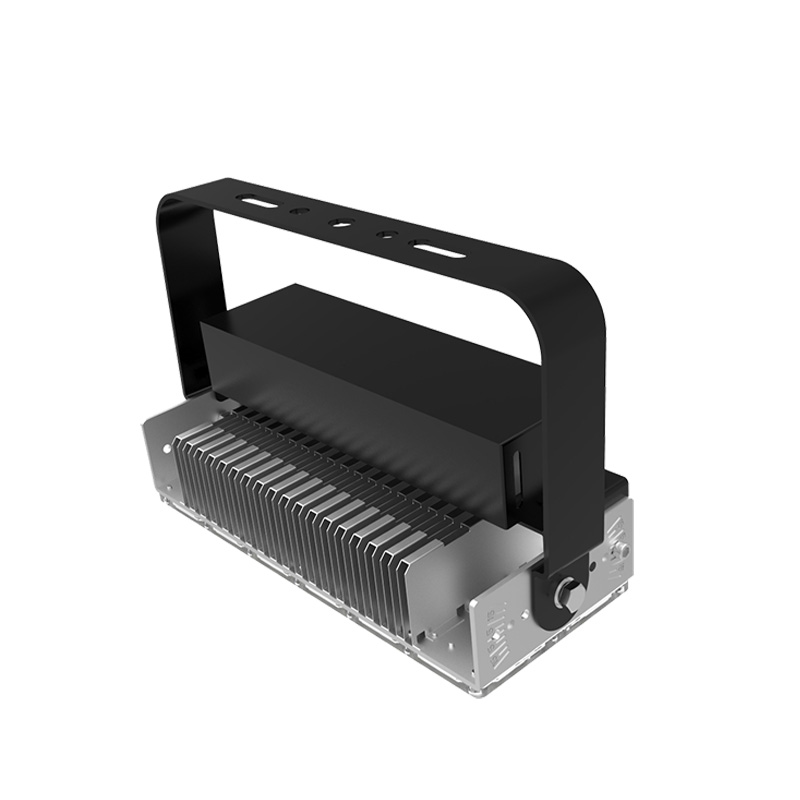

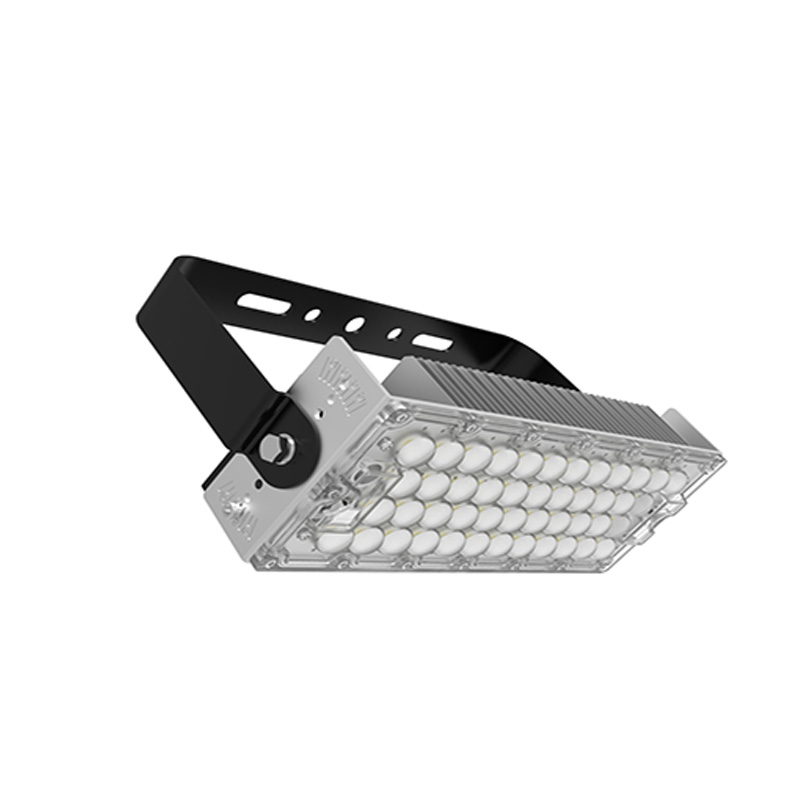

Product Name:
HZB-HM-R1-100WModel No.:
HZB-HM-R1-100W
Product Abstract:
100W TUV SAA LED High Mast Light,Rotatable Module,160Lm/W,16,000 Lumen,IP65,Stadium Light,Sports Lighting,Flood Lighting,designed to replace 250W HPS MH high mast lights. LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.
HZB™ LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights. LED high mast luminaires can reduce operational and maintenance costs. We support high mast light price,fixtures and system design, high mast light Manufacturer Supplier.

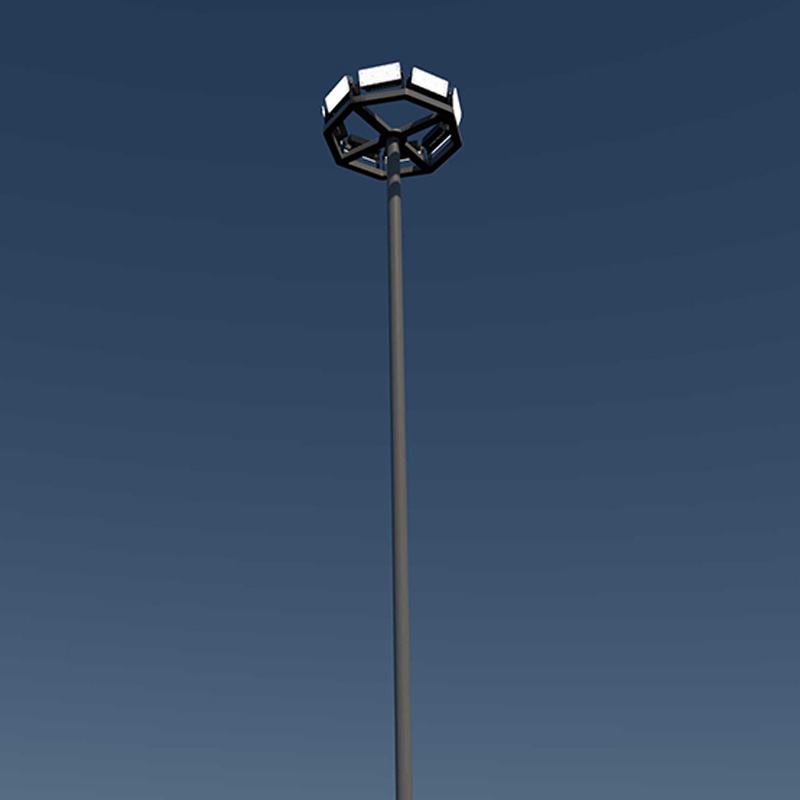

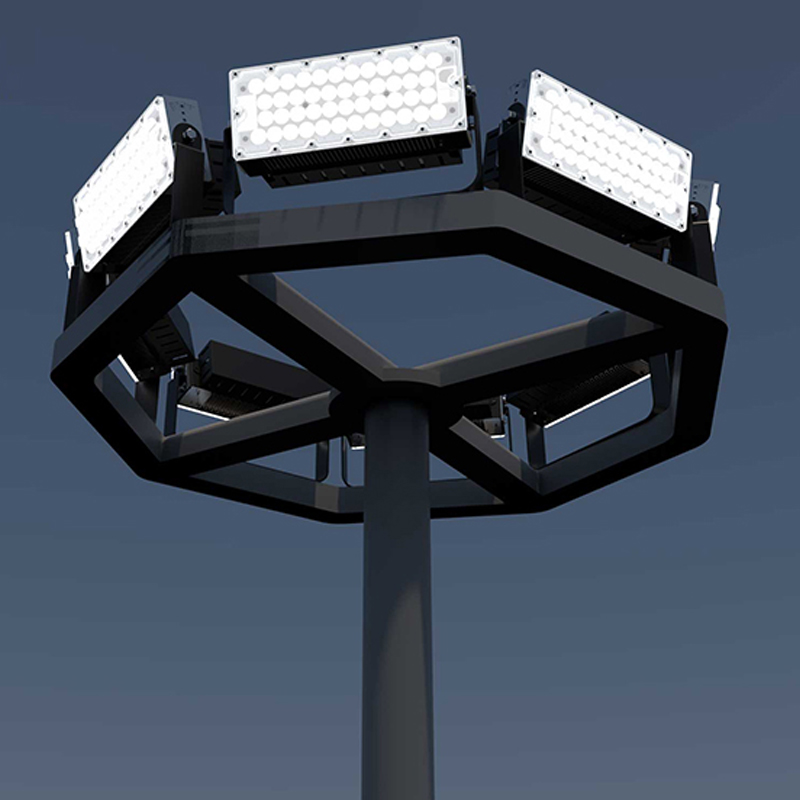

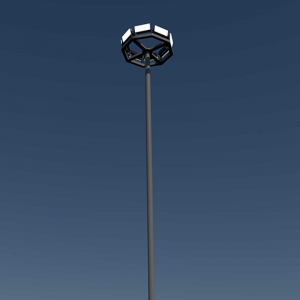

LED High Mast Lighting fixtures differ greatly from the typical street or roadway lights. High Mast Lighting fixtures are regularly mounted at 15 meters to more than 30 meters above ground level and occasionally as high as 30 meters.
Our High Mast Lights is Aluminum housing, DLC Premium Listed; Up to 223,200 lumens; Applications; High-Mast Lighting, Yard Lighting, Area & Storage Lighting; replaces existing up to 3,000Watt Metal Halide and HPS; Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.
LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. ETL Listed and DLC qualified for rebates. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
Waterproof IP65:
1.Anti-dust design,able to be with flushable cleaning
2.IP65 (TUV report available)
3.Can't be immersed into the water
| Model | HZB-HM-R1-100W | HZB-HM-R1-120W | HZB-HM-R1-200W | HZB-HM-R1-240W | |||
| Power | 100W | 120W |
200W |
240W |
|||
| Lumens | 16,000Lm | 18,600Lm | 32,000Lm | 37,800Lm | |||
| Efficency | 160LM/W±3% | 155LM/W±3% | 160LM/W | 155LM/W±3% | |||

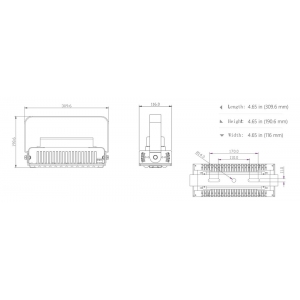

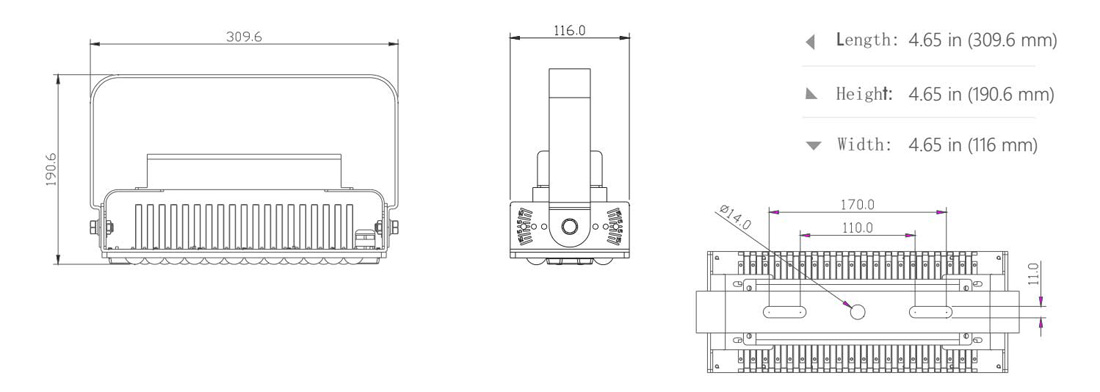

| Dimension: |
297*362*132mm 11.69*14.25*5.19inch |
297*362*132mm 11.69*14.25*5.19inch |
342*362*132mm 13.46*14.25*5.19inch |
342*362*132mm 13.46*14.25*5.19inch |
|||
| Light Source | Lumileds 5050 | Lumileds 5050 | Lumileds 5050 | Lumileds 5050 | |||
| Replacement | 250W HID / Metal Halide | 300W HID / Metal Halide | 400W HID / Metal Halide | 500W HID / Metal Halide | |||
| Color Temp | 3000K/4000K/5000K/5700K | ||||||
| Driver Power: | Meanwell Driver ELG-(150/200/240)-48A | ||||||
| Lifetime | 50,000+ hours | ||||||
| Input Voltage | 100-277VAC,50/60Hz | ||||||
| Power Factor | PF>0.95 | ||||||
| Net weight | |||||||
| Net weight | 2.4kg | 2.7kg | 6.0kg | 6.0kg | |||
| Beam Angle |

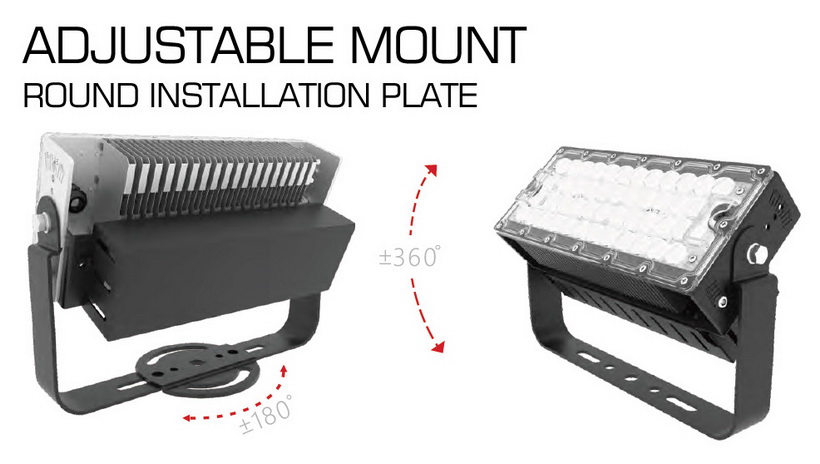

20° / 40° / 60° / 90° 140*100°/milky PC 120° (Module rotatable up & down 15° ) |
||||||
| IP Rating | IP65 (TUV report available) | ||||||
| Housing | Marine grade aluminum | ||||||
| Certification |
TUV CE RoHS SAA CB LCP Lm79 Lm80 ISTMT Salt spray test |
||||||
| Warranty | 5 Years factory warranty | ||||||
