Product Name:
HZB-UFO-160W-C3Model No.:
HZB-UFO-160W-C3
Product Abstract:
This UFO LED High Bay Lights C3 Type are Streamline design appearance and high quality high Luminous Efficacy 125lm - 150lm/w from 60W 100W 160W 200W to 240W, 160 Watt UFO LED High Bay Light, 130lm/w smd OSRAM LED chip, 20,500 Lumens, Lifetime 50,000+ hours,350-450W HID/HPS Equivalent,Microwave Motion,daylight sensor available, Meanwell Driver, DLC Listed,5 Years Warranty.
Overview:
This UFO LED High Bay Lights C3 Type are Streamline design appearance and high quality high Luminous Efficacy 125lm - 150lm/w from 60W 100W 160W 200W to 240W, 160 Watt UFO LED High Bay Light, 130lm/w smd OSRAM LED chip, 20,500 Lumens, Lifetime 50,000+ hours,350-450W HID/HPS Equivalent,Microwave Motion,daylight sensor available, Meanwell Driver, DLC Listed,5 Years Warranty.

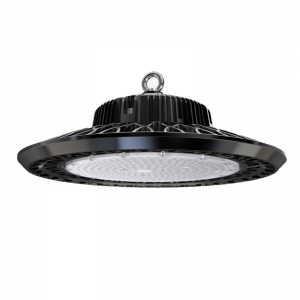

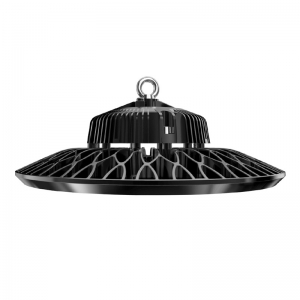

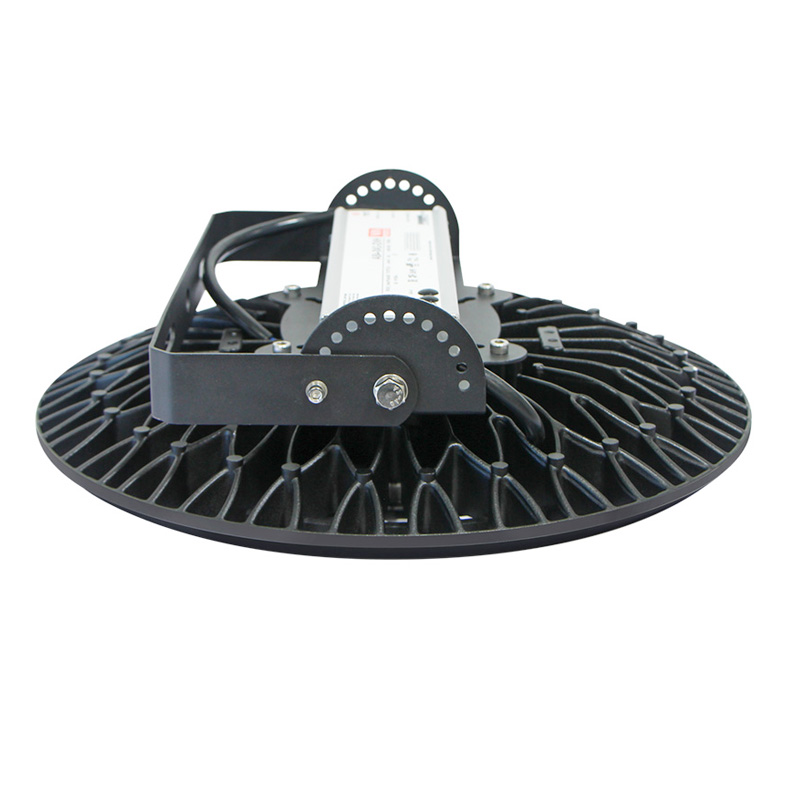

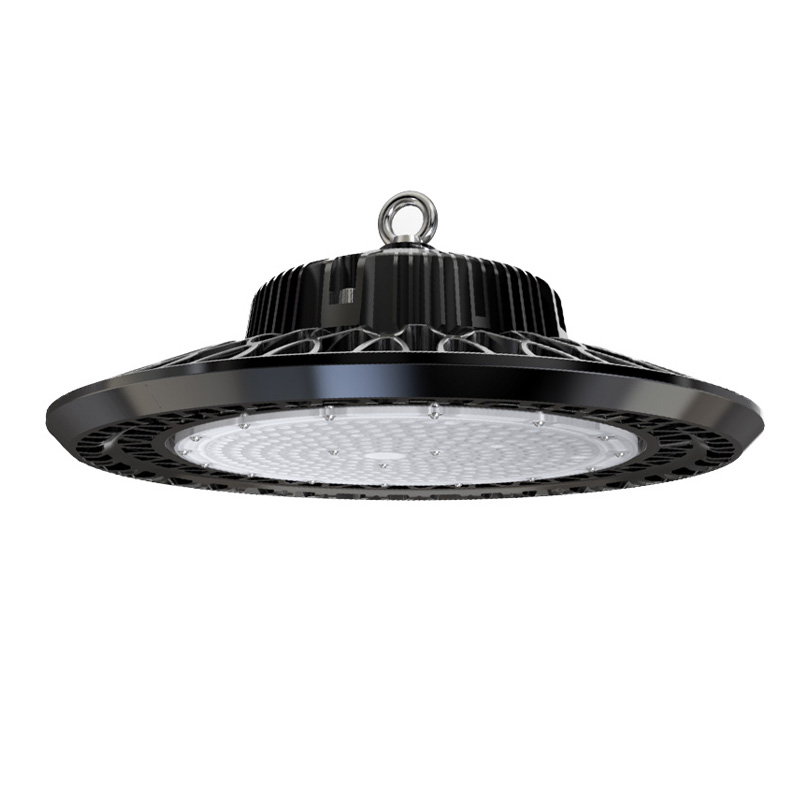

UFO LED High Bay Lights C3 Type
60W 100W 160W 200W 240W
DLC Premium CE RoHS Lm79 listed
With most suitable beam angle 45° 60° 90° and 120°

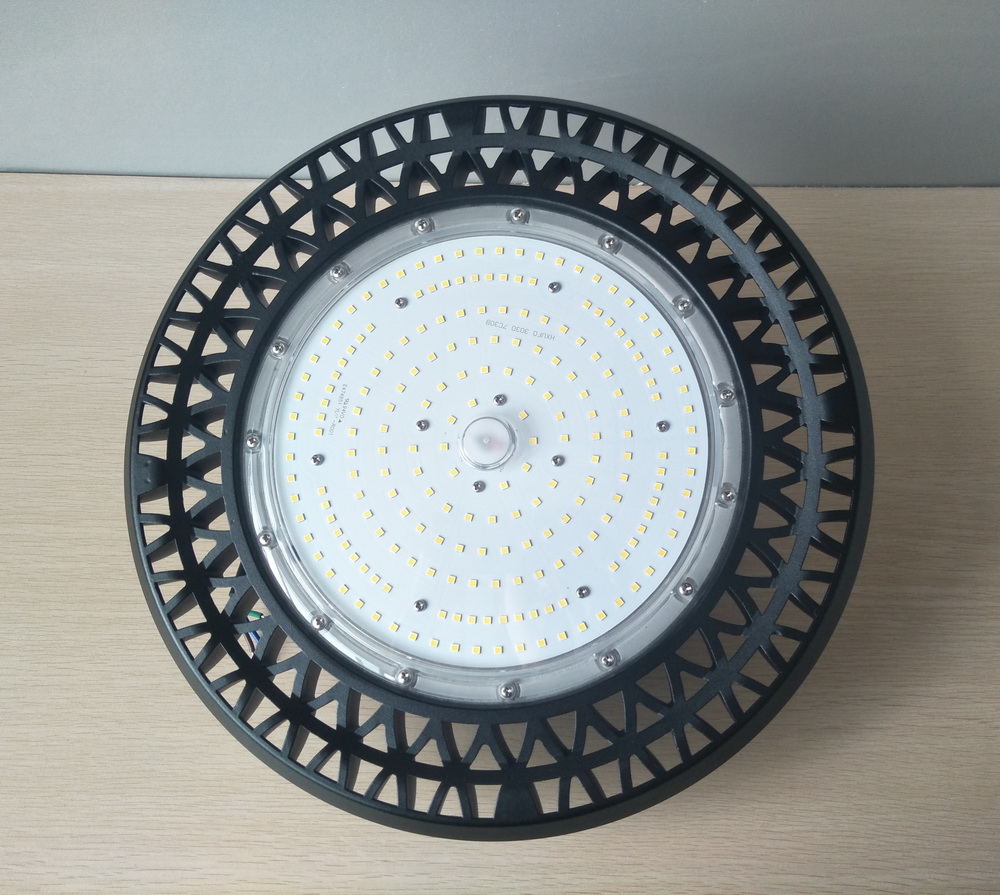

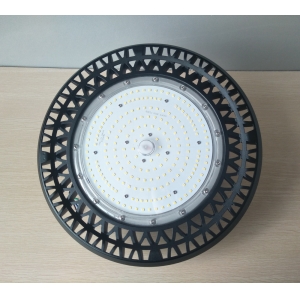

Original Osram SMD LED Chip which up to 130Lm/W to 160Lm/W
Streamline design appearance, super thin/easy installation, less weight to save your shipping cost, extremly high brightness, final finished product's luminous can reach 125~150lm/w.
Features:
• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac
• Protections: Short circuit / Over current / Over temperature.

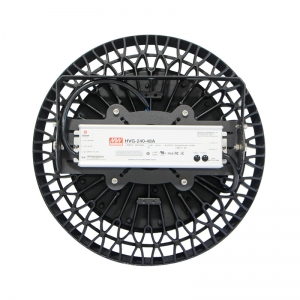

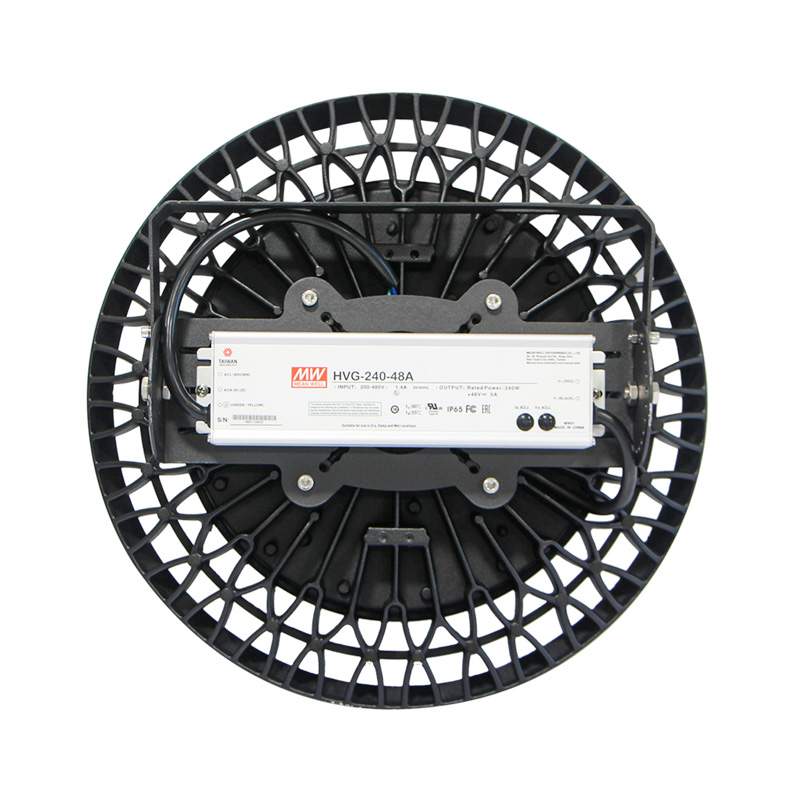

• Meanwell driver and Osram led chip.
• 45 / 60 / 90 /120 degree option.
• Clear or diffused cover.
Advantages:
1.Lighting- Cool White /Warm White
2.High quality Lamp Housing for better environmental protection
3.Efficiency of driver 85%
4.Energy saving
5.Junction temperature Less then 65°C

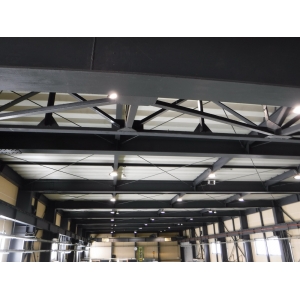

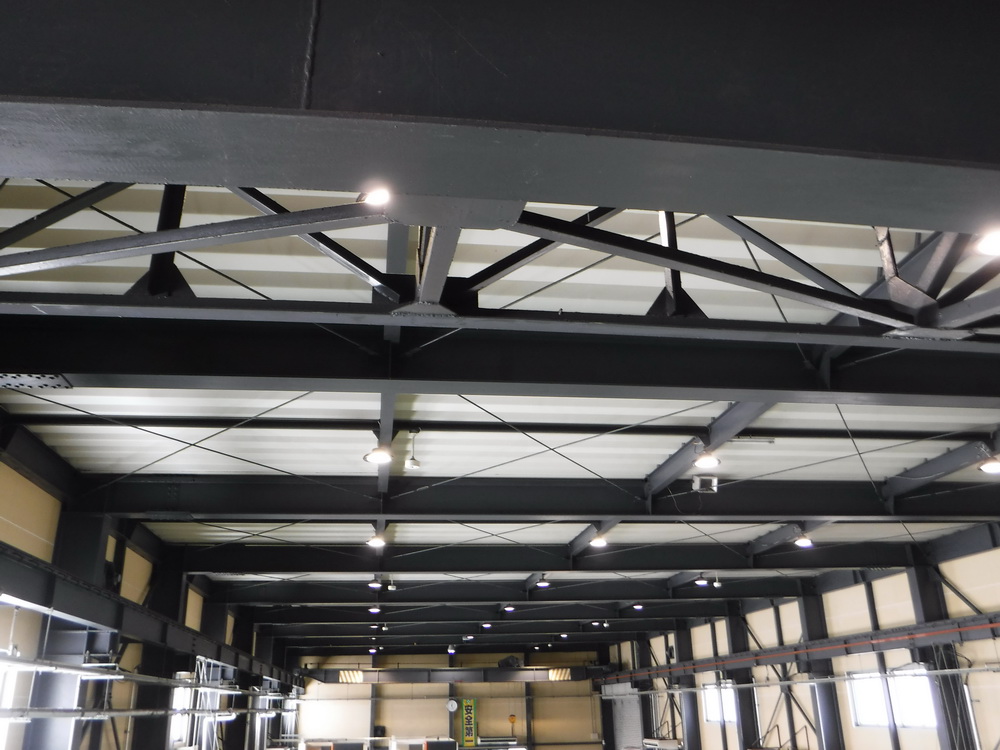

6.LED industrial light applications in buildings, factory, warehouse, large
7.supermarket, sculpture, stadiums, squares, docks etc
8.Housing/Trim material: Aluminum Die cast
9.Instant Lighting on with no flickering
10.Health protection: no UV/IR, more comfortable for vision
Applications:
Perfect for Industrial Usage, Warehouse & Supermarkets, Workshop's, Factories, Warehouses, Highway, Тoll Stations, Gas Stations, Malls, Exhibition Halls, Stadium's & other vast areas
| Model | HZB-UFO-60W-C3 | HZB-UFO-100W-C3 | HZB-UFO-160W-C3 | HZB-UFO-200W-C3 | HZB-UFO-240W-C3 | ||
| Power | 60W | 100W | 160W |
200W |
240W |
||
| Lumens (130lm/w) | 7,800lm | 13,000lm | 20,500lm | 26,000lm | 31,000lm | ||

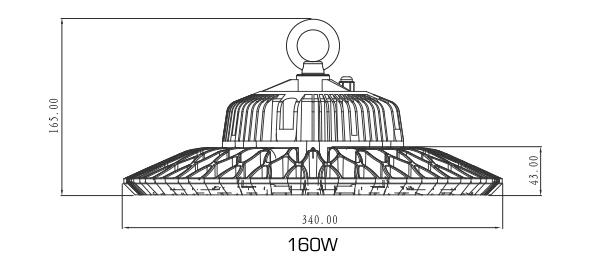

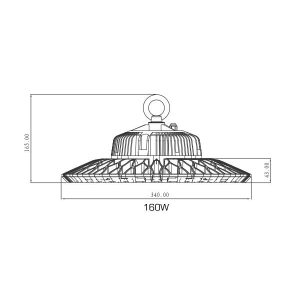

| Diameter*Height |
Dia 235mm (9.25in) |
Dia 280mm (11.02in) |
Dia 340mm (13.38in) |
Dia 400mm (15.74in) |
Dia 400mm (15.74in) |
||
| Light Source | OSRAM | OSRAM | OSRAM | OSRAM | OSRAM | ||
| Replacement | 150-250W HID / Metal Halide | 250-350W HID / Metal Halide | 350-450W HID / Metal Halide | 450-600W HID / Metal Halide | 600-750W HID / Metal Halide | ||
| Color Temp | 3000K/4000K/5000K/5700K/6500K | ||||||
| Operation Temp | -40°- 50°C | ||||||
| Lifetime | 50,000+ hours | ||||||
| Input Voltage | 100-277VAC,50/60Hz | ||||||
| Power Factor | PF>0.95 | ||||||
| Dimming Options | Non-dimmable/dimmable | ||||||
| Beam Angle | 45° / 60° / 90° / 120° Degree or Clear / Diffused Cover | ||||||
| IP Rating | IP65 (TUV report available) | ||||||
| Certification | DLC CE RoHS LM79 listed | ||||||
| Warranty | 5 years factory warranty | ||||||
