Overview:

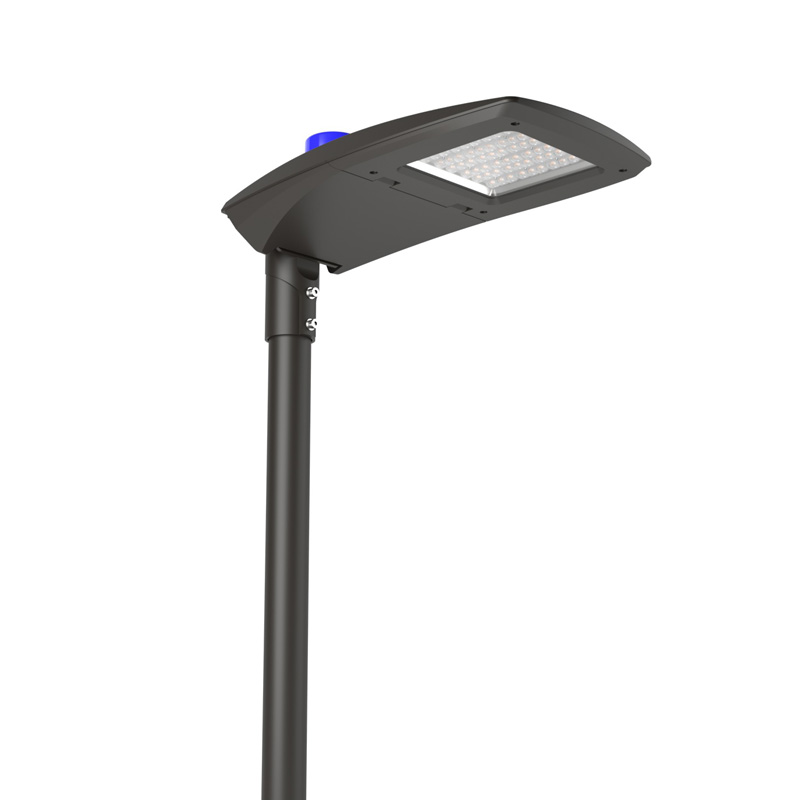

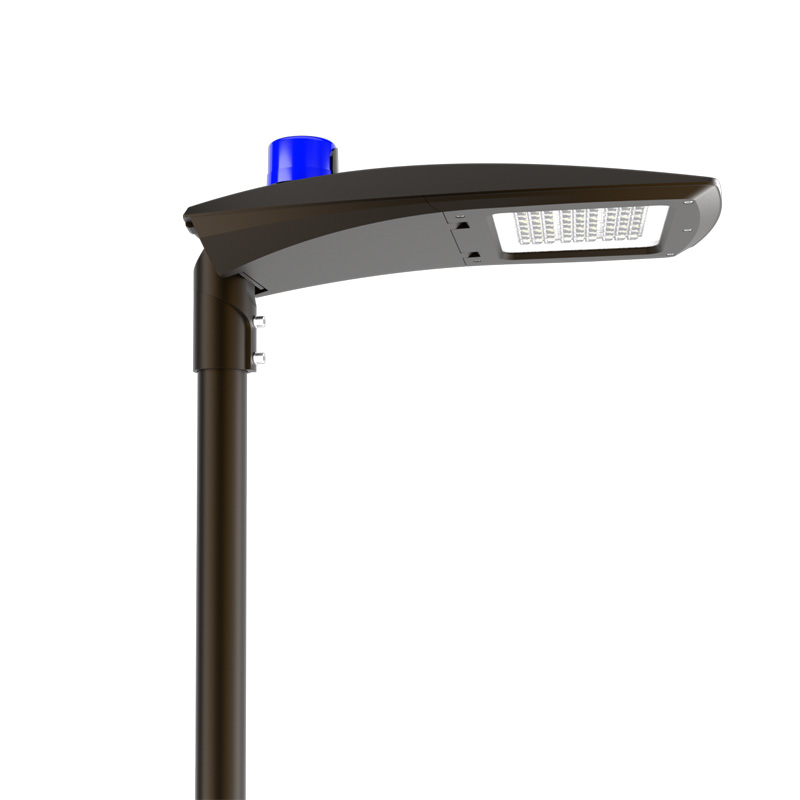

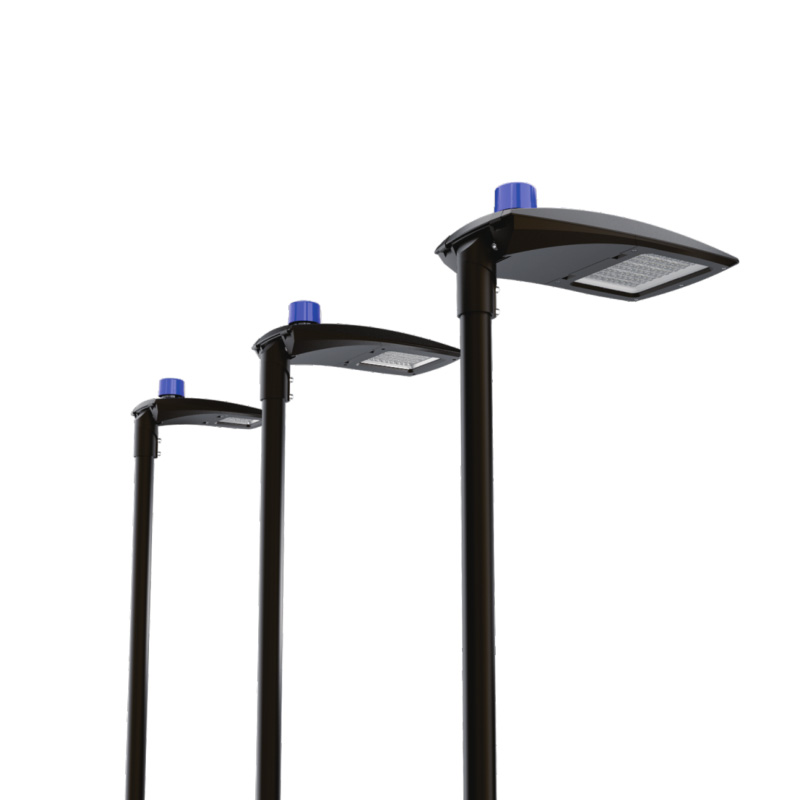

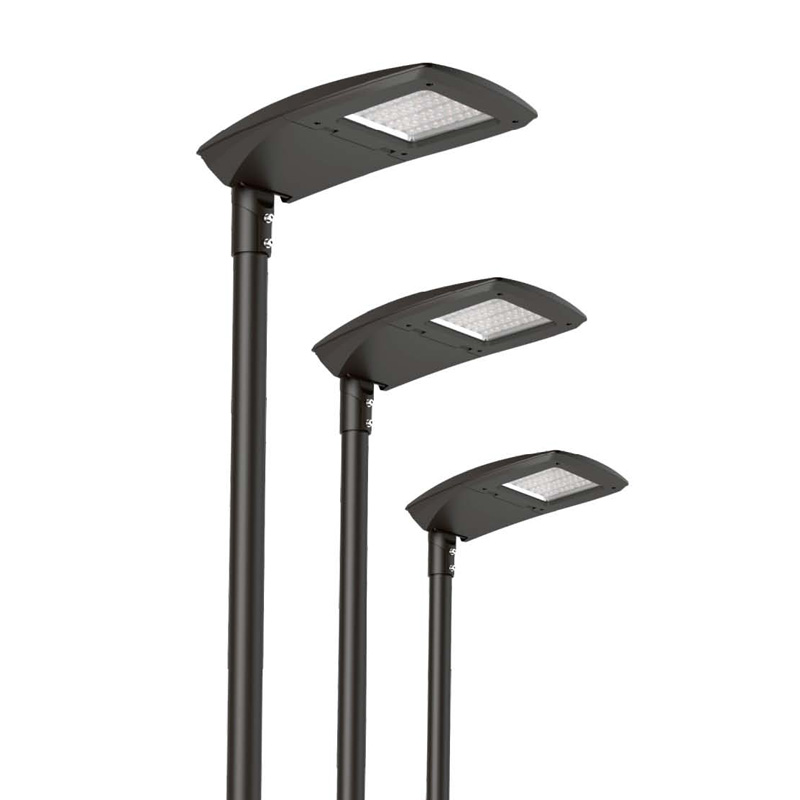

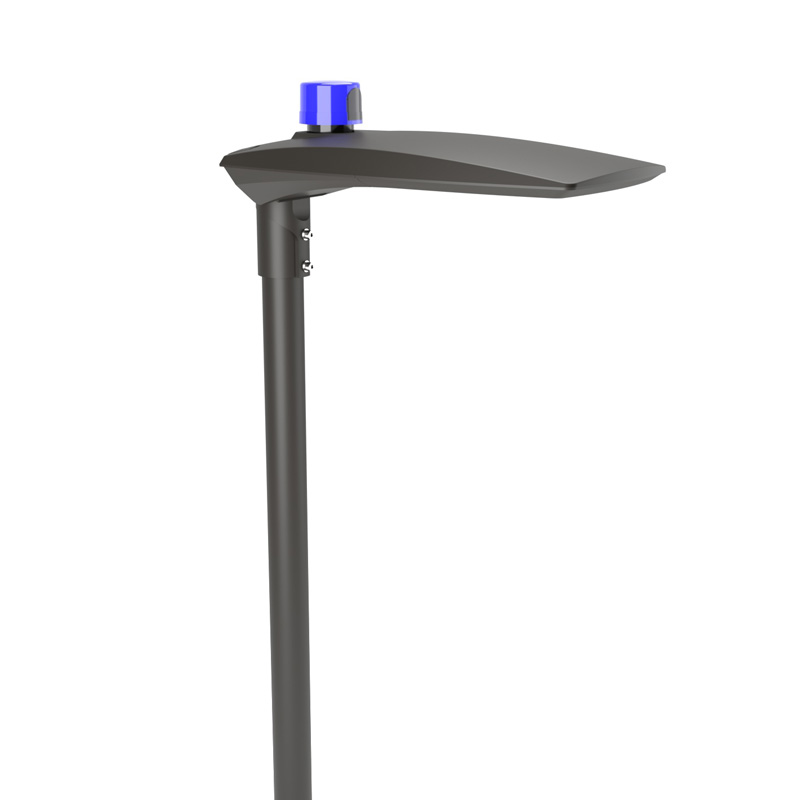

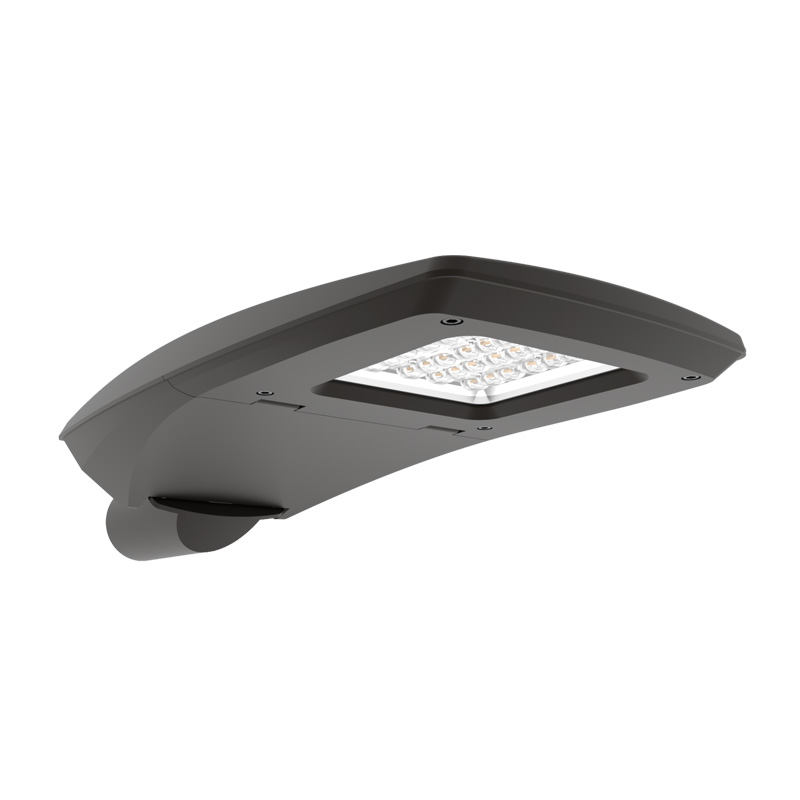

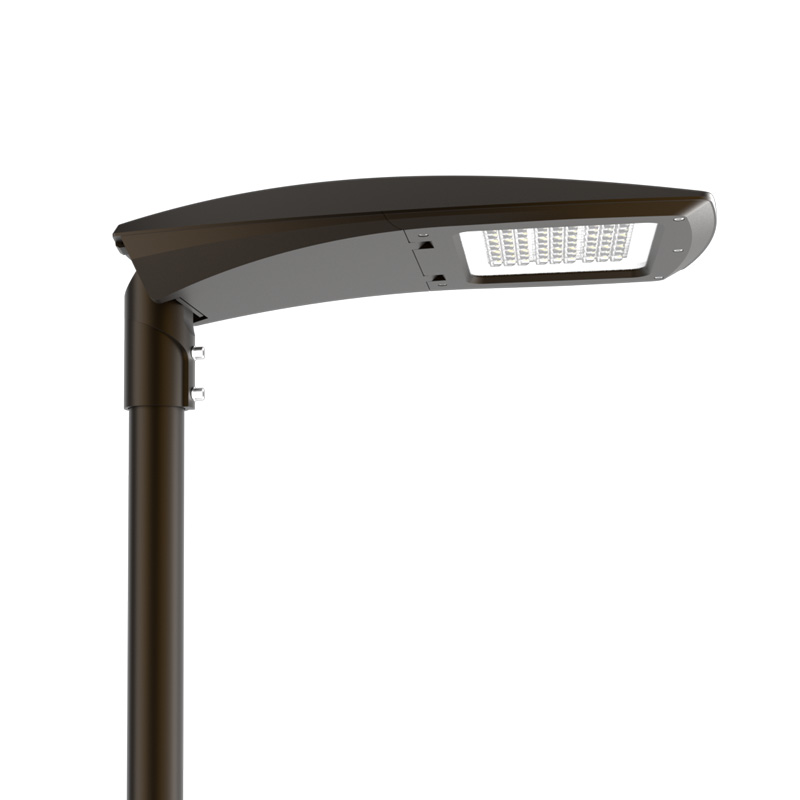

180 Watt Led Street Light, AC100-277V IP66, 23400lm 450-500W HPS Replacement, LED Roadway Lighting High Luminous is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.



SEALS series LED Roadway Street Lights is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.

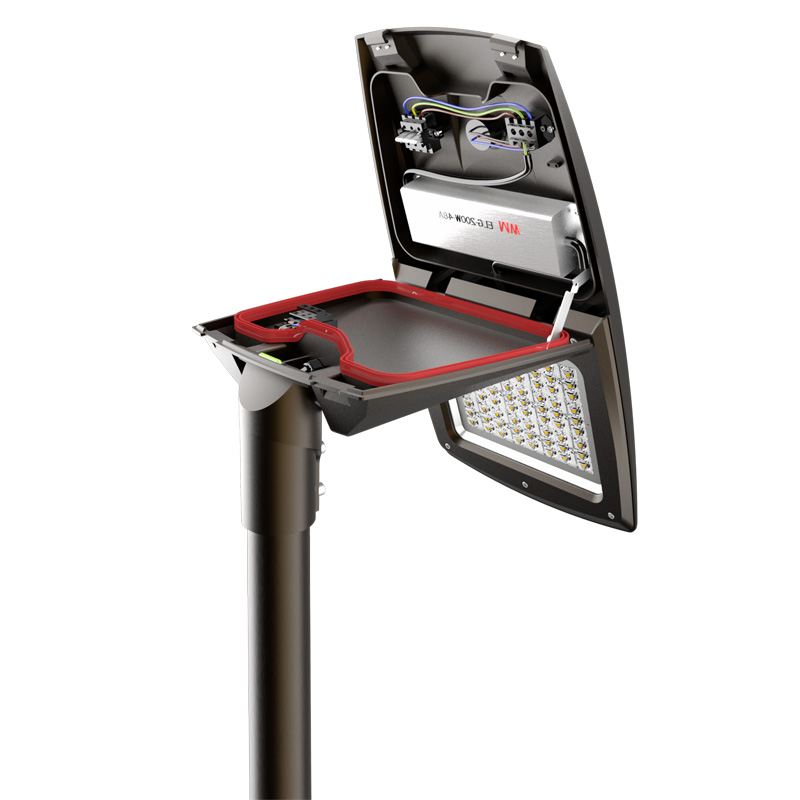

Powered by high-power Philips LED Chips & Meanwell Driver to deliver significant efficiency benefits, SEALS series provides top-level performance, capable of saving in excess of 70% in energy consumption. Finned heat sink design enhances the heat dissipation performance in a smart way to extend the luminaire lifespan.



Many local authorities today have an outdated public lighting installation that urgently needs to be replaced, yet have only a limited budget available. We have the answer to their needs. With its compact design and modern LED architecture, SEALS series LED Roadway Street Light is a versatile, cost-effective luminaire that fulfils basic functional road lighting requirements. It is made of high-quality components that ensure long lifetime and low maintenance cost.



Benefits:
• Cost-effective LED alternative to conventional street lights
• Easy to install
• Long lifetime and low maintenance cost



Features:
• Basic, Compact design & High performance design
• High-quality components,Complete illumination across the entire roadway
• Wide choice of optics for increased application efficiency
• No external reflectors required, Low weight
• Excellent for main roads, collecting roads, and roundabouts
• Dramatic energy savings, Safe for industrial applications



Application:
• Suitable for roadway & car park area
• Traffic routes
• Residential areas

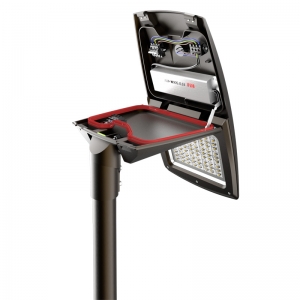

Mounting Options:



Product Specifications:

Item  No.	HZB-LD-SL-120W	HZB-LD-SL-150W	HZB-LD-SL-180W/200W
Efficency	130LM/W
Wattage	120W	150W	180W / 200W
Luminous Flux	15,600 lm	19,500 lm	23,400 lm  /  26,000 lm
Input Volt	100-277VAC	100-277VAC	100-277VAC
Power Factor	>0.95 / 230VAC	>0.95 / 230VAC	>0.95 / 230VAC
Beam Angle	Type2,Type3	Type2,Type3	Type2,Type3
Chip Brand	Lumileds 3030	Lumileds 3030	Lumileds 3030
Lifespan	> 50,000 hours
CRI	>70
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
SPD	12KV
Material composition(body)	ADC-12 Aluminium Alloy (<0.1% copper conten)
Material composition(optics)	Polycarbonate
Mounting/Bracket Type	Post-top position, Side-entry position
IP Rating	IP66

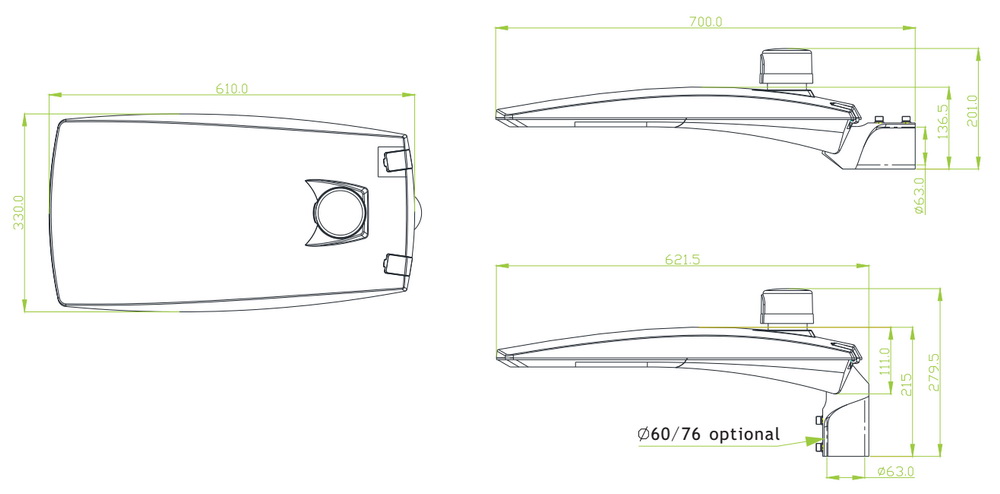

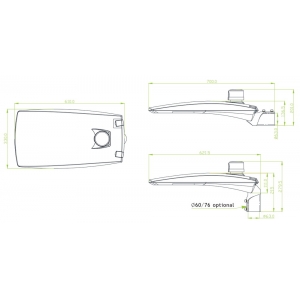

Size(mm)	560*305*101 (22.07*12.00*3.97in)	560*305*101 (22.07*12.00*3.97in)	610*330*111 (24.01*12.99*4.37in)
Net Weigh(kg)	7.50	7.50	8.50
Package Size(mm)	73.4 x 36 x 17cm  (28.9 x 14.17 x 6.69 in)		78.9 x 40 x 17.6cm  (30.06 x 15.75 x 6.93 in)
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	8.50kg (Standard)	8.50kg (Standard)	9.50kg (Standard)

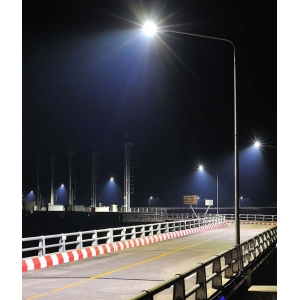

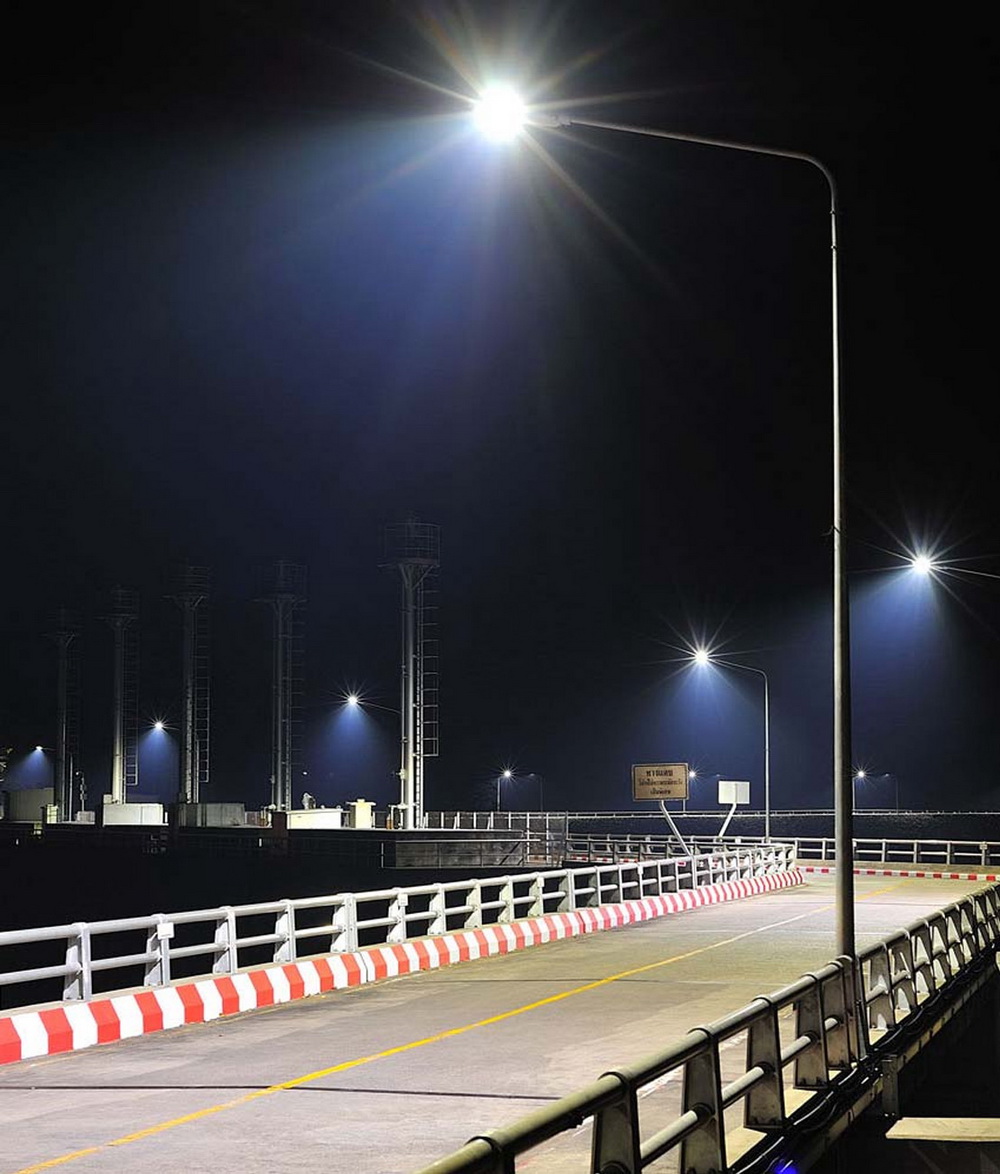

SEALS series LED Roadway Street Lighting Scene:
