Honeycomb heat dissipation design Multi-module splicing Ra90 L70 black/silver gray 1800W Outdoor LED Area Light 180Lm/W 324000LM

Our 1800W high efficiency LED sport lighting is designed to replace 3000W metal halides and HPS sport flood lamps. We have authoritative certifications such as ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.

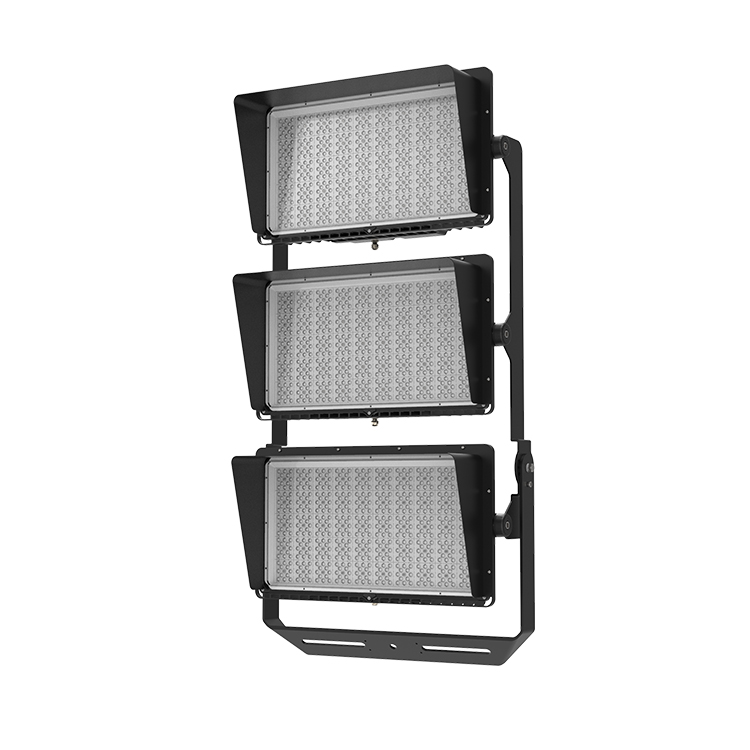

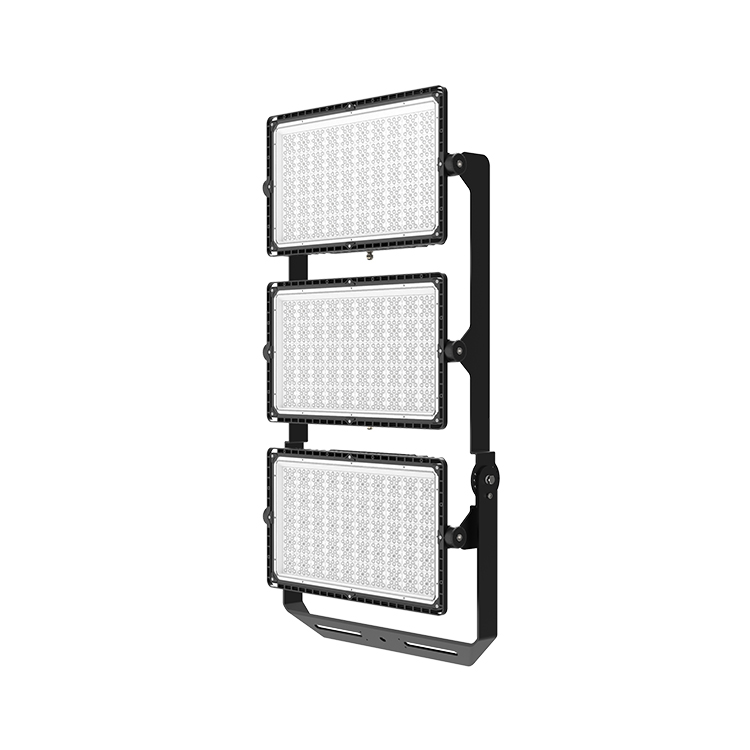

The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.

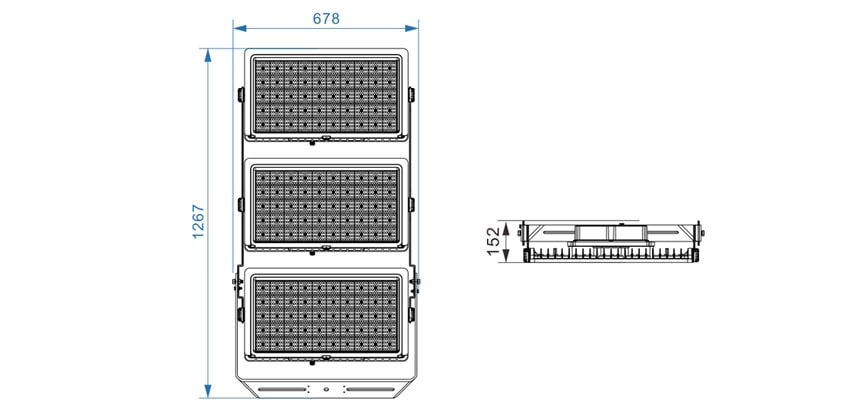

Size

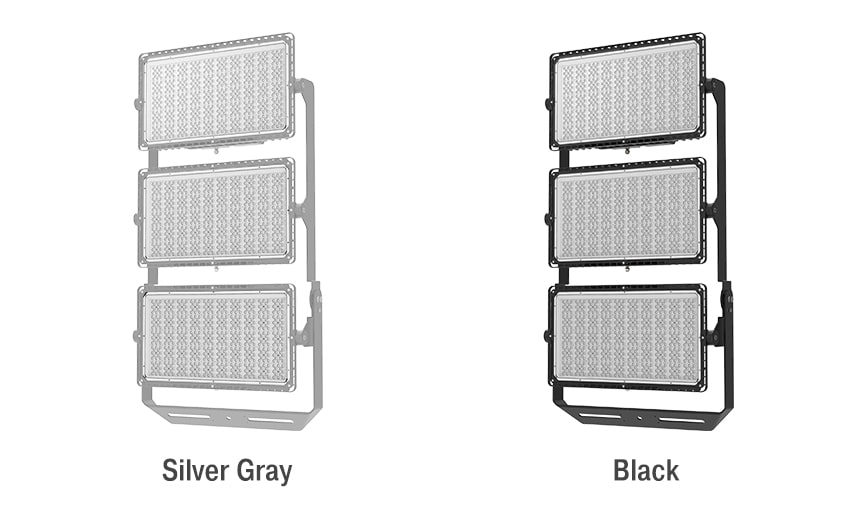

Optional Colors

The housing is available in black and silver gray.

Specifications

Model No.	HM‐1800W‐Ultra	HM‐1800W‐Ultra
Power Consumption	1800W	1800W
Light Source	Lumileds 3030	Lumileds 5050
Luminous Flux(±5%)	270,000Lm[150(±3%) Lm/W]	324,000[180(±3%) LM/W
Driver Type	Meanwell 6*ELGC-300-H-A	Meanwell 6*ELGC-300-H-A
Luminaire Net Weight	48kg	48kg
Correlated Color Temperature	3000K, 4000K, 5000K, 5700K, 6500K
Color Rendering Index	Ra70 (Ra80, Ra90 optional)
Input Voltage	100-277 VAC
Power Factor	>0.95
IP&IK Rating	IP66 / IK08
Life Time	L70/B10 >50,000hours
Warranty	5 Years / 7 years extended warranty available
Dimmable	Dimmable and Non-dimmable
Beam Angle	15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
Certification	ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test.

Why Chooes 1800W 324000lm 180lm/w LED Stadium Sports Lights Ultra Series?

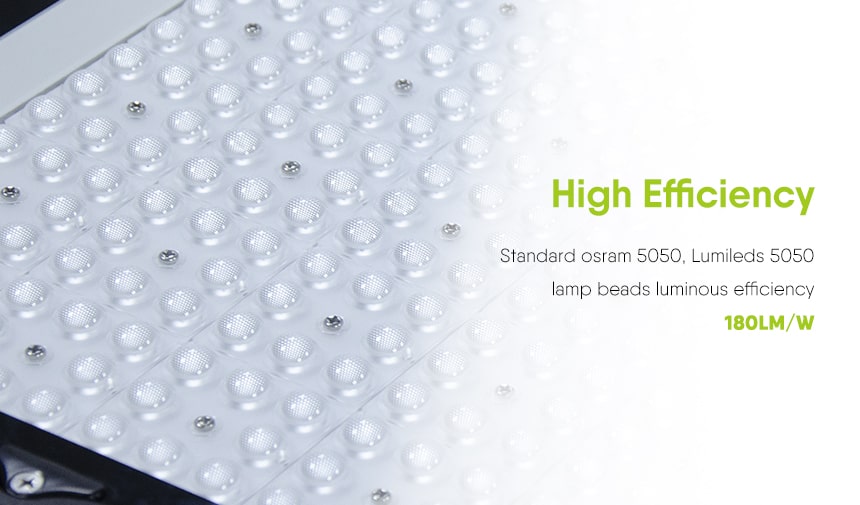

1.High Lumens Efficiency

Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 180lm/W.

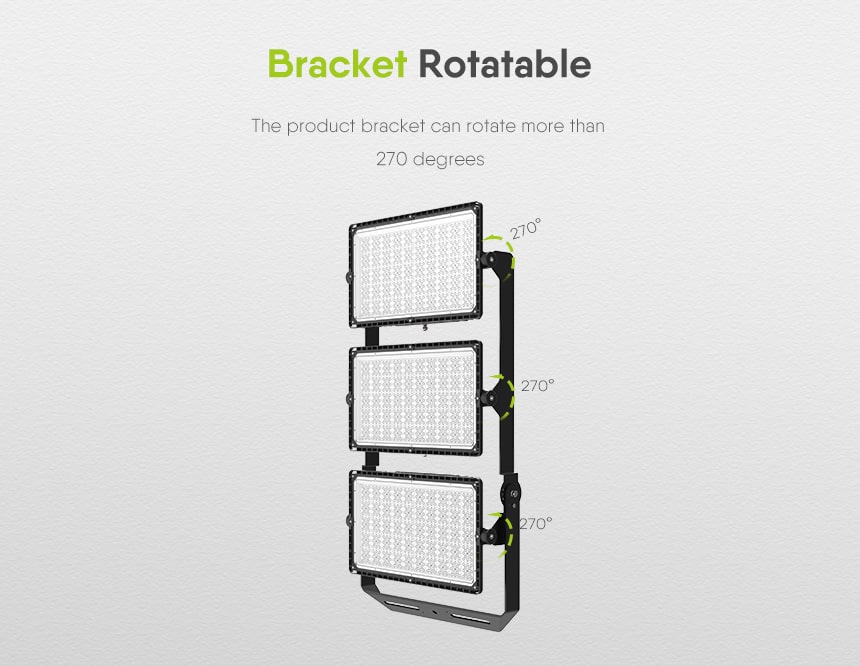

2.Bracket Rotatable

The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.

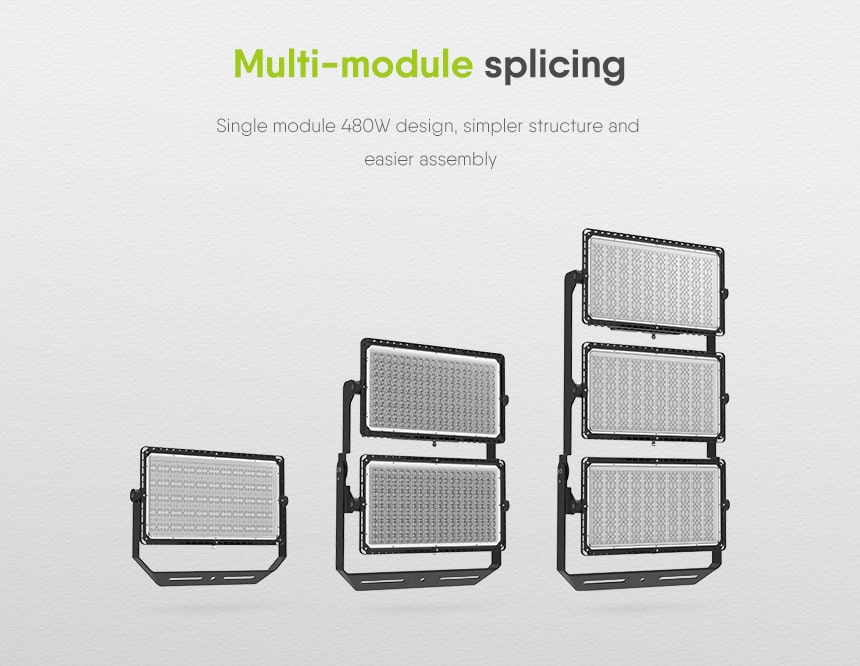

3.Multi-module splicing

Single module 480w design, simpler structure and easier assembly.

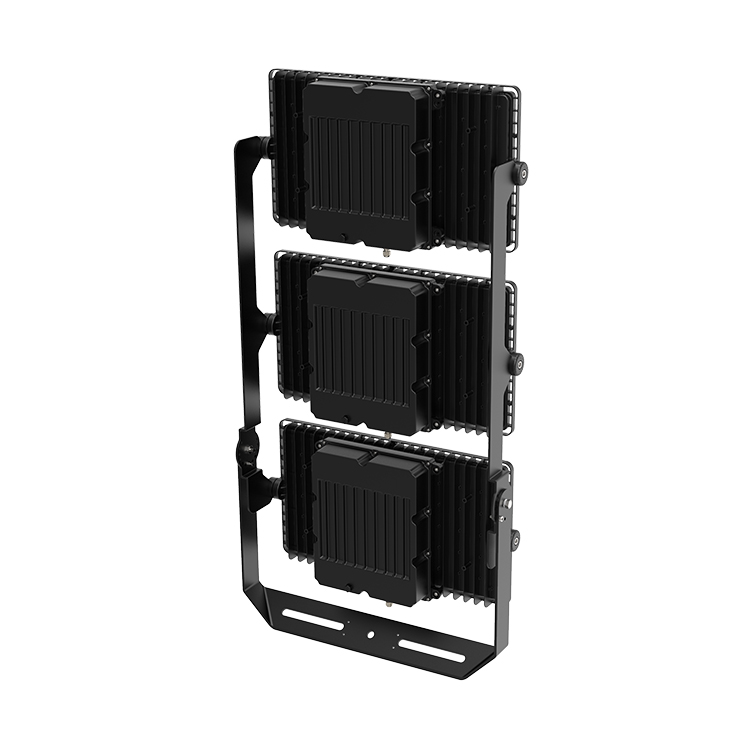

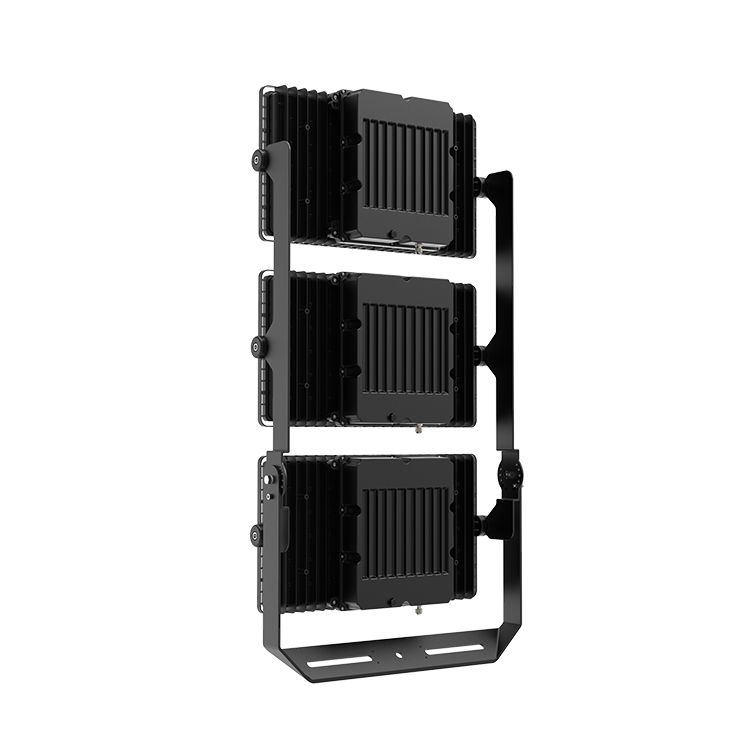

4.Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.



The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.





5.Waterproof IP66 & IK08

Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.





Installation



Beam Angle

Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

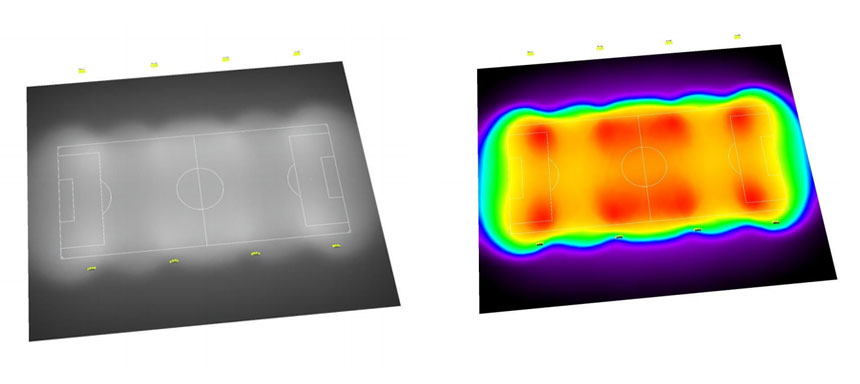

LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.

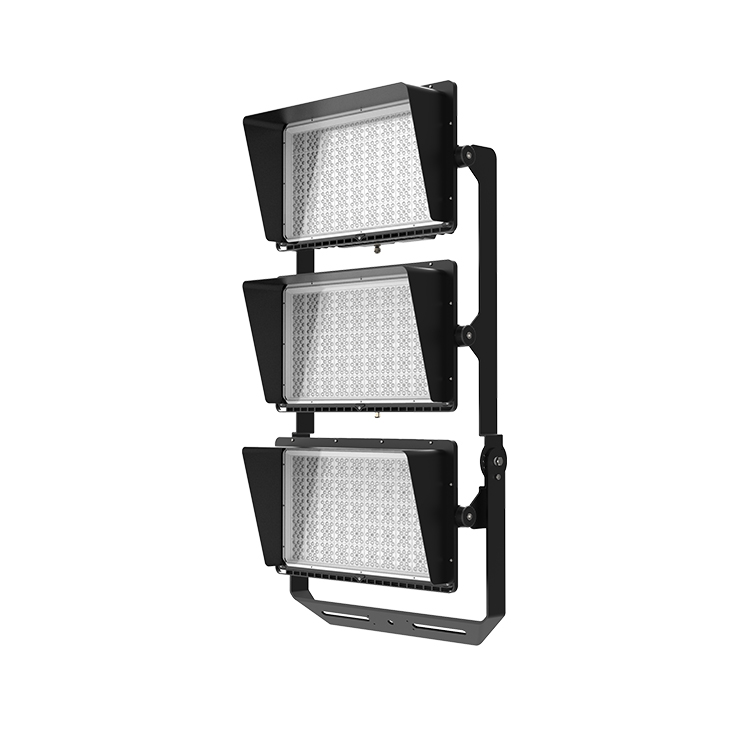

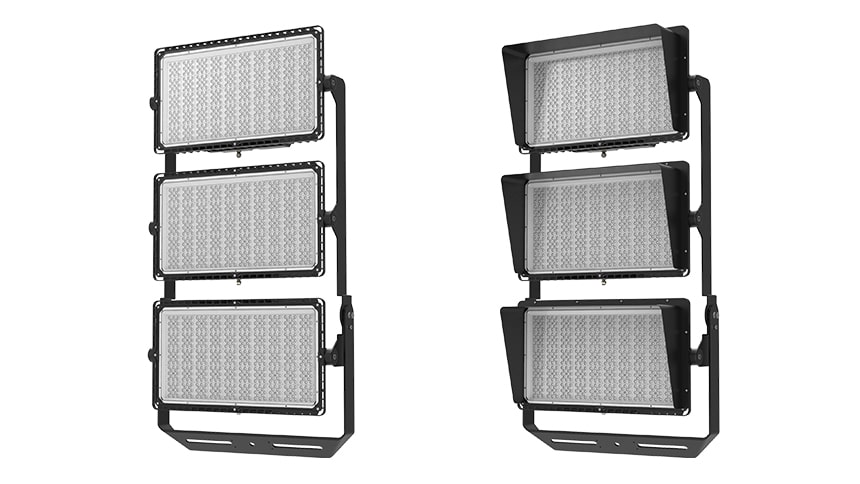

Anti-glare Cover

Optional anti-glare cover

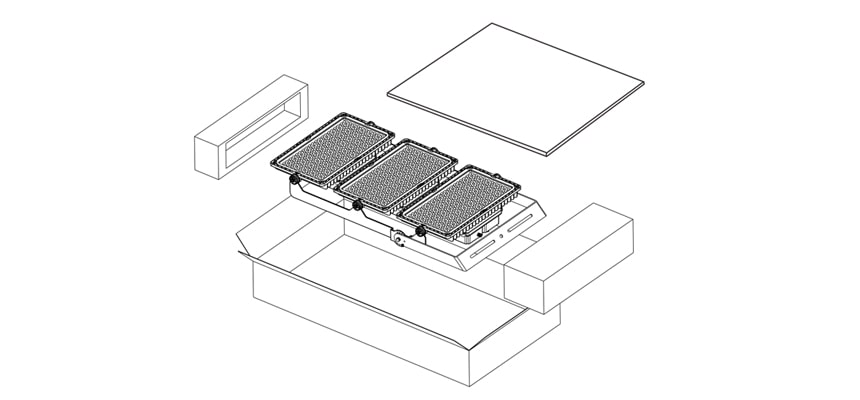

Package details

1800W: 138*75*23cm

1pc/ctn, GW: 49kg



What can we do for you?

We can provide you with: 1.High quality LED Light; 2.Dlalux Lighting Design; 3.5 years Warranty;

Please feel free to contact us if there is any problem during this period;





Since 2009, we have started the lighting business and have served thousands of customers. We are a professional manufacturer and supplier of LED Stadium Area Flood lights. Our products are sold all over the world and are well received by customers.



Compared with traditional plant lights, Ultra Series LED stadium lights have higher efficiency, higher uniformity and lighting quality, and longer service life. Replace your old lamps, you can get more than 75% off monthly lighting costs! contact us whenever necessary!
