240W LED Stadium Light Fixtures is designed to replace 400W to 500W Metal Halide and HPS stadium lights. Supply perfect 240W 38400Lm LED stadium Lights high efficiency lighting solution for any sport application.



DRAGONFLY SERIES

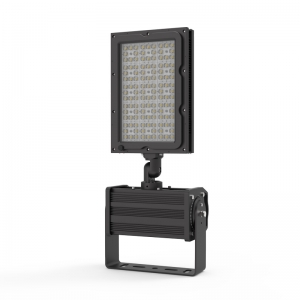

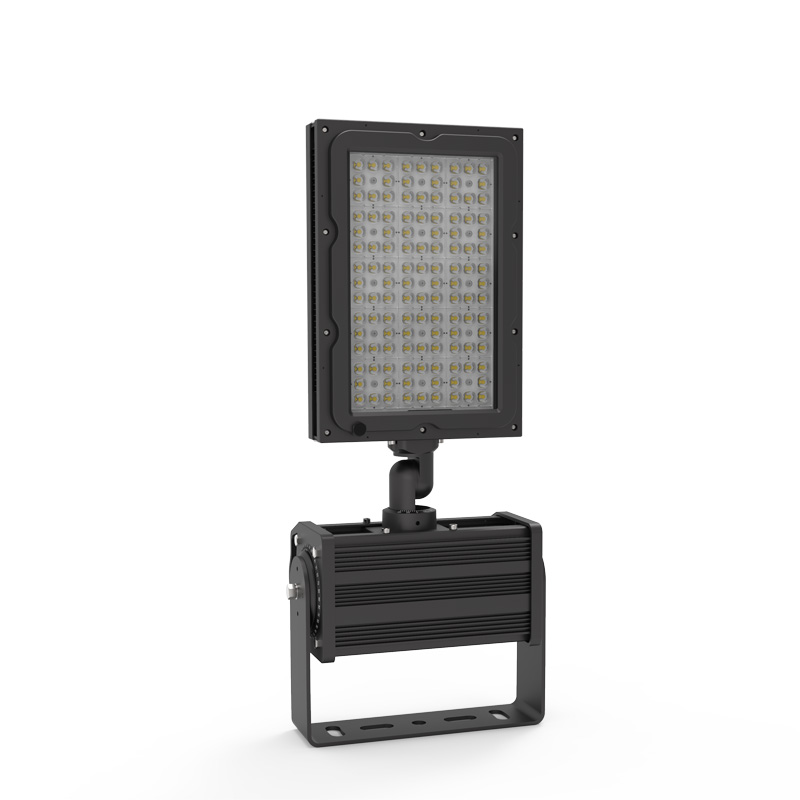

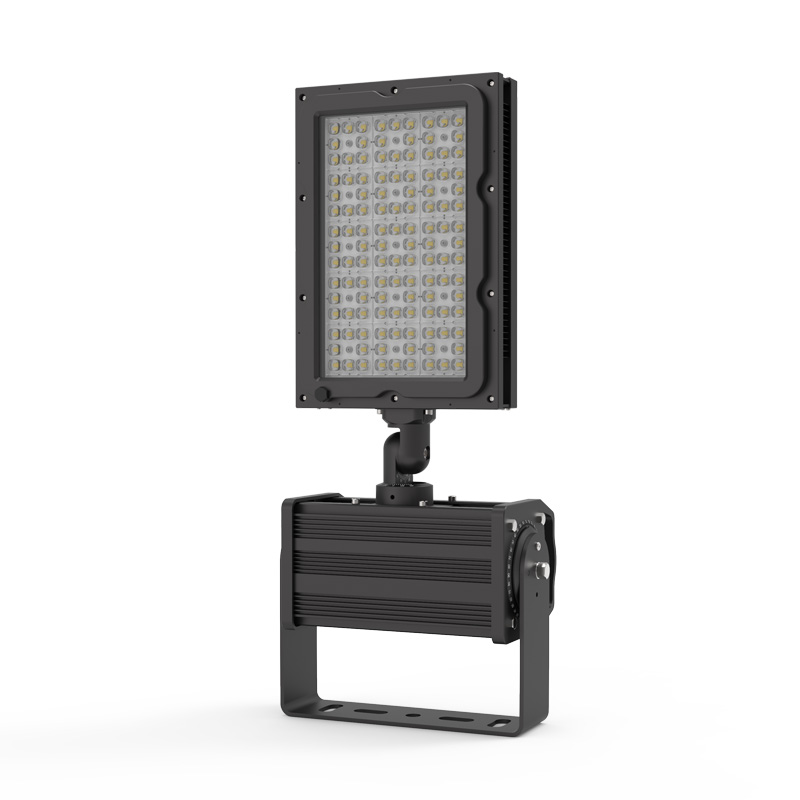

LED Sports Floodlighting 240W
High performance lighting ideal for sports fields and stadiums,Each module can be adjustable with the marking scale to adjust the angle accurately,which help achieve the perfect uniformity illumination.



Features:

Light Weight:
The advantage of aluminum fin heat dissipation is that the weight is reduced by about 30% to 40%.This is an advantage compared to traditional die-cast aluminum lamps for sports field lighting installations. To reduce the loading weight of the pole and to reduce the workload of the installer.

Floded Fin:
This allows you to improve thermal performance while adding a minimal amount of weight.Folded Fin heatsinks use a continuous strip of aluminum sheet metal affixed to an aluminum base plate.
The advantage of Folded Fin as opposed to extruded heatsinks is higher aspect ratios and thinner fins, thus increasing surface area and lowering thermal resistance.
The stamping riveting process is not welded so that it make the auminum fins fit more closely with the aluminum board, creating more surface touching area from led chips heat to the heat sink and contributing to faster heat dissipation.

Surface Treatments:
The surface of the heat sink is environmentally friendly and recyclable by powder electrostatic spraying process, which is resistant to corrosion, oxidation and aging.

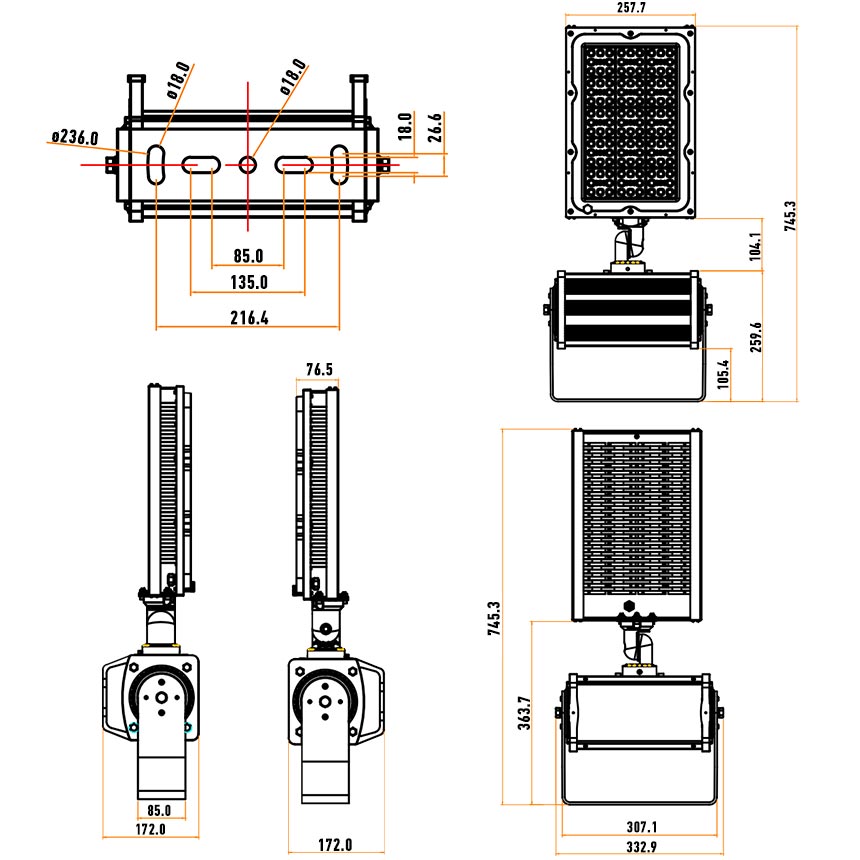

Dimension



Specification

Model	B240W-LV	IK & IP Rating	IK08  IP66
Wattage	240 Watt	Wind rating	51.0-56.0m/s
Lumen	38400lm	Beam Angle	10°/20°/40°/60°/90°/10°(P50-P8)/135*60°(P50)/97*47°(TypeIV)
Efficiency	160Lm/W	Lifespan	>50000 hours
Light Source	Lumileds 5050	Dimension	29.34''*13.1''*6.77''
Input Volt	100-277VAC	Module 360° rotatable	Marine grade aluminum+Tempered glass + PMMA lens+316 Stainless Steel Brackets
Driver	Meanwell XLG-240-H-A	Replacement	400-500W HPS MH
CCT	3000K, 4000K, 5000K, 5700K	Net weight	8.9kg



Withstand Wind

Withstand hurricanes of 51.0-56.0m/s.

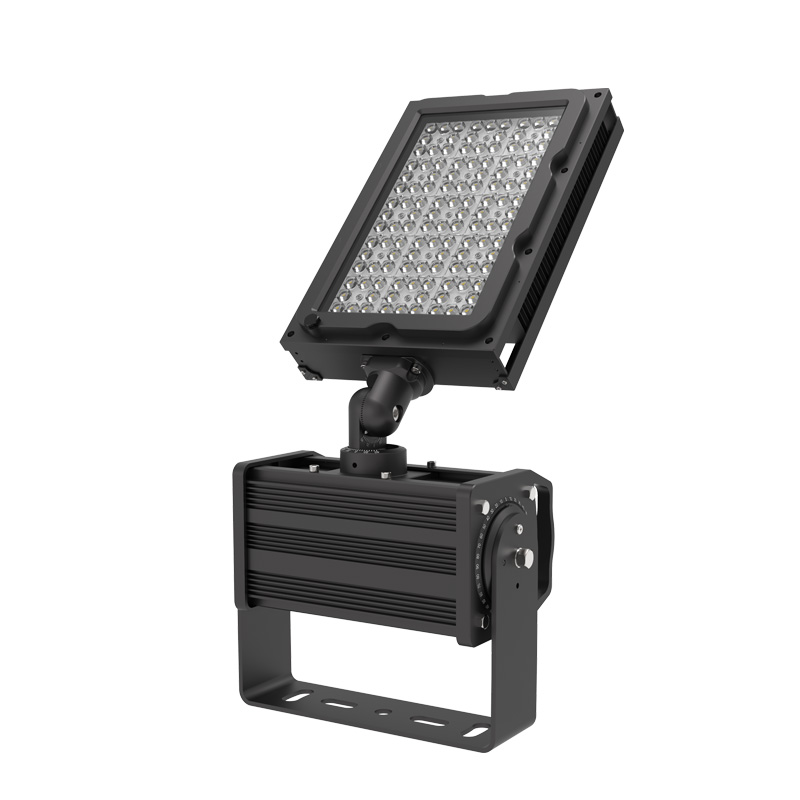

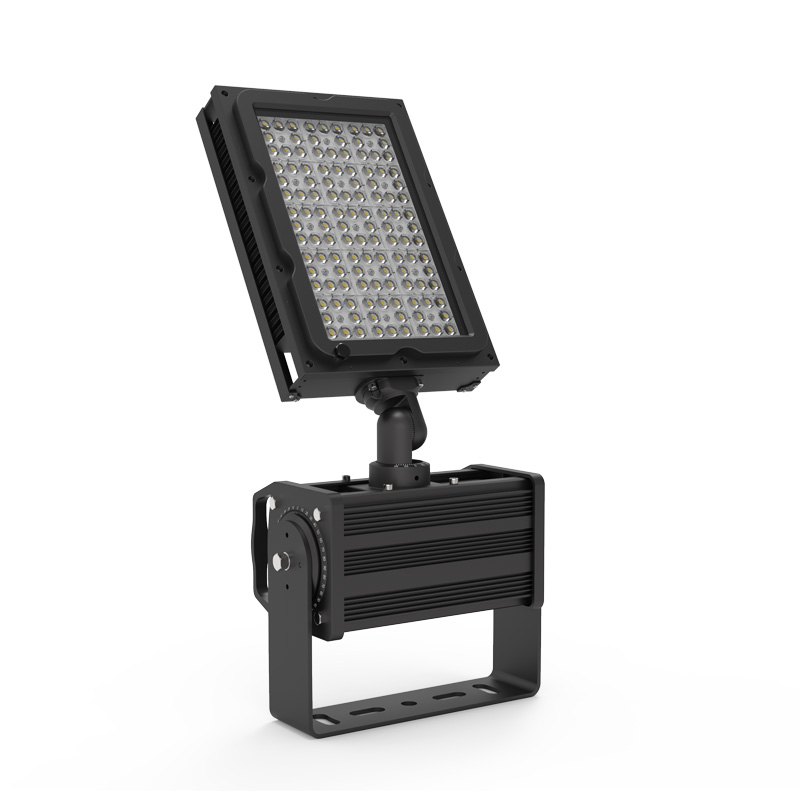

Rotatable Module

1. Rotating scale on the luminaire for customers to adjust the angle more accurately.

2. Module rotatable up & down & back and front up to 360 degree.

Most manufacturers design the lighting fixtures implementing lens and reflector technologies for desired light distribution.These existing LED lighting methods according to the characteristics of the light will spread to a wider area and will also fall on the area that does not need the light and may lead to light pollution which is inefficient in terms of energy savings. Dragonfly LED Football filed light technology prevents light pollution and emits the light only to the target area, This is advanced technology to control luminance with low power consumption to providea simillar level of luminous flux and also to maximize energy savings.

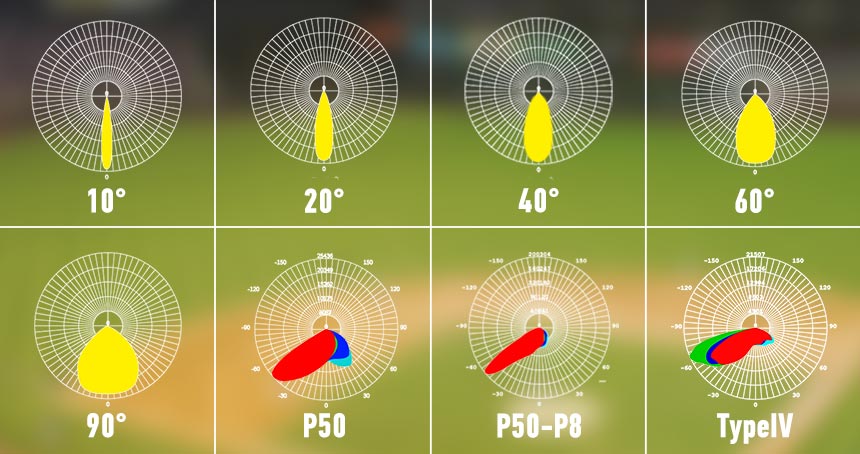

Beam Angle

10 / 20 / 40/ 60 / 90 degree/ 10 degree(P50-P8)/ 135*60 degree(P50)/97*47 degree(TypeIV)

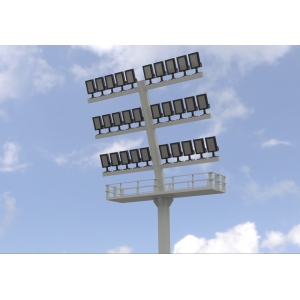

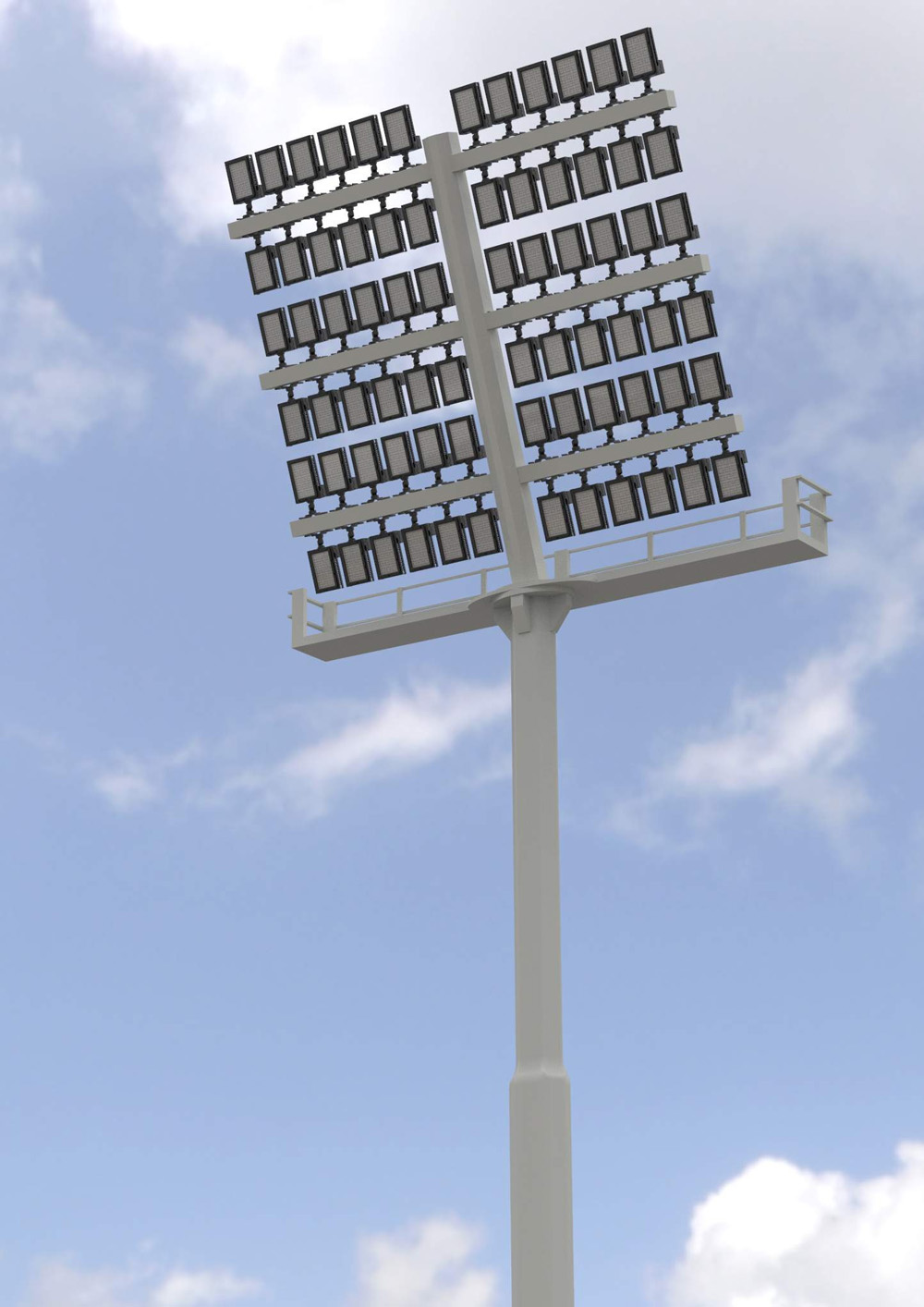

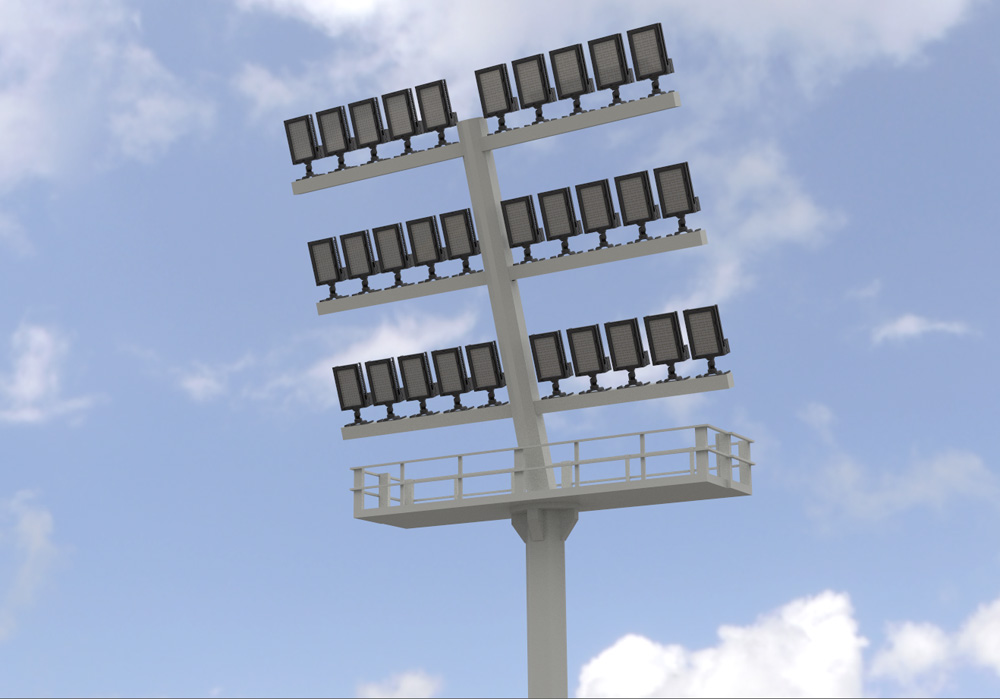

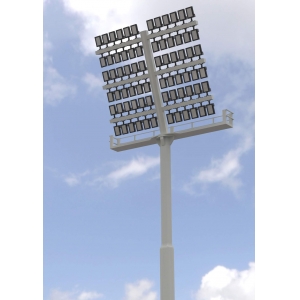

The installation height of the luminaire is usually between 30 and 50 meters, so the traditional floodlighting will have too much light loss. And our LED stadium flood light uses high quality Lumiled 5050 chips and lenses to select the desired illumination angle. The direction of the beam is concentrated to achieve precise illumination of the light and reduce light loss.

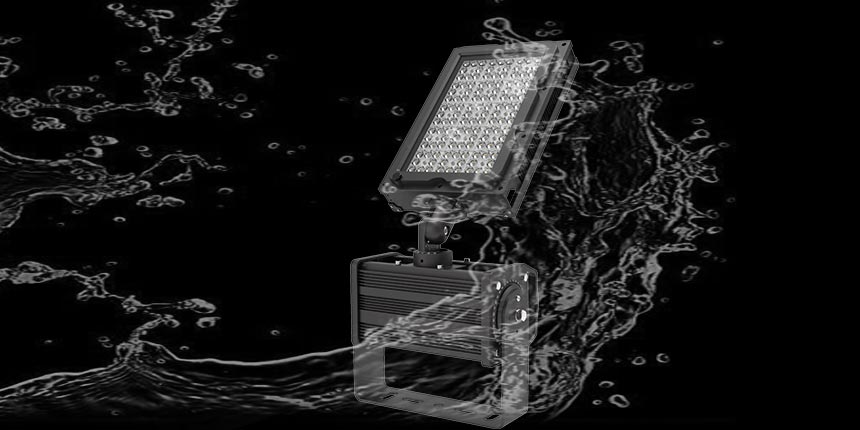

Waterproof and Lighting Proof Design

The IP66 waterproof and lightning protection design makes the LED football field floodlights resistant to harsh conditions.

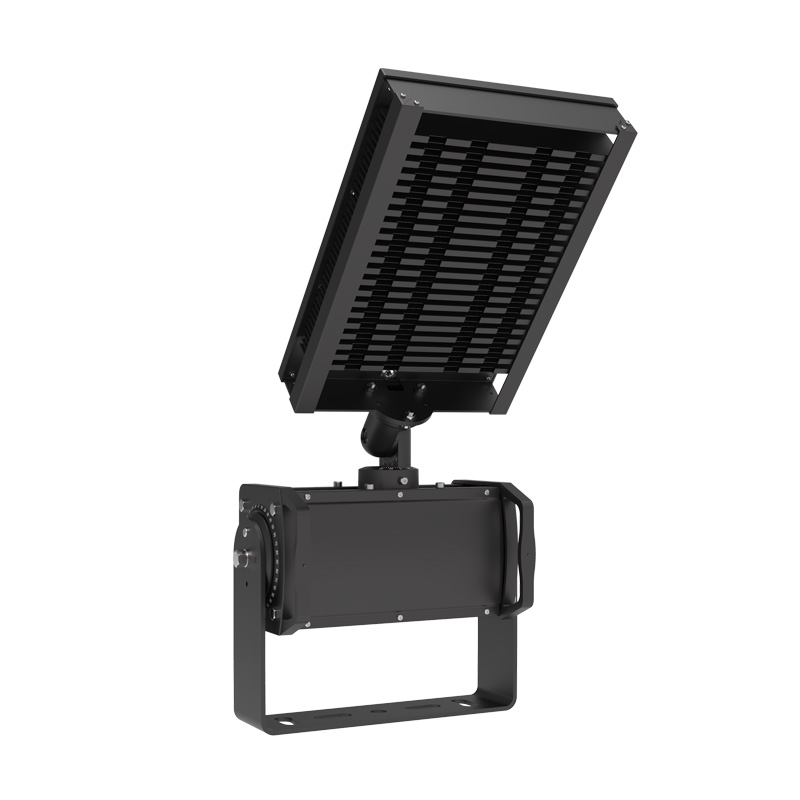

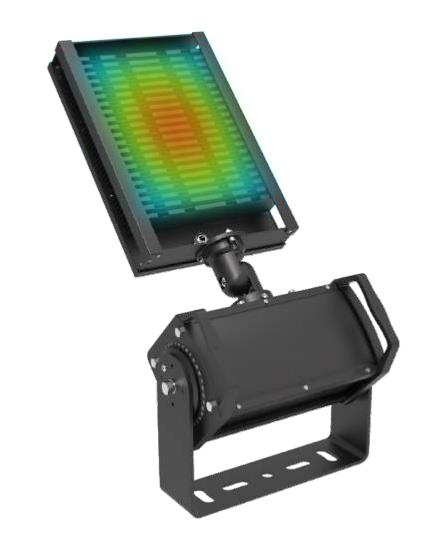

Light Weight Design

1. Weight of folding fin heat sink is ligher than die casting, extrution etc.

2. 1070 Aluminum, thickness 0.5mm.

Structure on heat dissipation, the heat dissipation area is langer, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.

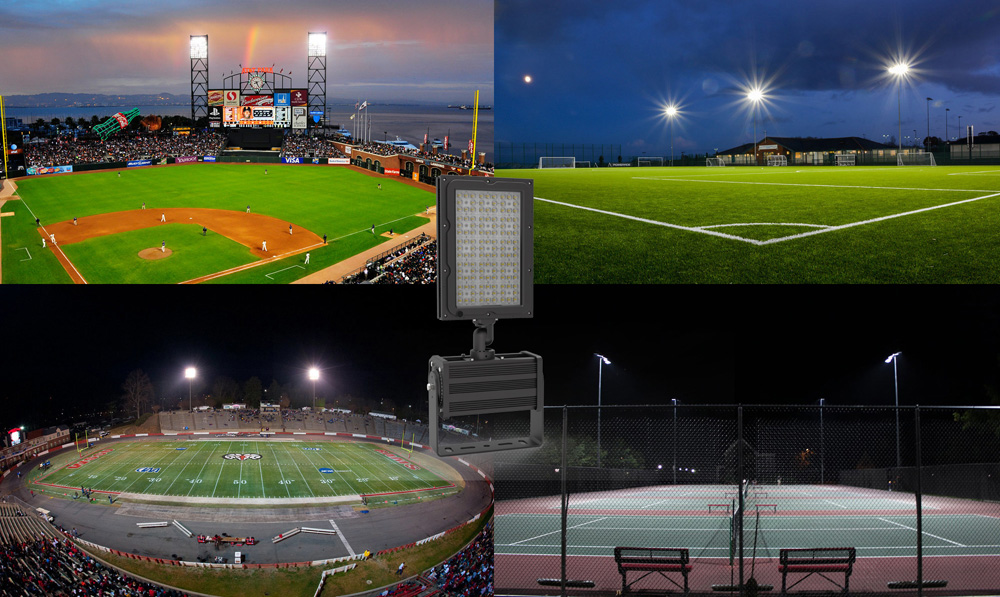

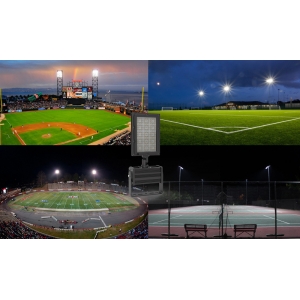

Application

1. Sports Fields

2. Stadiums

3. Any Sport Application
