Overview:

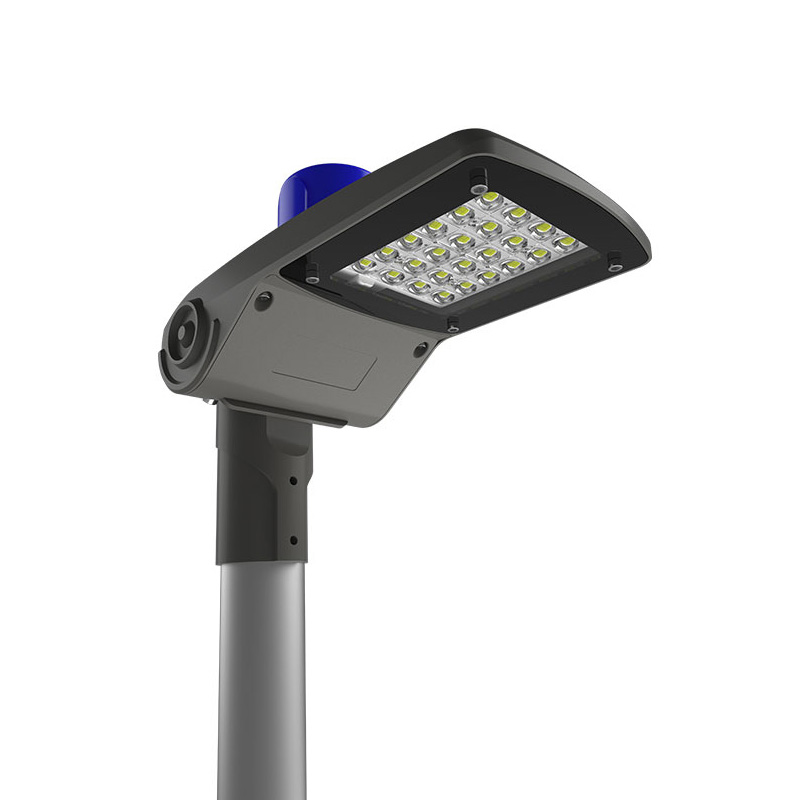

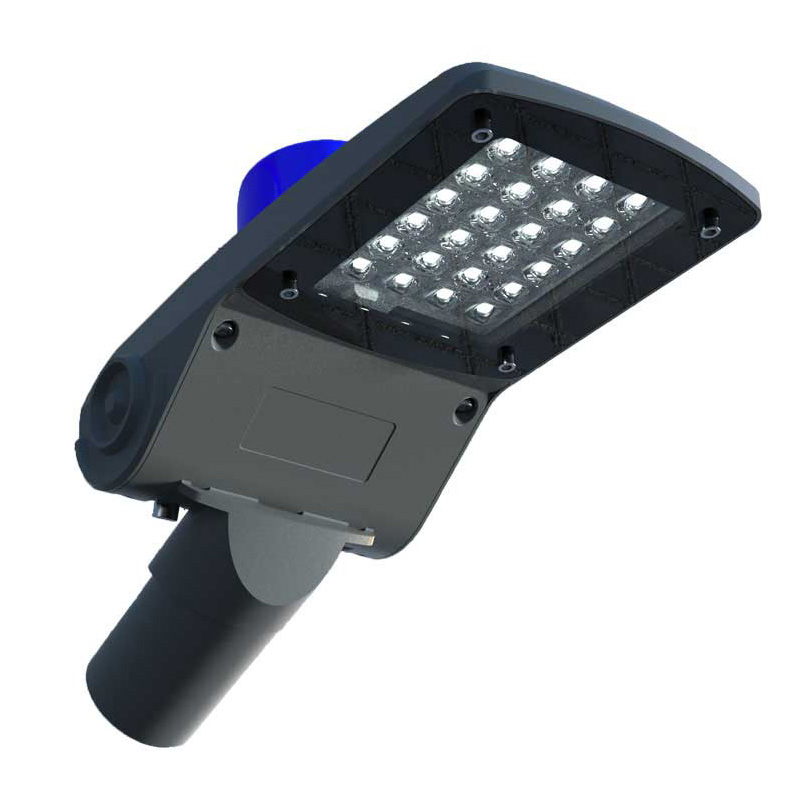

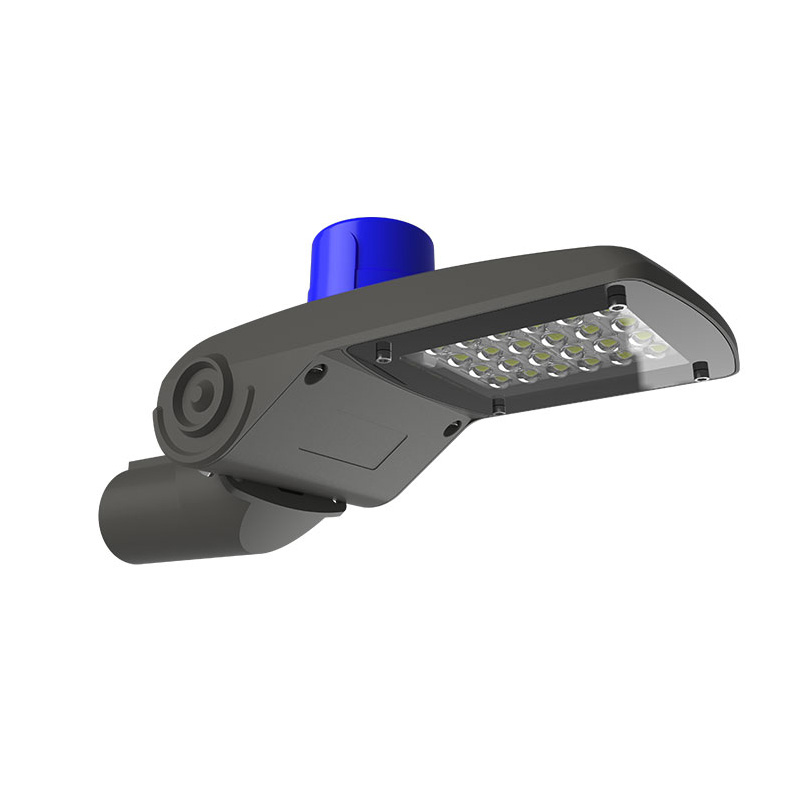

40 Watt Led Street Light, AC100-277V IP66, 5200lm 105W HPS Replacement, LED Roadway Lighting High Luminous is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.



SEALS series LED Roadway Street Lights is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.



Powered by high-power Philips LED Chips & Meanwell Driver to deliver significant efficiency benefits, SEALS series provides top-level performance, capable of saving in excess of 70% in energy consumption. Finned heat sink design enhances the heat dissipation performance in a smart way to extend the luminaire lifespan.



Many local authorities today have an outdated public lighting installation that urgently needs to be replaced, yet have only a limited budget available. We have the answer to their needs. With its compact design and modern LED architecture, SEALS series LED Roadway Street Light is a versatile, cost-effective luminaire that fulfils basic functional road lighting requirements. It is made of high-quality components that ensure long lifetime and low maintenance cost.



Benefits:
• Cost-effective LED alternative to conventional street lights
• Easy to install
• Long lifetime and low maintenance cost



Features:
• Basic, Compact design & High performance design
• High-quality components,Complete illumination across the entire roadway

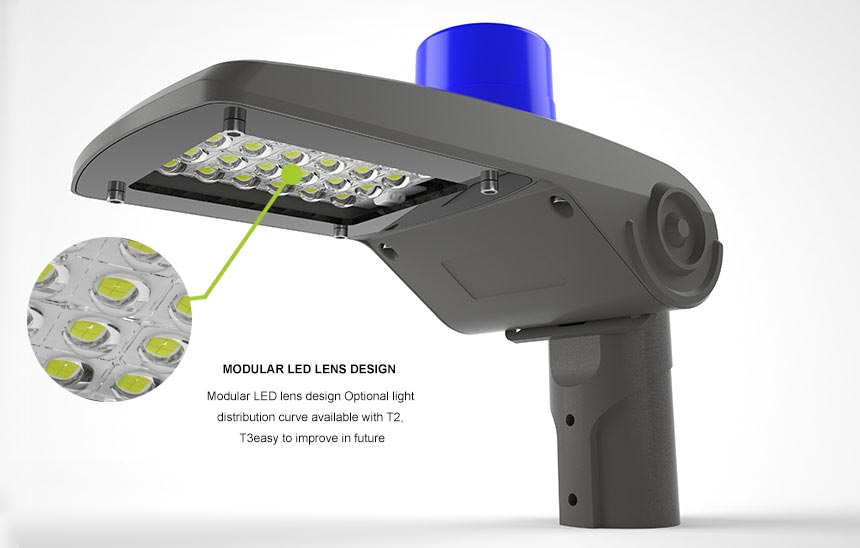

• Wide choice of optics for increased application efficiency
• No external reflectors required, Low weight
• Excellent for main roads, collecting roads, and roundabouts
• Dramatic energy savings, Safe for industrial applications



Application:
• Suitable for roadway & car park area
• Traffic routes
• Residential areas



Mounting Options:



Product Specifications:

Item  No.	HZB-LD-SL-40W	HZB-LD-SL-60W	HZB-LD-SL-80W
Efficency	130LM/W
Wattage	40W	60W	80W
Luminous Flux	5,200 lm	7,800 lm	10,400 lm
Input Volt	100-277VAC	100-277VAC	100-277VAC
Power Factor	>0.95 / 230VAC	>0.95 / 230VAC	>0.95 / 230VAC
Beam Angle	Type2,Type3	Type2,Type3	Type2,Type3
Chip Brand	Lumileds 3030	Lumileds 3030	Lumileds 3030
Lifespan	> 50,000 hours
CRI	>70
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K

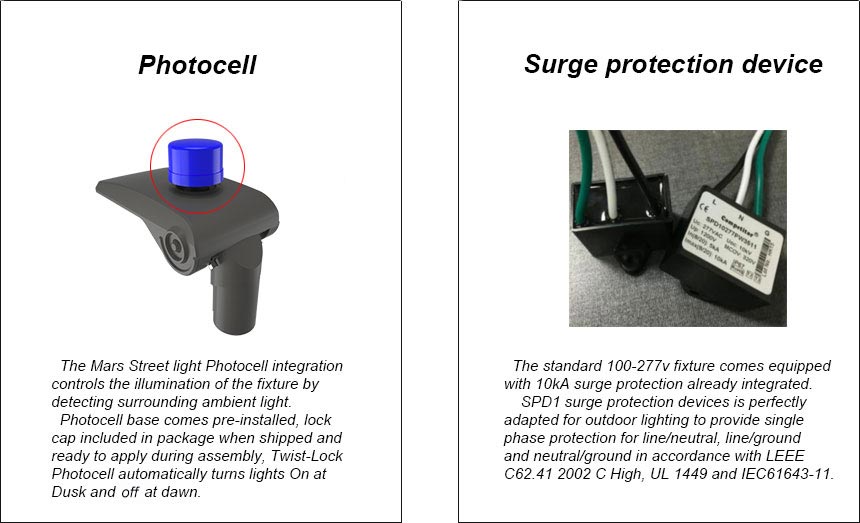

SPD	12KV

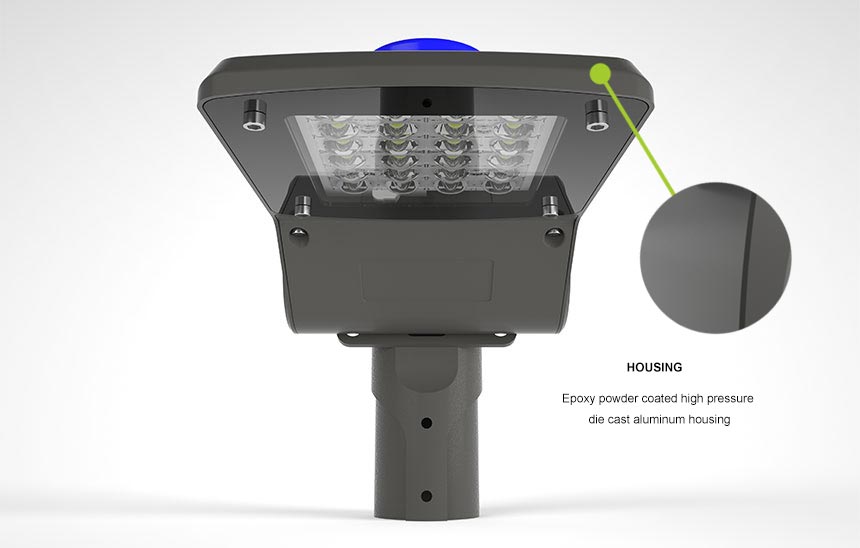

Material composition(body)	ADC-12 Aluminium Alloy (<0.1% copper conten)
Material composition(optics)	Polycarbonate
Mounting/Bracket Type	Post-top position, Side-entry position

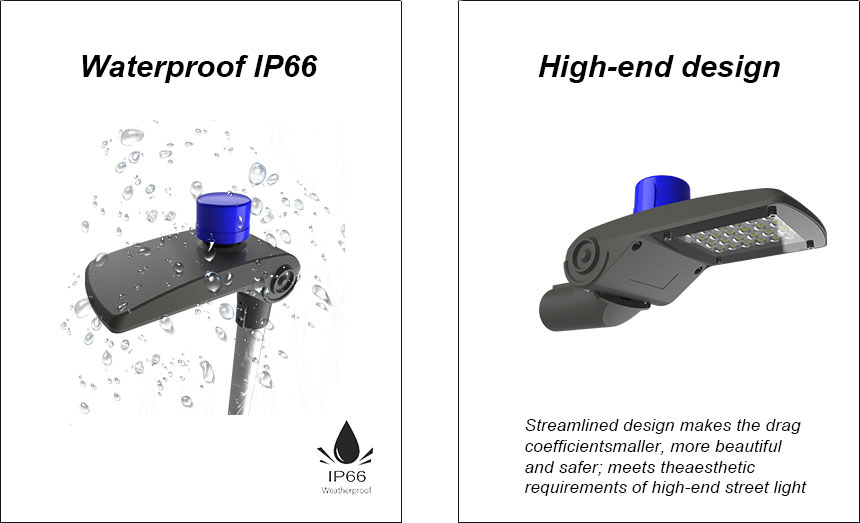

IP Rating	IP66
Size(mm)	439*183*95 (17.28*7.20*3.74in)	564.2*259.7*95 (22.21*10.22*3.74in)	564.2*259.7*95 (22.21*10.22*3.74in)
Net Weigh(kg)	5	5.6	5.6
Package Size(mm)	64.9 x 30 x 17cm  (25.55 x 11.81 x 6.69 in)
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	6kg (Standard)	6.66kg (Standard)	6.66kg (Standard)

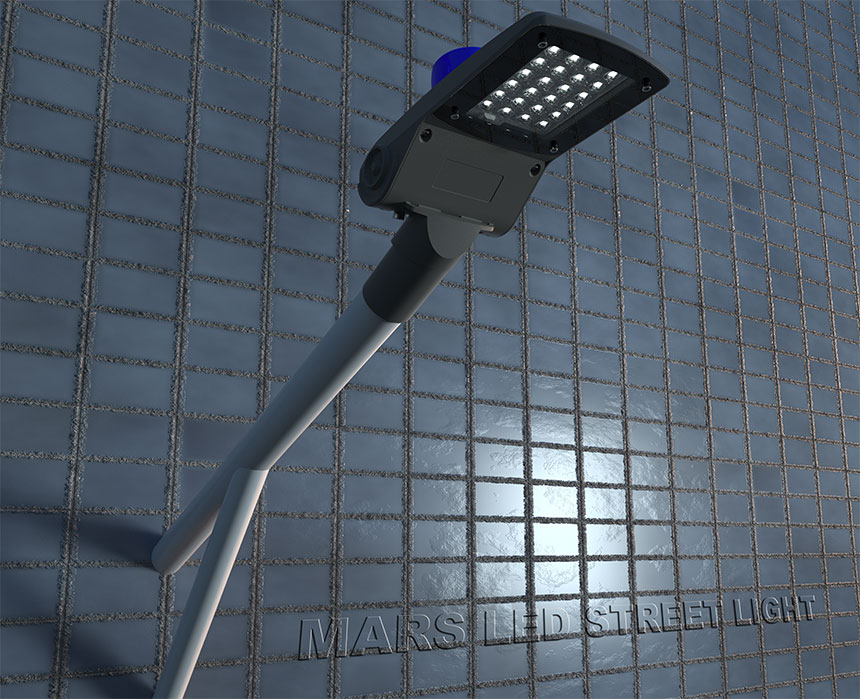

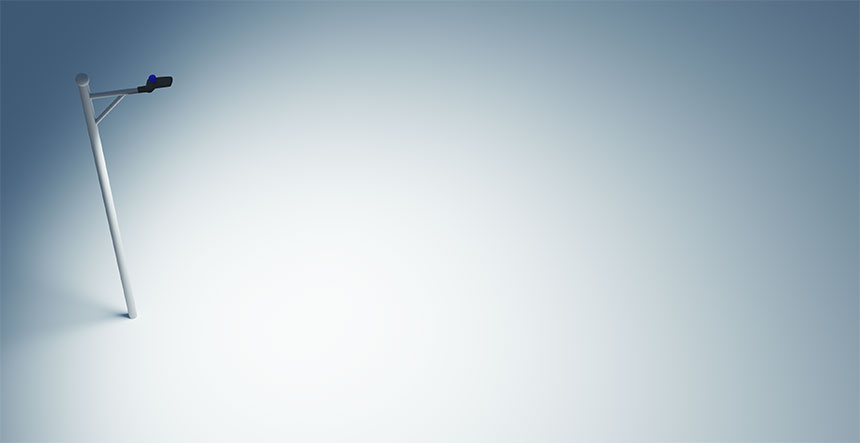

SEALS series LED Roadway Street Lighting Scene:





ENEC Certification:

ENEC means safety in Europe, and all signatories of the ENEC Mark Scheme actively



support its commitment to the highest safety levels.



Showcase:



SEALS series LED Roadway Street Lights are a perfect solution for secondary roads, parks gardens and pathways. It is aesthetically appealing due to its compact design and oers wide range of outdoor solutions with reduced cost of ownership. It can very well replace most of the fluorescent based luminaires (CFL/FTL) and also ensures uniform lighting distribution.

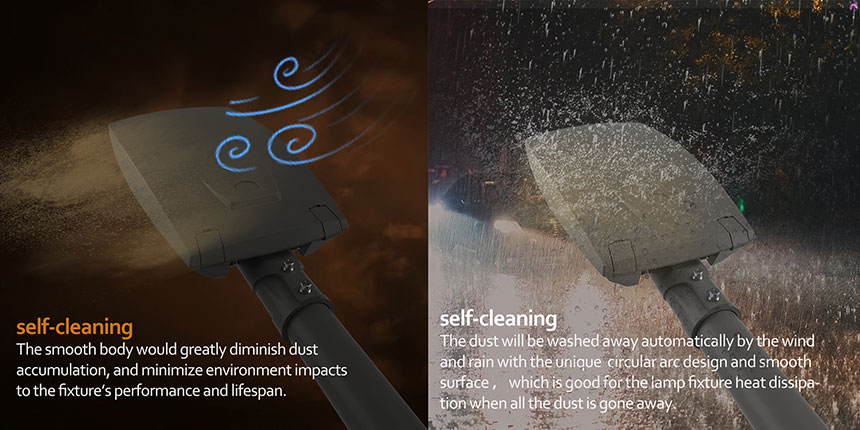

Self-cleaning

1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.

2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.

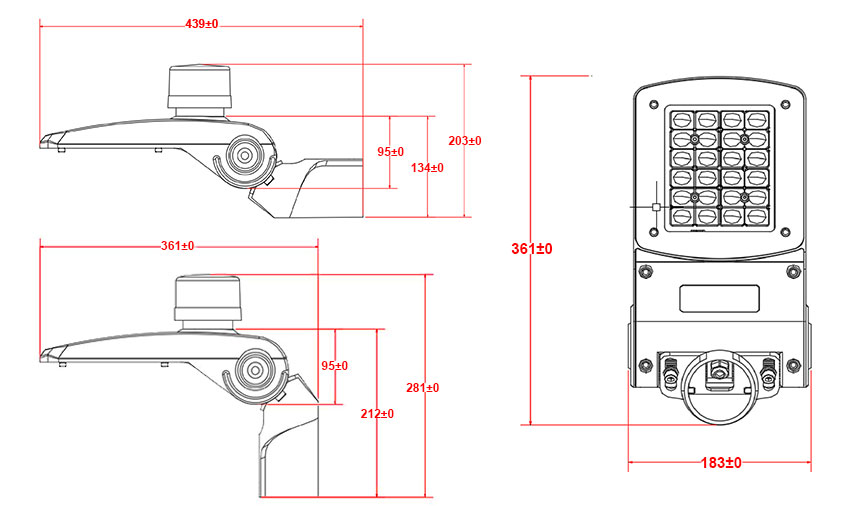

Dimension

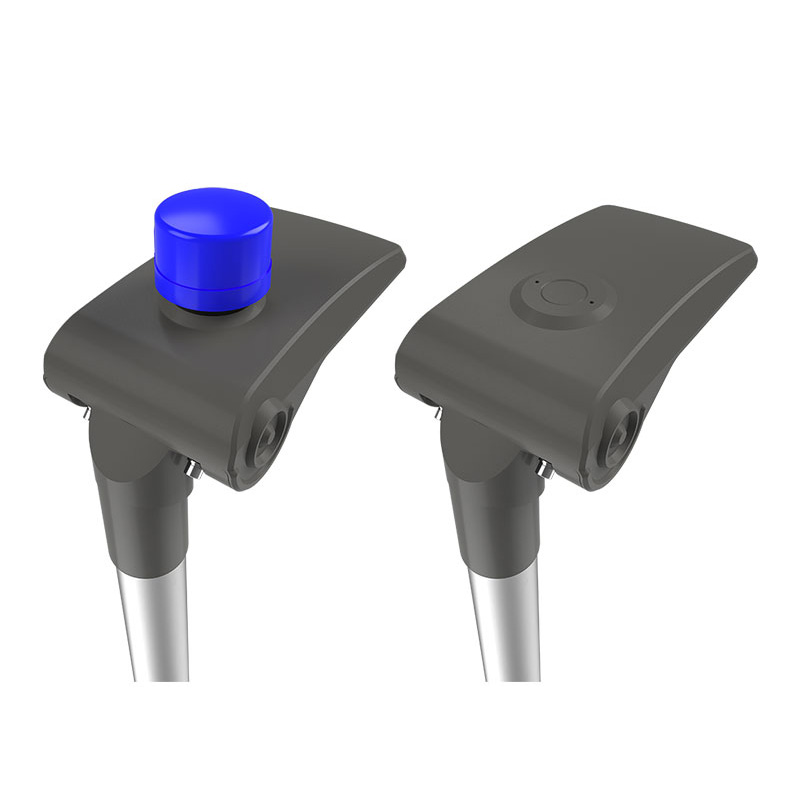

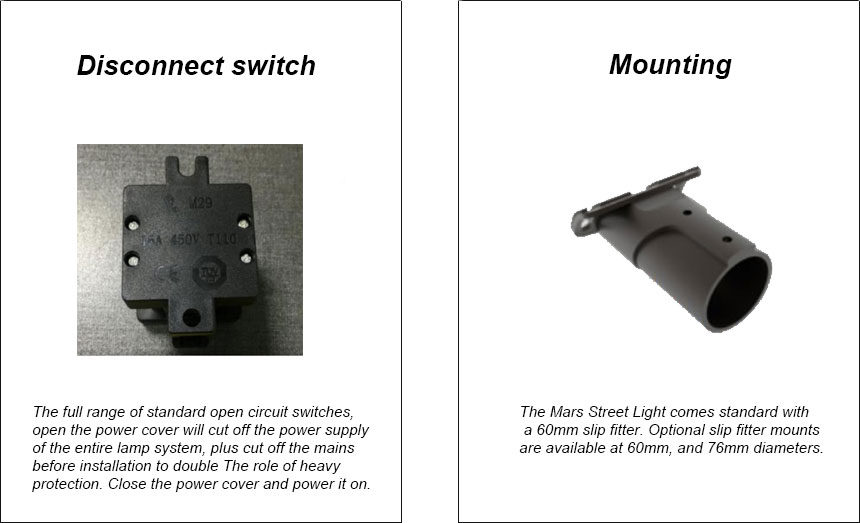

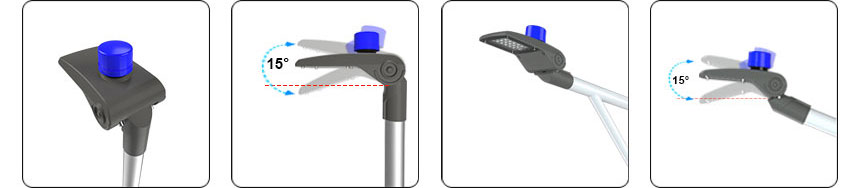

MOUNTING OPTIONAL



  The fixture includes simple installation with convenient abjustability.

  The fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation. Both orientation options include the ability to rotate 15 degree or more.







SPECIFICATION

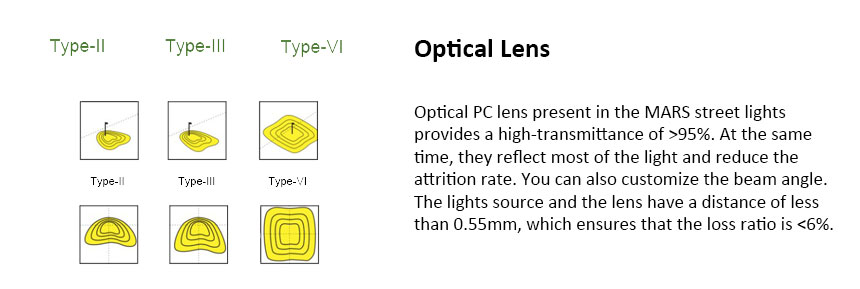

BEAM ANGLE
