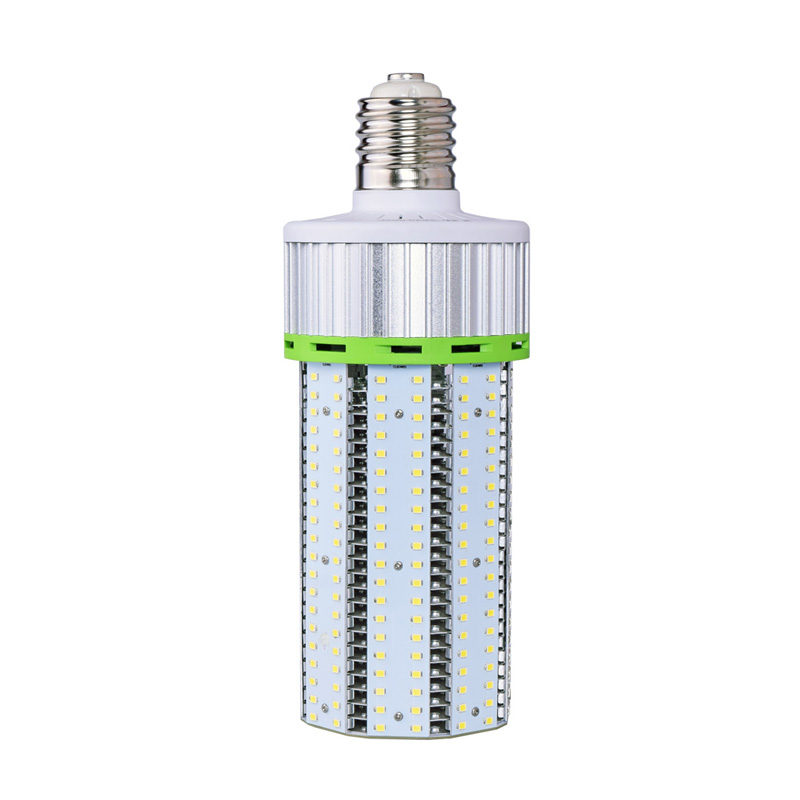

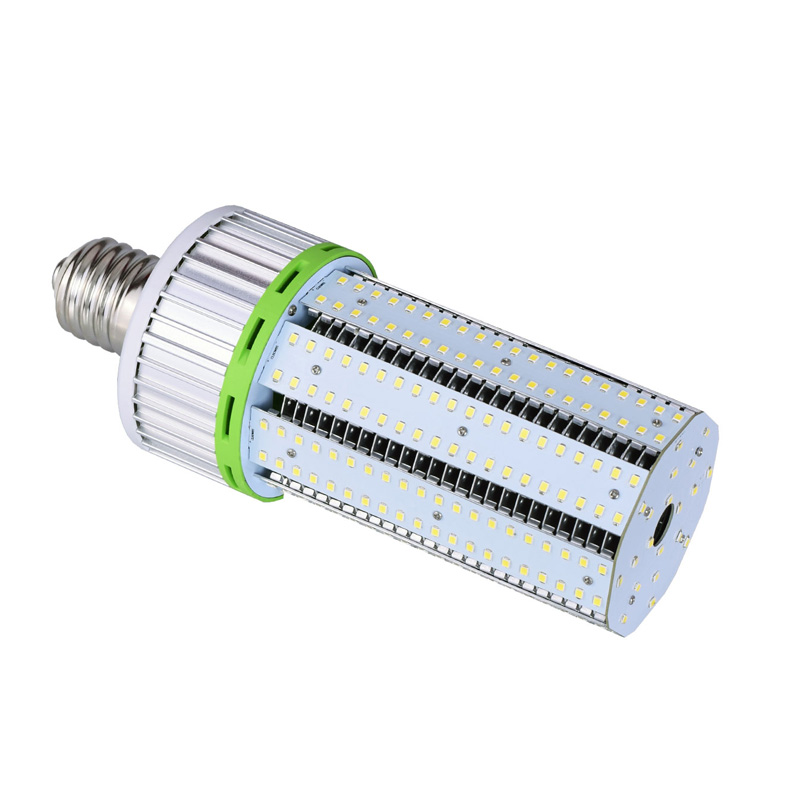

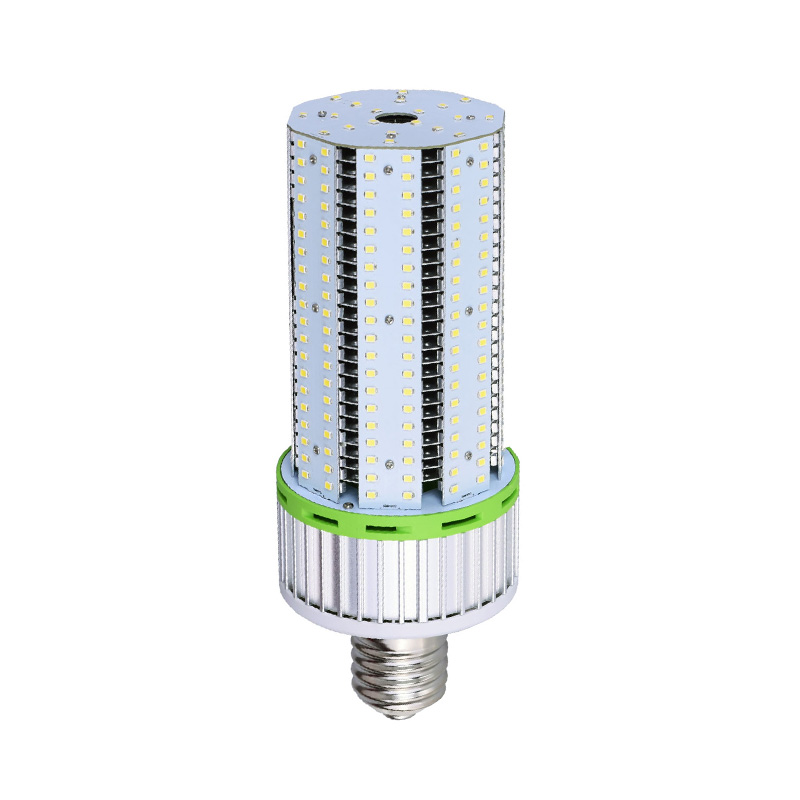

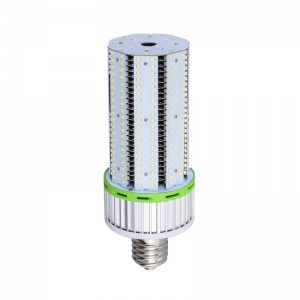

Product Name:
HZB-CB02-50WModel No.:
HZB-CB02-50W
Product Abstract:
Specializing in manufacturing high quality good price 50-watt led corn cob bulbs,commercial and HID retrofits,led retrofit bulbs,led corn light. Ideal for Warehouse and manufacturing facilities, outdoor post tops bollards, commercial and residential recessed cans, institutional and educational facilities, and other specialty projects.
Overview:
Available in multiple wattages, HZB's LED Corn Cob Bulbs are a convenient and energy-efficient solution for replacing traditional high-pressure sodium and metal halide sources in enclosed lighting fixtures. Suitable for use in open and enclosed luminaires and Suitable for dry and damp locations.
The CB01 series are designed with a smaller size and shape for easy installation in bollards and globes, while the larger 20-watt, 30-watt, and 50-watt to 240-watt corn bulbs are ideal for acorn fixtures requiring a higher lumen output. Color temperatures for the line range from 3000K to a daylight 6700K.
Features/Benefits:
1. Installation variability
2. 360-degree optical design
3. 50,000 hour life is 8 to 17 years operating 8 hours a day, based on L70 standards
4. Effective heat transfer
5. Uniform color consistency
6. Environmentally friendly
7. Universal voltage
Advantage:
1. Specially designed for indoor and outdoor lighting.
2. Retrofit the conventional lighting fixtures.
3. It's major to replace the CFL/MH/HID/HPS.
4. Universal voltage: 120V-277V, Ballast bypass.
5. >125lm/w, 150lm/w is available.
6. Beam Degree: 360°.
7. Suitable for use in open and enclosed luminaires.
8. Suitable for dry and damp locations.
9. 3-5 year limited warranty.
10. Application: indoor lighting, conference / meeting rooms / commercial complexes, residential, institution buildings, schools, colleges, universities. Places where need energy saving and high color rendering index lighitng.
| Model | HZB-CL-20W8S | HZB-CL-30W8S | HZB-CL-40W8S | HZB-CL-50W8S | HZB-CL-60W8S | HZB-CL-80W10S | |
| Power | 20W | 30W | 40W |
50W |
60W | 80W | |
| Lumens (125lm/w & 150lm/w) | 2,600lm / 3,000lm | 3,800lm / 4,500lm | 3,800lm / 4,500lm | 6,200lm / 7,500lm | 7,500lm / 9,000lm | 10,000lm / 12,000lm | |
| Size |
Φ96*155mm Φ3.7*6.0inch |
Φ96*155mm Φ3.7*6.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ128*260mm Φ5.0*10.2inch |
|
| Color Temp |
Warm White: 2,700 - 3,500K Natural White: 4,000 - 4,500K Cool White: 5,500 - 6,700K |
||||||
| Operation Temp | -40°- 50°C | ||||||
| Life Span | 50,000 hours for LED | ||||||
| Input Voltage | 100-277Vac or 200-480Vac | ||||||
| Power Factor | PF>0.95 | ||||||
| Power Efficiency | >88% | ||||||
| Beam Angle | 360° | ||||||
| CRI | >83 | ||||||
| Lamp Base | E40/E39 E27/E26, Ex39 | ||||||
| Warranty | 3-5 years factory warranty | ||||||
| Model | HZB-CL-100W10S | HZB-CL-120W10S | HZB-CL-150W10S | HZB-CL-180W10S | HZB-CL-200W10S | HZB-CL-240W10S | |
| Power | 100W | 120W | 150W |
180W |
200W | 240W | |
| Lumens (125lm/w & 150lm/w) | 13,000lm / 15,000lm | 15,000lm / 18,000lm | 20,000lm / 22,500lm | 23,000lm / 27,000lm | 26,000lm / 30,000lm | 30,000lm / 36,000lm | |
| Size |
Φ128*283mm Φ5.0*11.1inch |
Φ128*315mm Φ5.0*12.4inch |
Φ128*325mm Φ5.0*12.8inch |
Φ128*340mm Φ5.0*13.4inch |
Φ128*340mm Φ5.0*13.4inch |
Φ128*400mm Φ5.0*15.8inch |
|
| Color Temp |
Warm White: 2,700 - 3,500K Natural White: 4,000 - 4,500K Cool White: 5,500 - 6,700K |
||||||
| Operation Temp | -40°- 50°C | ||||||
| Life Span | 50,000 hours for LED | ||||||
| Input Voltage | 100-277Vac or 200-480Vac | ||||||
| Power Factor | PF>0.95 | ||||||
| Power Efficiency | >88% | ||||||
| Beam Angle | 360° | ||||||
| CRI | >83 | ||||||
| Lamp Base | E40/E39 E27/E26, Ex39 | ||||||
| Warranty | 3-5 years factory warranty | ||||||
