Product Name:
HZB-PT-AL-60WModel No.:
HZB-PT-AL-60W
Product Abstract:
60-Watt LED Pole-Top Area Light Fixtures, 7800 Lumens, replaces a 225-250W Equivalent Area Light (Metal Halide or HPS), provides excellent illuminative solutions to parking areas, roadways,campuses and streetscapes. We Provide high quality LED Post Top Light fixtures, Post top lights are ideal for streetscapes, parks, green spaces, campuses, and gathering areas.
Overview:
60-Watt LED Pole-Top Area Light Fixtures, 7800 Lumens, replaces a 225-250W Equivalent Area Light (Metal Halide or HPS), provides excellent illuminative solutions to parking areas, roadways,campuses and streetscapes. We Provide high quality LED Post Top Light fixtures, Post top lights are ideal for streetscapes, parks, green spaces, campuses, and gathering areas.
Post top lights are the crowning feature of any outdoor landscape or streetscape. When added to a park or walkway, post top lights illuminate landscape elements as well as improve safety by providing a uniform ambient light that increase visibility for pedestrians. Pole top lights can enhance an overall outdoor design. Coming in a variety of styles from traditional to contemporary, post top lights can represent the overarching style of outdoor design. Eaton has a myriad of post or pole top lighting solutions. Featuring LED lamp sources, heavy-duty aluminum housings, optional decorative finials and optional controls, our post top lamps are the perfect exterior lighting solution.
It is designed for large outdoor areas such as parking lots, corporate parks, and retail settings,yard,garden etc; It also called High output LED pole top area light with IES type V circular distribution. With Wide and uniform 360 degree pattern ideal application in above places.

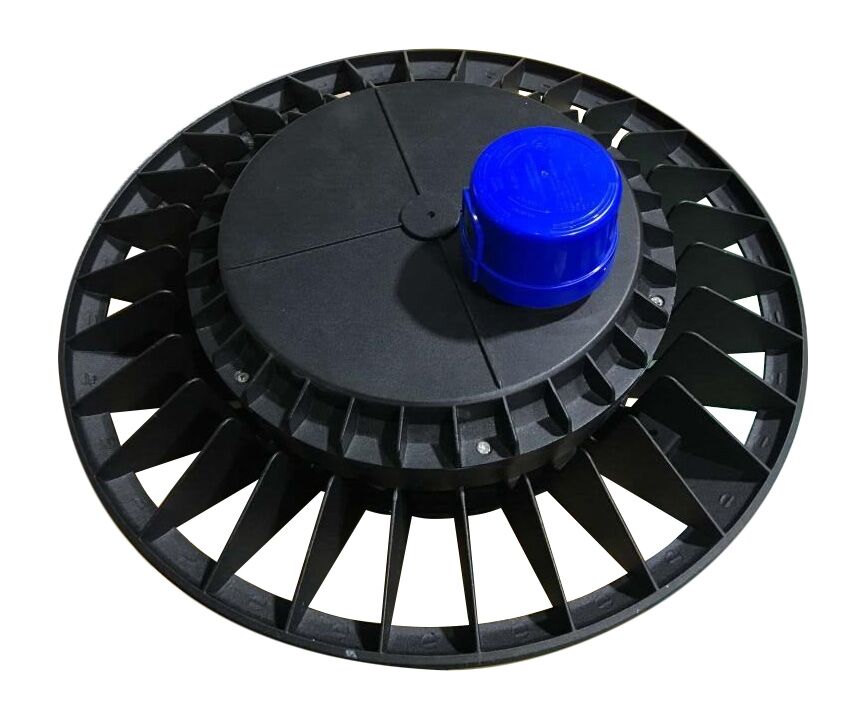

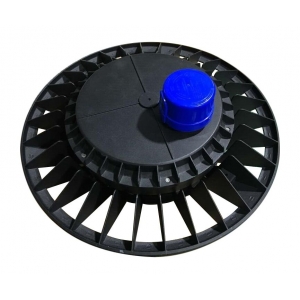

For dusk-til-dawn lighting control, try this selection of locking-type photocells of LED Pole Top Area Lighting. These simple sensors detect changes in light and turn fixtures on or off. Conventional photocells of Post Top Lighting can be used for traditional outdoor lighting sources like outdoor areas such as parking lots,corporate parks,and retail settings.

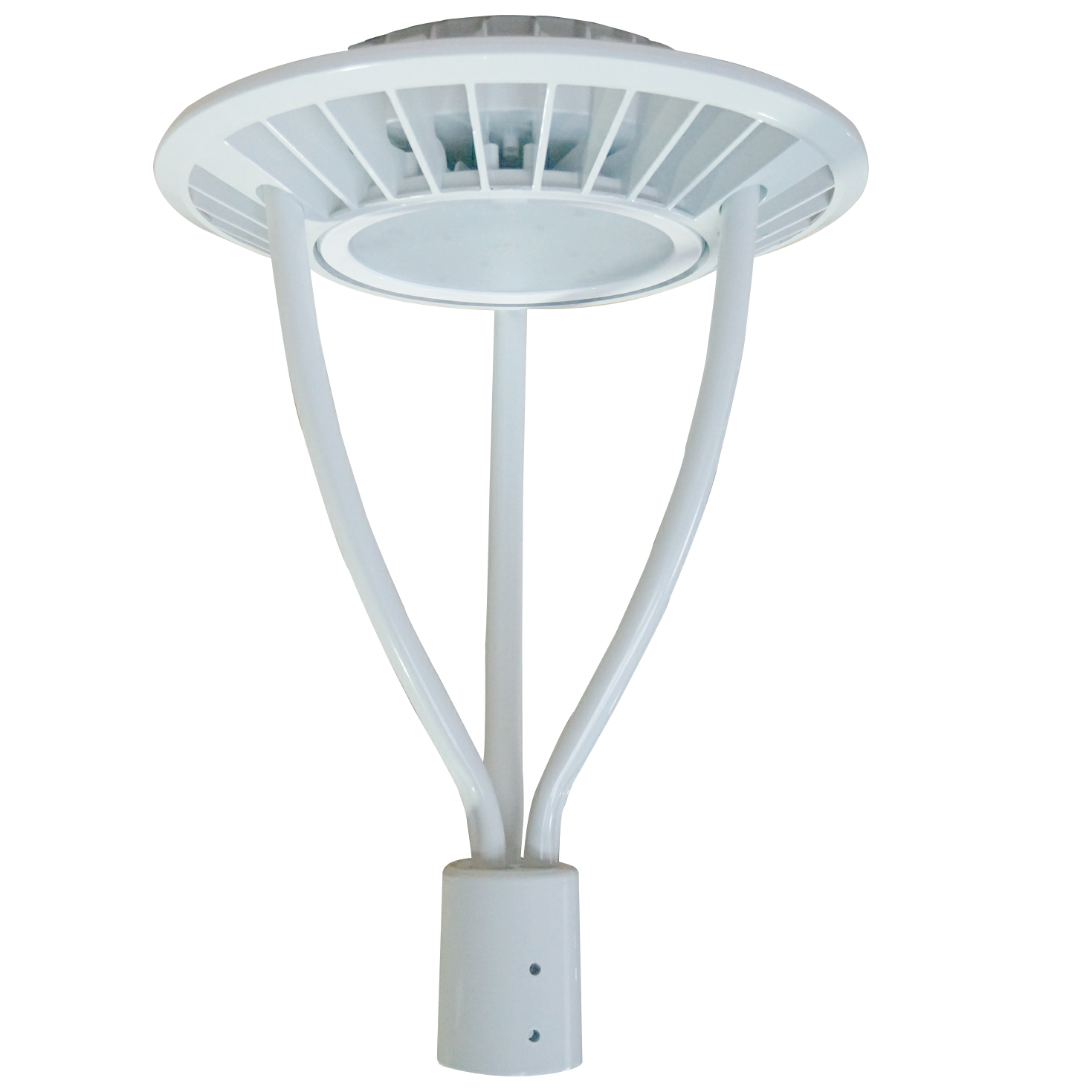

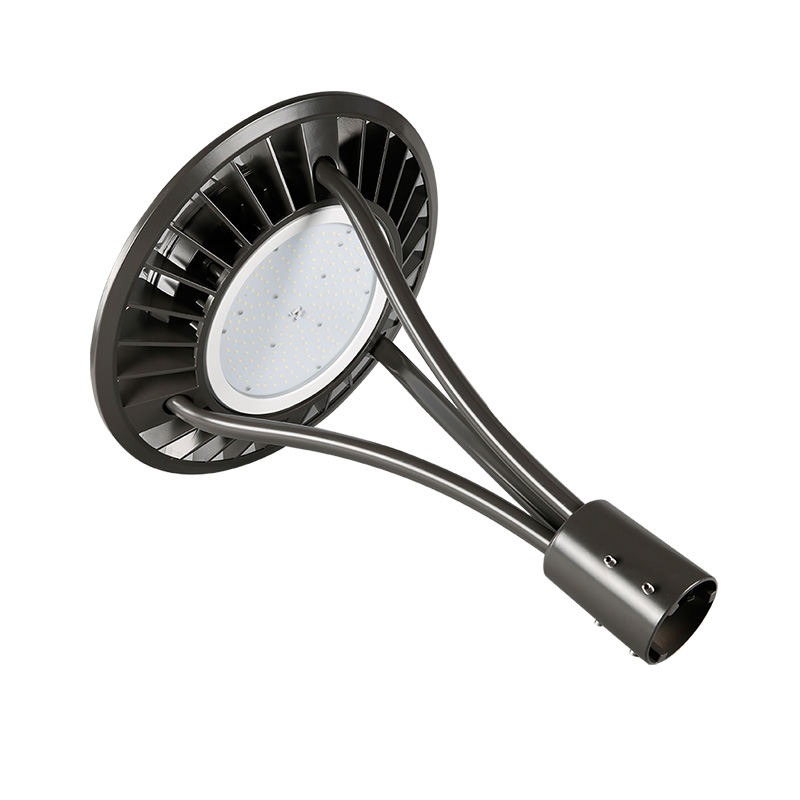

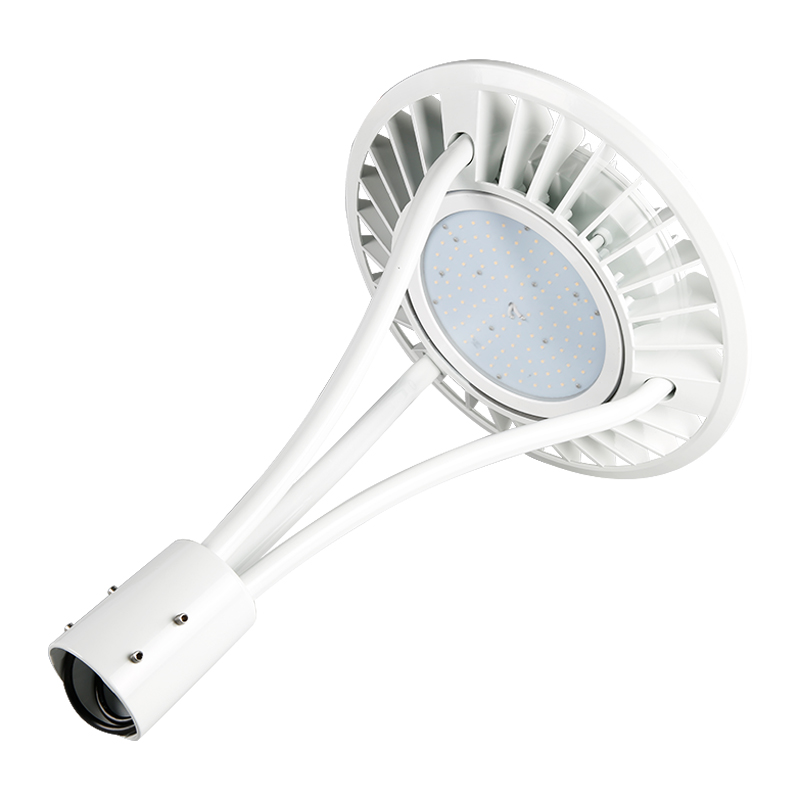

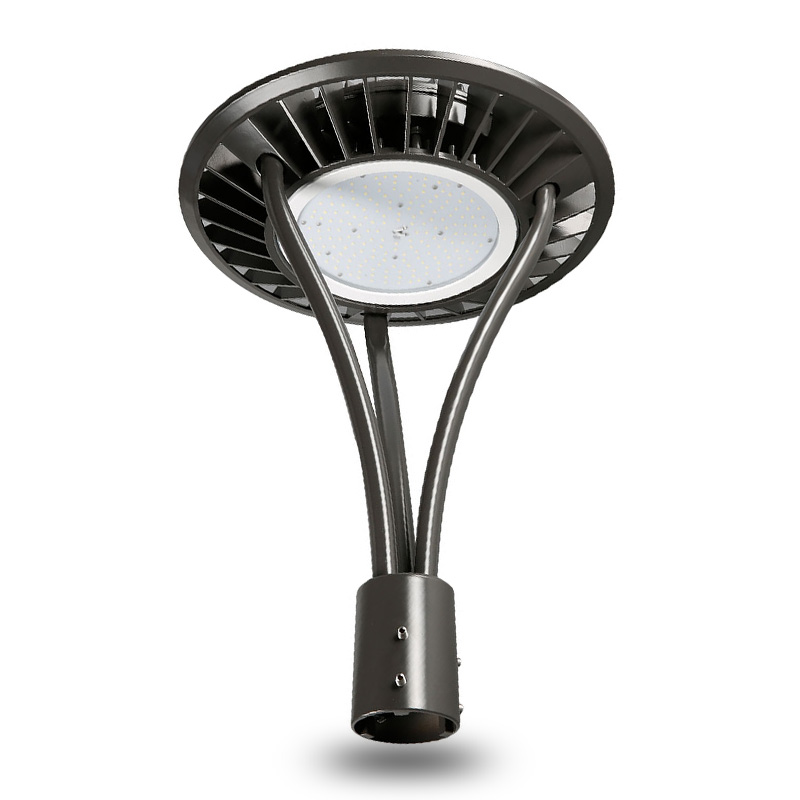

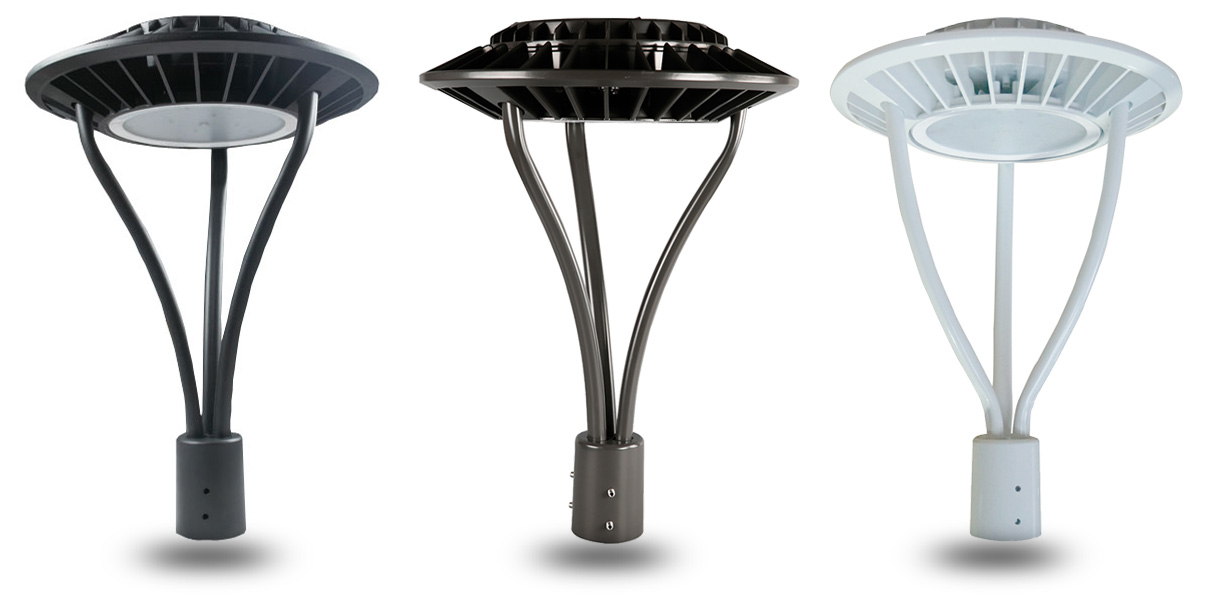

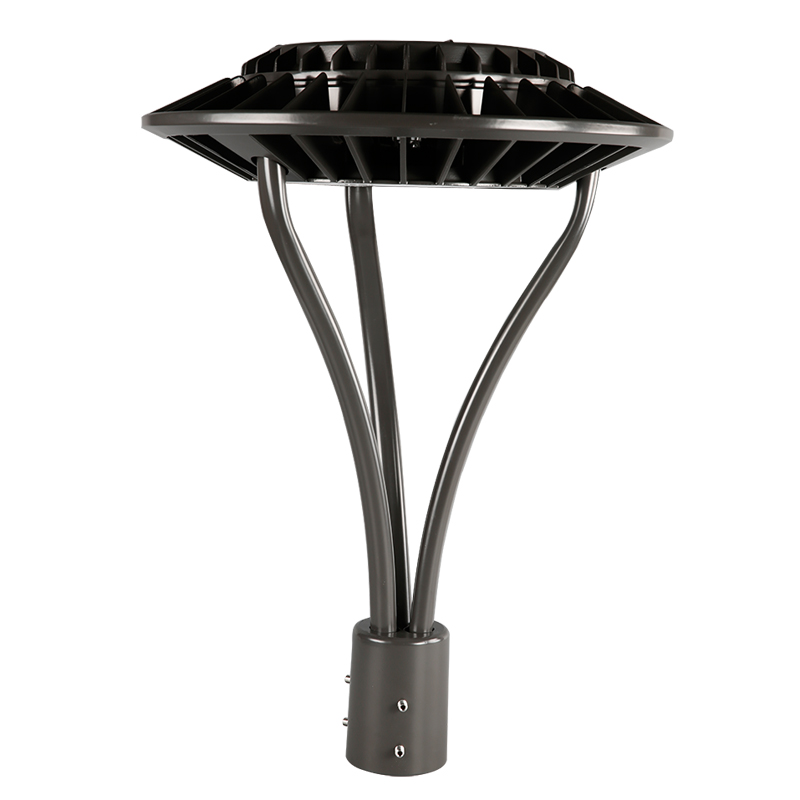

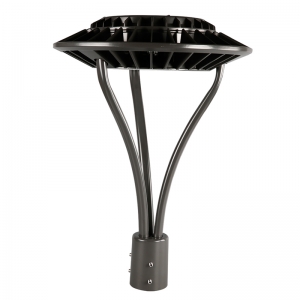

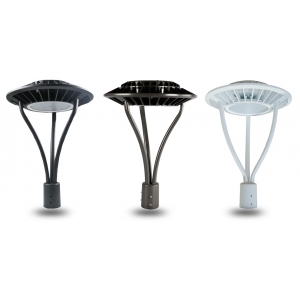

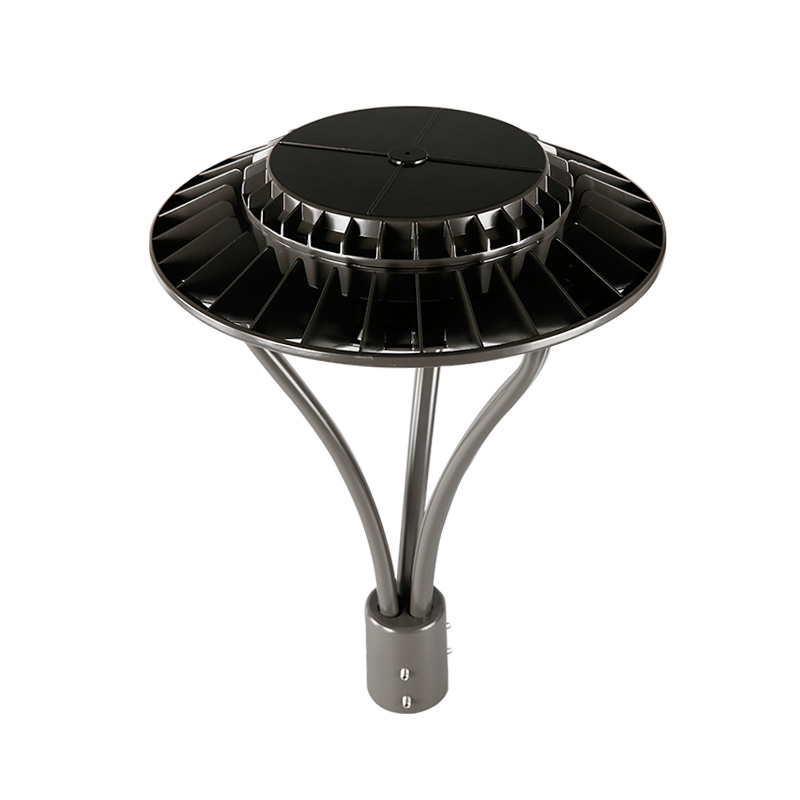

The high output LED circular post top area light can replace conventional area lights and floodlights. The precise die cast aluminum housing with 5 conduit entries and reliable powder coating enables the light used in harsh outdoor environments. The external air-flow fins design is perfect for maximum heat dissipation. The post top light is compatible with US/Canadian standard 2 3/8" and 3" tenons and can be fitted with photocell/photo control. Durable chip, fade resistant powder coat finish, wide and uniform 360 degree pattern make it ideal for large outdoor areas such as corporate parks, walkways, parking lots and retail settings.
Features/Benifits:
• 5 Years Warranty
• Easy & Fast Installation
• Equivalent 50W-400W HPS/HID
• 120-130lm/w Super Bright
• 100-277Vac 50/60Hz
• Diammable Option (Photocell or Motion Sensor) 1-10DC/PMW/Resistor(3IN1)
• Long Life Up to 60800 Hours
• IP65 Waterproof
• Osram LED chips, MeanWell/Sosen driver
• Die casting aluminum housing with reliable powder coating for harsh outdoor environments

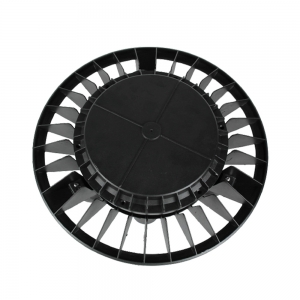

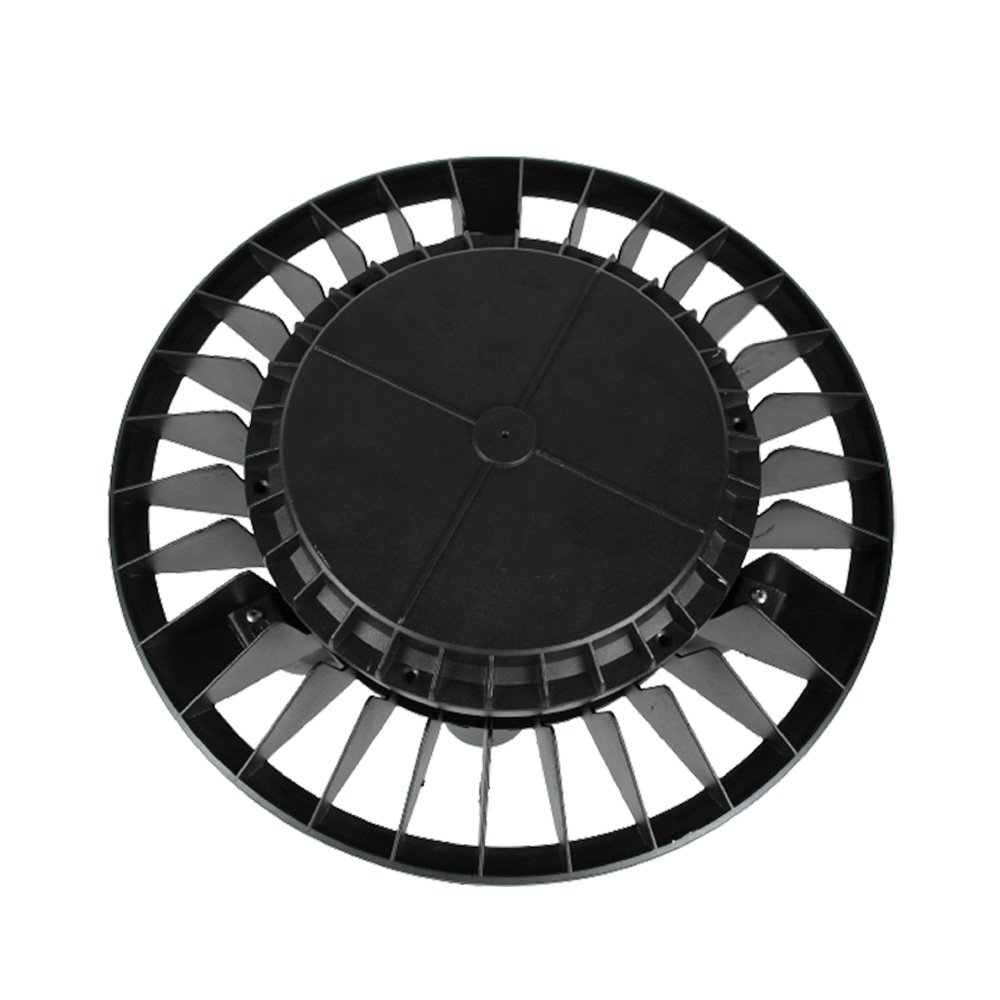

• External air-flow fins for maximum heat dissipation

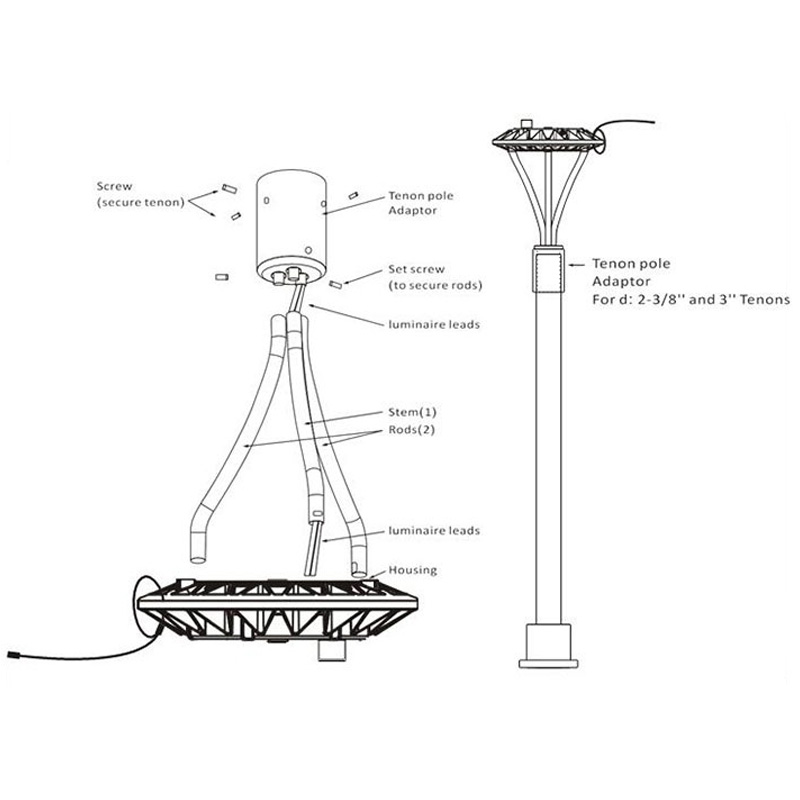

• Post top mounted directly, compatible with US standard 2 3/8" and 3" tenons
• Suitable for Wet locations,Outdoor Use
Specification:
| Model | PT-AL-50W | PT-AL-60W | PT-AL-75W | PT-AL-100W | PT-AL-150W | PT-AL-170W | |
| Power | 50W | 60W |
75W |
100W |
150W |
170W |
|
| Lumens | 6,000lm | 7,800Lm | 9,000Lm | 13,000Lm | 19,500Lm | 20,400Lm | |
| Efficency | 120lm/w | 130lm/w | 120lm/w | 130lm/w | 130lm/w | 120lm/w | |

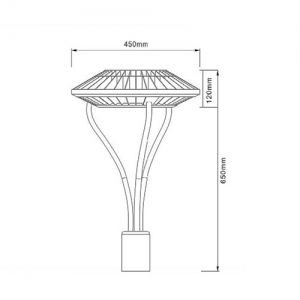

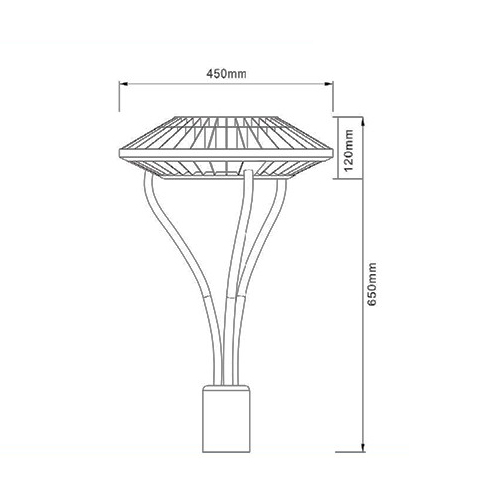

| Dimension |
450*450*650mm 17.7*17.7*25.6inch |
||||||
| Light Source | Osram LED Chip | ||||||
| Replacement | 175-225W Metal Halide or HPS | 225-250W HID / Metal Halide | 250-275W HID / Metal Halide | 300-400W HID / Metal Halide | 400-500W HID / Metal Halide | 500-700W HID / Metal Halide | |
| Color Temp | 3000K/4000K/5000K/5700K | ||||||
| Driver Power | Meanwell Driver | ||||||
| Lifetime | 50,000+ hours | ||||||
| Input Voltage | 100-277VAC,50/60Hz | ||||||
| Power Factor | PF>0.95 | ||||||
| Net weight | 6.5kg | ||||||
| Beam Angle | 120° | ||||||
| IP Rating | IP65 | ||||||
| Housing | Aluminum | ||||||
| Certification | ETL,DLC | ||||||
| Warranty | 5 Years factory warranty | ||||||

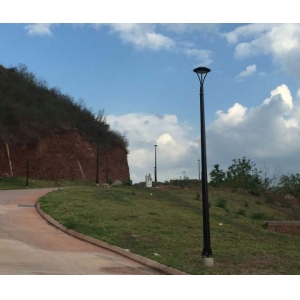

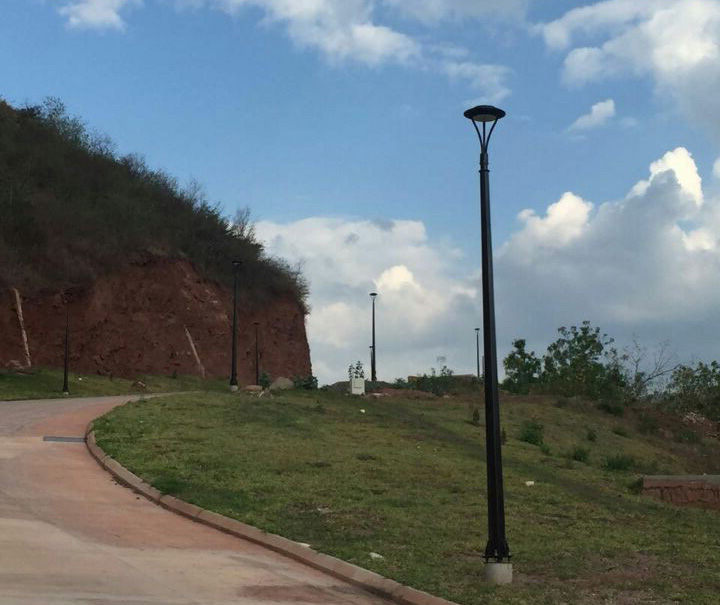

Applications:
