600W LED High Mast Lights Dragon-Max Series - 170Lm/W White 5000K Outdoor Area Lights

More convenien - tThe power supply can be installed separately from the lamp, which reduces the load bearing on the top of the pole and makes subsequent maintenance more convenient;

High uniformity - The lamp module can be flexibly rotated, and different lenses can be used to achieve the best uniformity of illumination of the venue;

High Efficiency - Using the latest LED lighting technology, the light efficiency reaches 170Lm/W, replacing your existing HPS/MH you can save 75% of electricity bills every month;

Quick install - Adopt fast male and female connector to complete the installation quickly and save manpower;

Certification - Passed the ETL TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved certification;



Size

Specifications



Model	DHM-600W
Watt	600W
Efficiency	170Lm/W
Lumens	102,000Lm
CCT	3000K 4000K 5000K 5700K 6000K
Driver	Meanwell Driver 2pcs ELGC-300-H-A
Weight	15KG / 33 lbs
Size	L420 x W787 x H540mm L16.5" X W31" X H21.3"
Beam Angle	20/ 40/ 60 degree
Certification	ETL TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

Product Features

1.High Light Efficiency 180LM/W!

2.Pure aluminum body with strong anticorrosion performance and excellent heat dissipation ability;

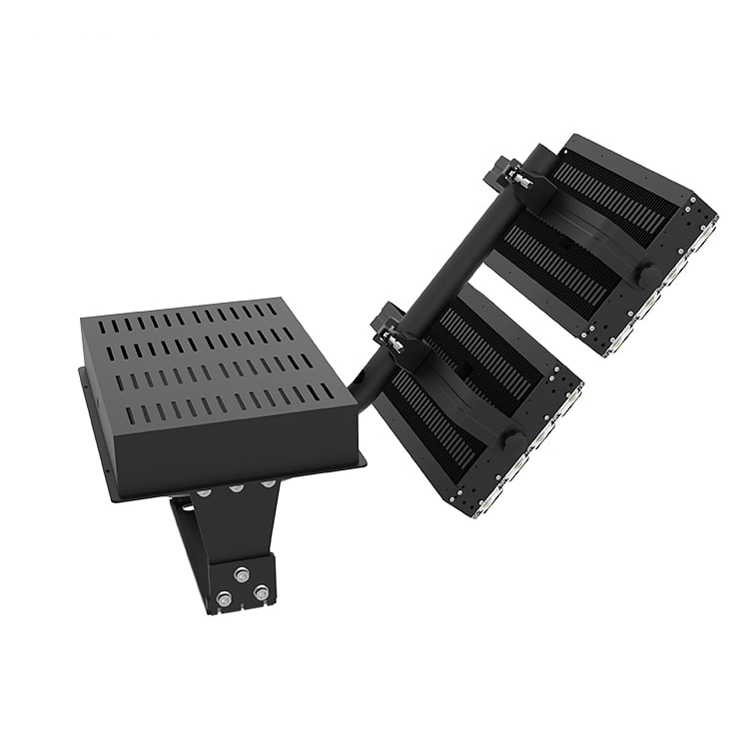

3.Driver box is alternative to be installed seprately from the lamp;

1.The fixed buckle of the module is made of stainless steel and the left and right direction of the module can be adjusted by ±45 degree;

2.Knob fixing which is for tool-free adjustment of module angle ±45 degree;

3.Each Module of comes with Waterproof Breathable Pressure Relief Vent Plug;



Beam Angle

20/ 40/ 60 degree

High uniformity and flexibility

Each module can be matched with any light distribution angle to achieve the most uniform illumination.





The modules are rotatable, and each module can be individually rotated and adjusted to the best lighting angle to achieve the best lighting uniformity. This is not possible with ordinary non-rotatable lamps.



What can we do for you?

We can provide you with: 1.High quality LED Light; 2.Dlalux Lighting Design; 3.5 years Warranty;

Please feel free to contact us if there is any problem during this period;





Since 2009, we have started the lighting business and have served thousands of customers. We are a professional manufacturer and supplier of LED Stadium Area Flood lights. Our products are sold all over the world and are well received by customers.



Compared with traditional plant lights, Dragon max LED stadium lights have higher efficiency, higher uniformity and lighting quality, and longer service life. Replace your old lamps, you can get more than 75% off monthly lighting costs! contact us whenever necessary!
