Overview:

60 Watts,7800Lumen,Input Voltage 100-305V,Type B - Ballast Bypass Replacement Type,225-250W Metal Halide Equal,for all outdoor and indoor fixture (no matter the base is up or down).

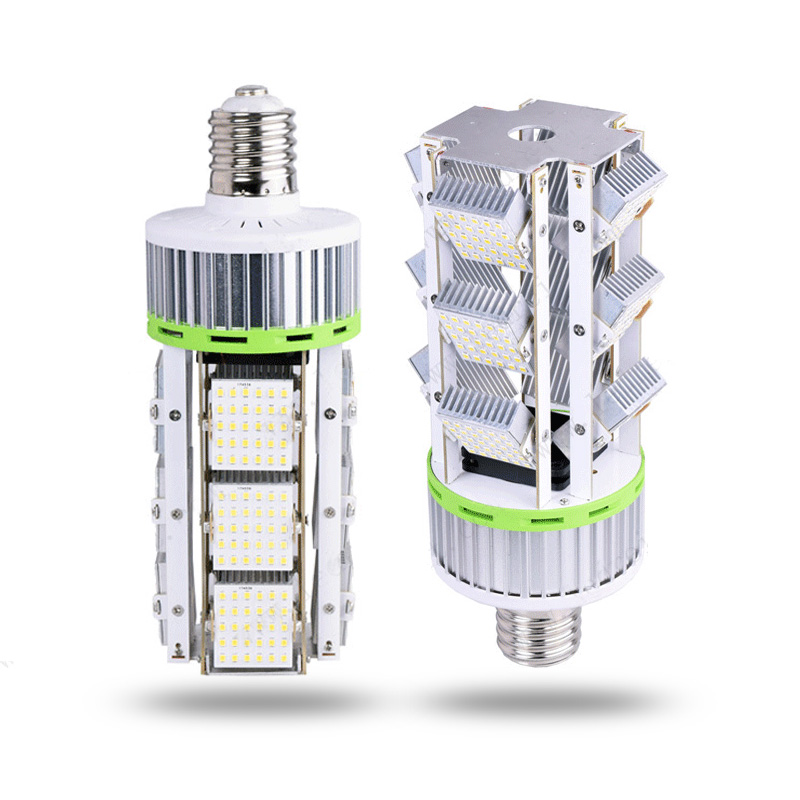

LED adjustable corn bulb lights offer 360° omnidirectional lighting like normal led cob lights, with the adjustable beam angle, you can always get the correct light for your application. These adjustable corn bulbs can be used in more applications than usual. With the ability to adjust the beam angle, LED corn cob bulbs can be used in shoebox, post tops and even high bay and low bay applications.



When the light panels are closed, this corn cob has a 360° beam angle, perfect for your post top or metal halide replacement applications. If you need that out and downward light, the light panels lock into a half-open position to create a nice 270° beam angle. This corn cob also works for LED high bay and low bay applications, as the light panels lock into a fully open position, creating an 180° beam angle.



Adjustable LED Retrofit Corn Bulb is tailored to replace MH,HPS,HID,CFL lamp etc., for all outdoor and indoor fixture (no matter the base is up or down).



Advantage:
• Can adjust any beam angle that you need.
• >130lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.
• CCT: 2700K-6700K, Amber / Green color

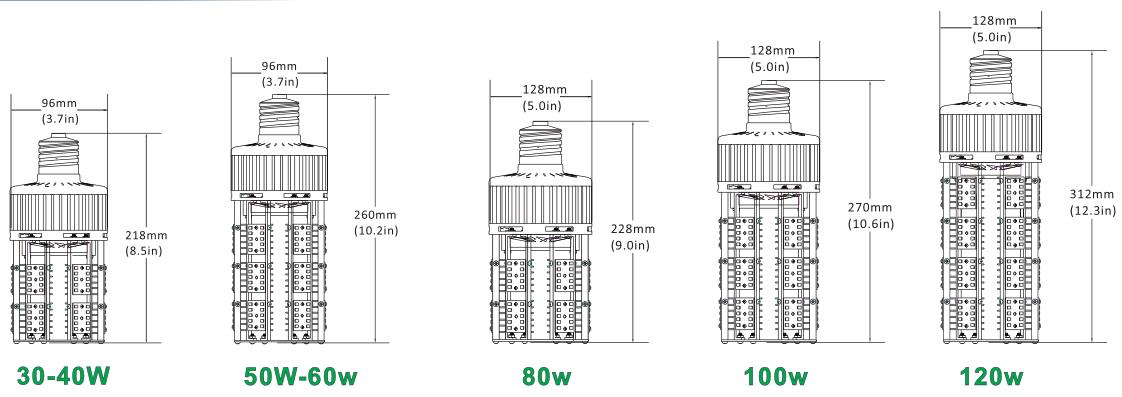

Dimension



Specification

Model	HZB-TF-60W	IK Rating	4KV surge protection
Wattage	60 Watt	Luminous Flux(150lm/w)	9000lm
Lumen	7800lm	Beam Angle	Adjust any beam angle
Efficiency	130Lm/W	Lifespan	>50000 hours
Light Source	SMD EPISTAR	Dimension	Φ96*260mm/Φ3.7*10.2inch
Input Volt	100-305VAC	Lamp Base	E40/E39, E27/E26, Ex39
Driver	Aluminum driver holder	Replacement	225-250W HPS MH
CCT	3000K, 4000K, 5000K, 5700K	Net weight	1.3kg

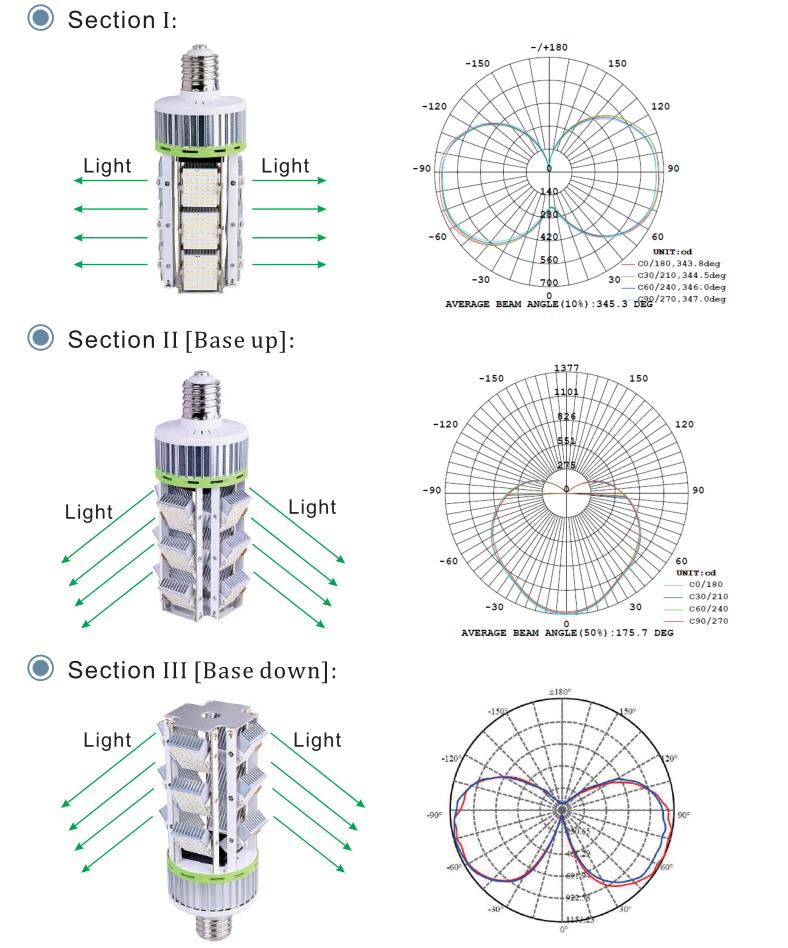

Lighting Efficiency

While use the lamp for Vertical installation, you can adjust any beam angle that you need.

Application

1. Canopy fixtures

2. High bay fixtures

3. Low bay fixtures

4. Pole lighting fixturs
