Overview:

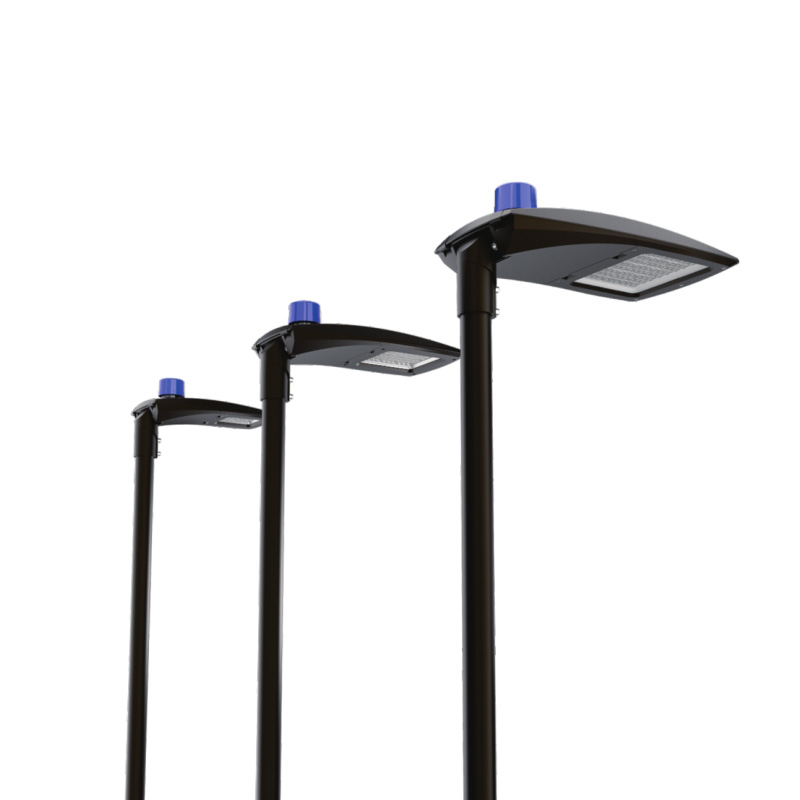

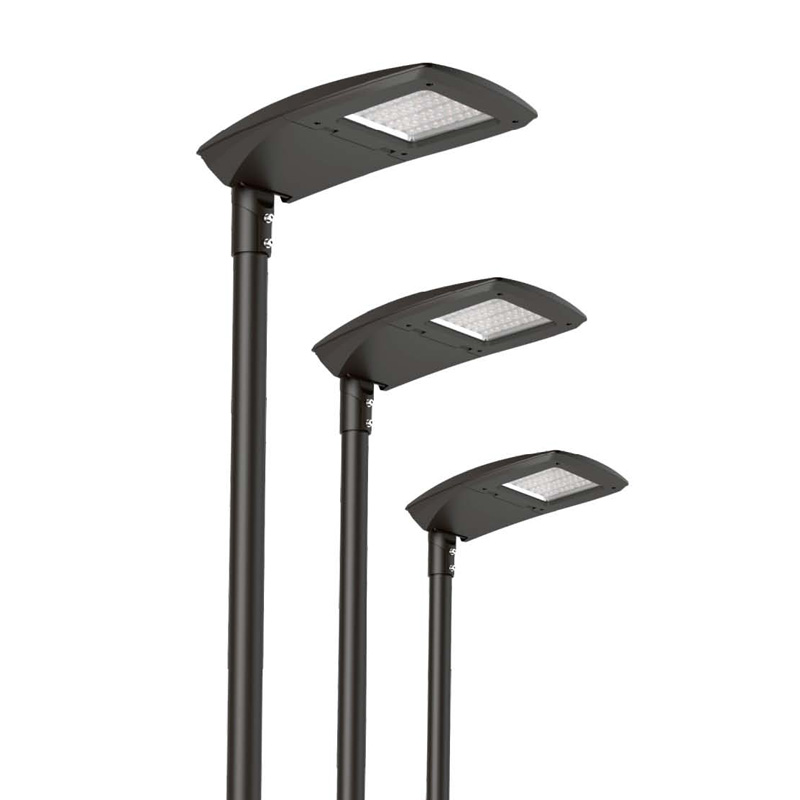

80 Watt Led Street Light, AC100-277V IP66, 10400lm 150-200W HPS Replacement, LED Roadway Lighting High Luminous is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.



SEALS series LED Roadway Street Lights is reliable solution that delivers substantial energy savings compared with conventional fixtures. Suitable for roadway & car park area applications.

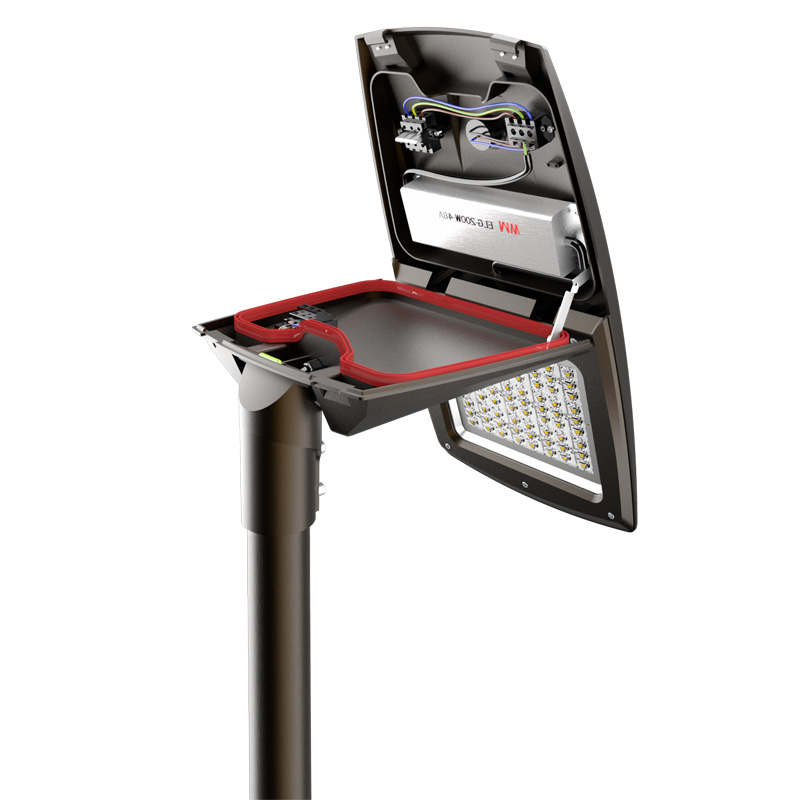

Powered by high-power Philips LED Chips & Meanwell Driver to deliver significant efficiency benefits, SEALS series provides top-level performance, capable of saving in excess of 70% in energy consumption. Finned heat sink design enhances the heat dissipation performance in a smart way to extend the luminaire lifespan.



Many local authorities today have an outdated public lighting installation that urgently needs to be replaced, yet have only a limited budget available. We have the answer to their needs. With its compact design and modern LED architecture, SEALS series LED Roadway Street Light is a versatile, cost-effective luminaire that fulfils basic functional road lighting requirements. It is made of high-quality components that ensure long lifetime and low maintenance cost.



Benefits:
• Cost-effective LED alternative to conventional street lights
• Easy to install
• Long lifetime and low maintenance cost



Features:
• Basic, Compact design & High performance design
• High-quality components,Complete illumination across the entire roadway
• Wide choice of optics for increased application efficiency
• No external reflectors required, Low weight
• Excellent for main roads, collecting roads, and roundabouts
• Dramatic energy savings, Safe for industrial applications



Application:
• Suitable for roadway & car park area
• Traffic routes
• Residential areas

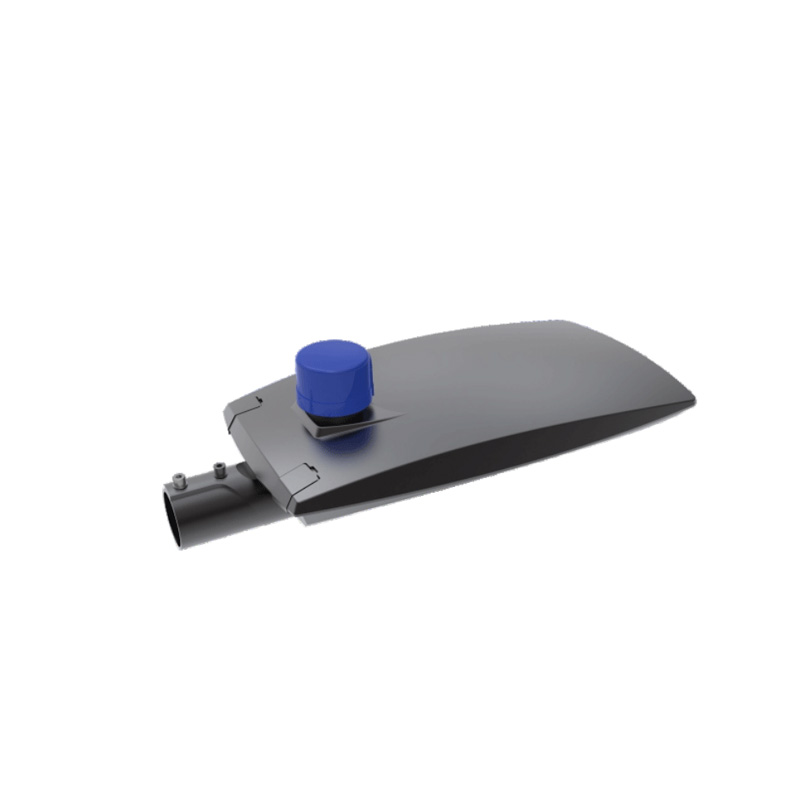

Mounting Options:



Product Specifications:

Item  No.	HZB-LD-SL-60W	HZB-LD-SL-80W	HZB-LD-SL-100W
Efficency	130LM/W
Wattage	60W	80W	100W
Luminous Flux	7,800 lm	10,400 lm	13,000 lm
Input Volt	100-277VAC	100-277VAC	100-277VAC
Power Factor	>0.95 / 230VAC	>0.95 / 230VAC	>0.95 / 230VAC
Beam Angle	Type2,Type3	Type2,Type3	Type2,Type3
Chip Brand	Lumileds 3030	Lumileds 3030	Lumileds 3030
Lifespan	> 50,000 hours
CRI	>70
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
SPD	12KV
Material composition(body)	ADC-12 Aluminium Alloy (<0.1% copper conten)
Material composition(optics)	Polycarbonate

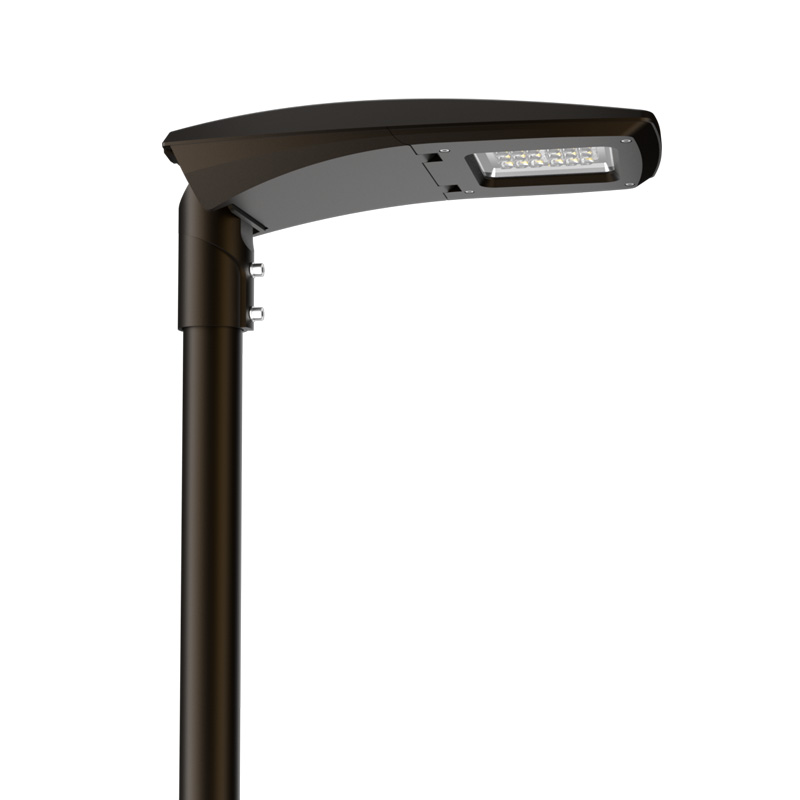

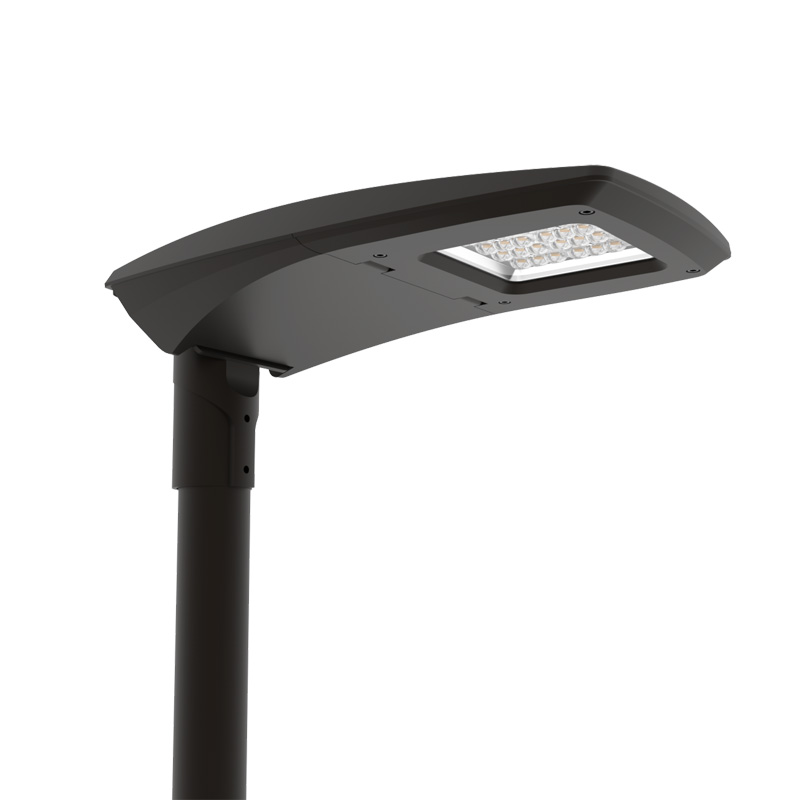

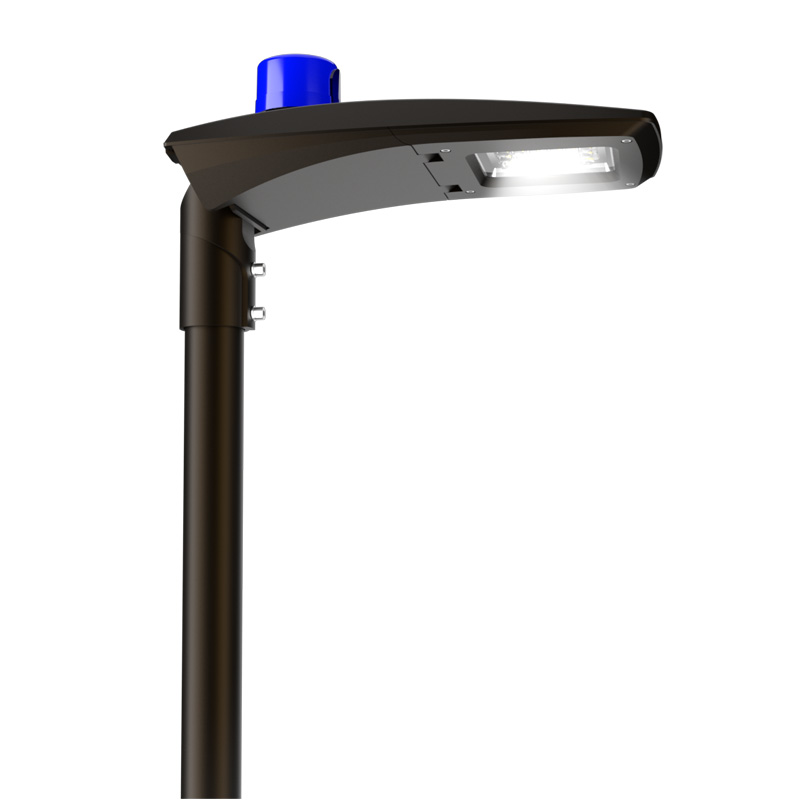

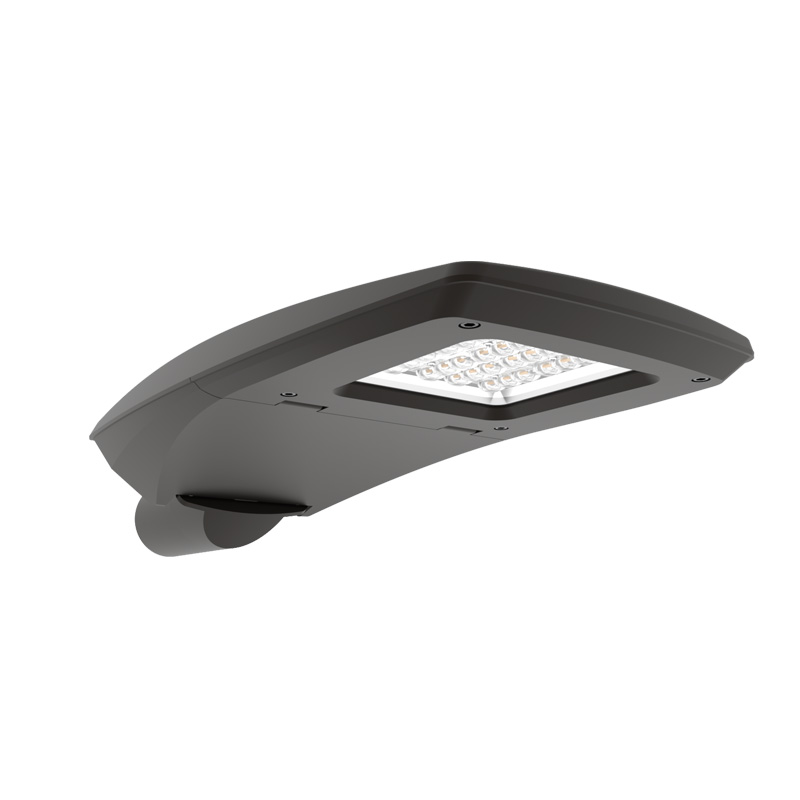

Mounting/Bracket Type	Post-top position, Side-entry position
IP Rating	IP66

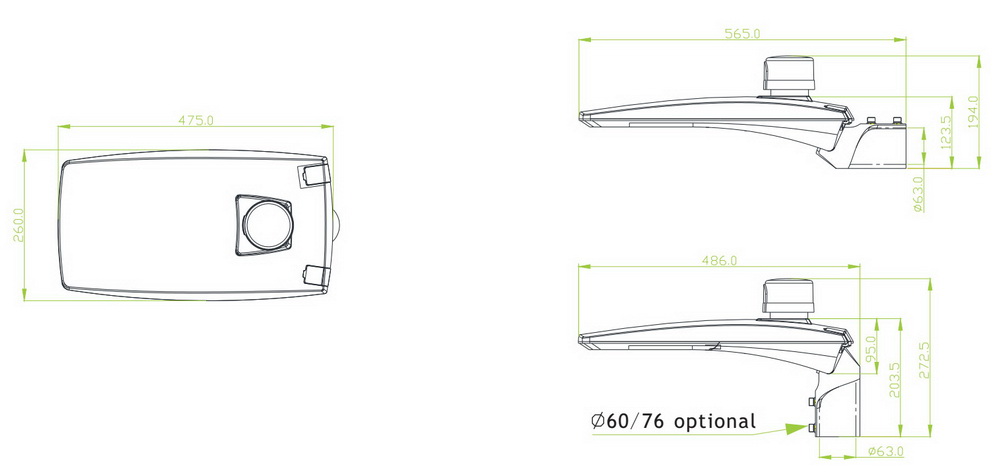

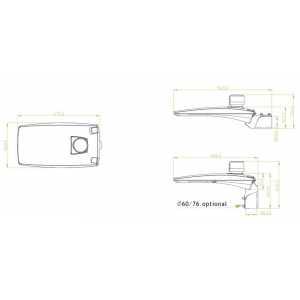

Size(mm)	564.2*259.7*95 (22.21*10.22*3.74in)	564.2*259.7*95 (22.21*10.22*3.74in)	564.2*259.7*95 (22.21*10.22*3.74in)
Net Weigh(kg)	5.6	5.6	5.6
Package Size(mm)	64.9 x 30 x 17cm  (25.55 x 11.81 x 6.69 in)
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	6.66kg (Standard)	6.66kg (Standard)	6.66kg (Standard)

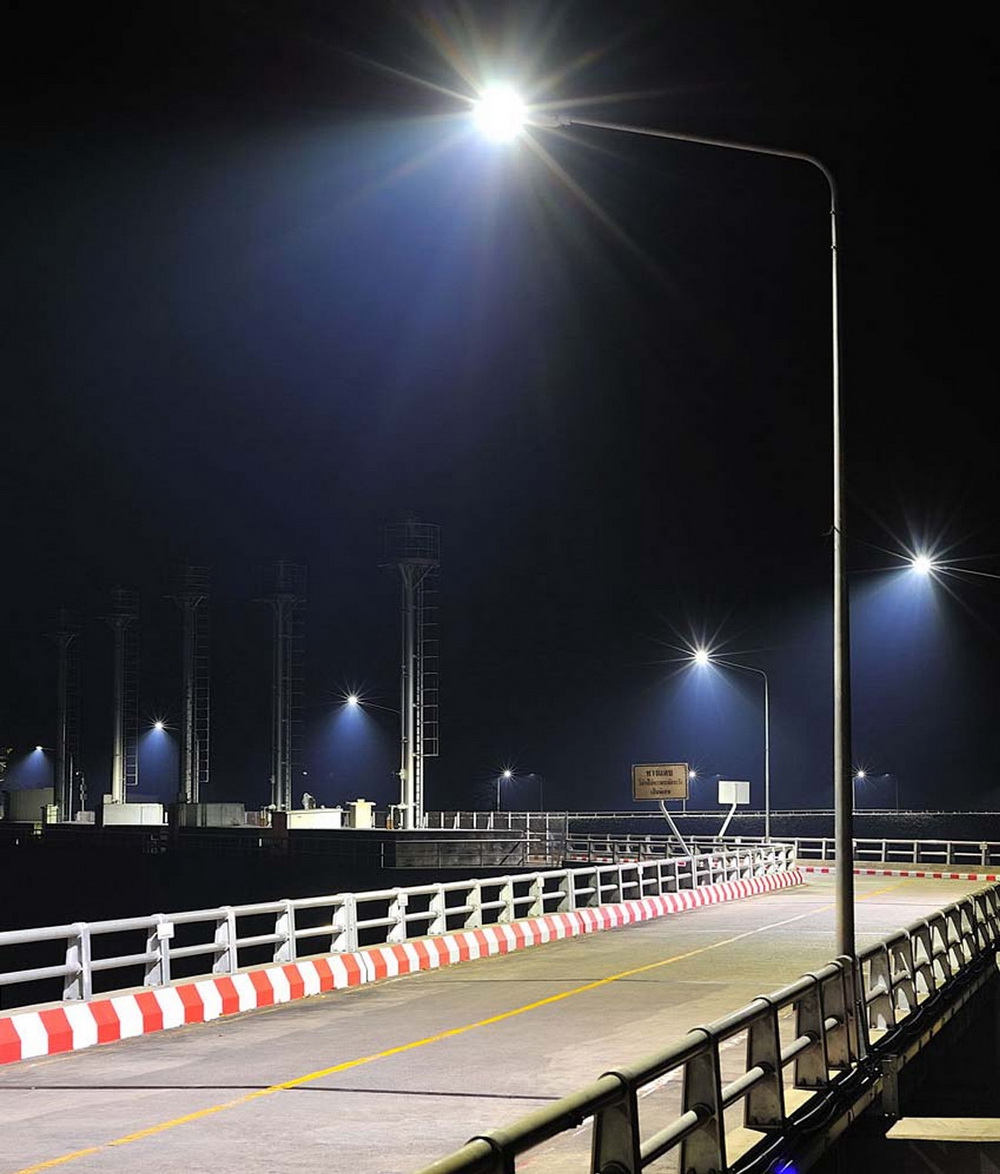

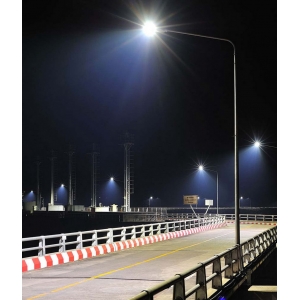

SEALS series LED Roadway Street Lighting Scene:
