Product Abstract:

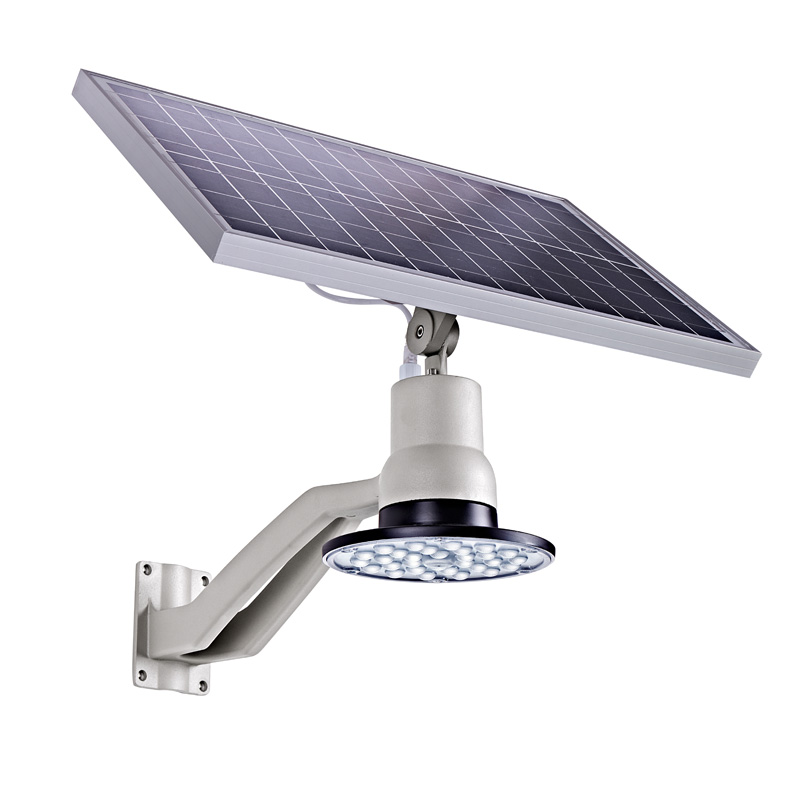

15w Integrated Solar Garden Lights, Exclusive type of solar garden lamp, Integrated Solar Garden Light for Courtyard and Park, light control + time control, 5H full power,Half power till dawn, lighting 365 days, with light induction, Normal operate 11H.


  • GENERAL DESCRIPTION

    This patented, solar-powered, integrated lighting system comes prewired. All that is required is mounting it on a pole or building and aiming the solar panels

    Forget the hassle of running power wires to your outdoor lighting area. You no longer need to put up with the inconvenience of interconnecting several different systems to give you outdoor light.

    High Brightness Outdoor LED Solar Garden Lamp with Motion Sensor
    Mounting Height for Best Visibility: 10 to 20 ft (3 to 6m)

    Model: T33
    Power: 10W 15W 25W
    Application: solar garden lights, solar landscape lights, solar wall lights, solar patio lights, solar yard lights, solar porch lights, solar park light, countryside solar lights, community solar lights, ect.
    1) Solar Panel adjustable: adjustable solar panel to ensure maximum efficiency of solar energy conversion
    2) Easy installation in 2 minutes: Step 1:Connect panel to light; Step 2:Fix with screws; Step 3:Install the lamp on the wall or pole

    Integrated Solar Garden LightsProduct Advantages:
    1) The characteristics of this LED street light is unidirectional, no light diffuse, to ensure validity of illumination.
    2) The lamp body uses flame retardant materials, impact resistance, vibration resistance, and protection grade reaches IP65.
    3) Wind resistance coefficient is 8, seismic coefficient is seven.
    5) Green environmental protection, no ultraviolet ray and no infrared ray, no radiation, and Soft lighting efforts, no stroboscopic, frequency can be.
    6) High efficient and long life span: driven by the latest control driver, the integrated Intelligent power controller, Water resistance.

    STRUCTURE, MATERIALS, & FEATURES

    1) Innovative all in one (integrated) design---we put solar panel, led lamp, li-ion battery, solar charge controller, motion sensor, all in to one unit, each solar light is a stand-alone All-in-One solar system.
    2) 360 adjustable solar panel---An adjustable bracket (angle) can tilt and turn to solar panel so it faces towards the sun ensure maximum efficiency of solar energy conversion.
    3) The fourth generation of sensing technology---Microwave Sensor Intelligent Adjustable Brightness, more accurate than PIR sensor, more energy-saving, more humanize.
    4) 4 intelligent working modes can be chosen by a hand-hold remoter. Easily switch between different lighting modes.
    5) Self-contained modular structure design, easy to maintain, battery can be easily replaced if need.
    6) 2mins for installation, low cost---no wiring, no digging, no debugging, easy to install, save your 80% cost of installation and labor fee.
    7) Wide Beam Angel Lens---patented light distribution lens significantly improves the light radiance and effectiveness. Lighting area is expanded by 40%, lighting uniformity is increased by 200%.
    8) Using lithium LiFePO4 batteries. Offer 4 times higher discharge depth, 5 times higher cycle life, 4times more storage and power capacity.
    9) All die-casting aluminum light body, patent fly hawk style design, full seal design, can protect lamp from sand and water. The integrated heat sink design provides powerful radiation function, can make LED chip to keep working even in the summer of desert.

    ADDITIONAL INFORMATION

    Model No. TYN-T33-10W TYN-T33-15W TYN-T33-25W
    Light Power 10W 15W 25W
    For Height 4-6M 4-6M 4-6M
    Solar Panel 12V/20W 18V/30W 18V/40W
    Battery Capacity 7.4V/8AH 11.1V/11AH 11.1V/15AH
    IP Rate IP65 IP65 IP65
    Chip Osram BRIDGELUX BRIDGELUX
    Luminous Efficiency 100LM/W 9v 100LM/W 9v 15w 100LM/W
    CRI 70 70 70
    Raining Days 3-5Days 3-5Days 3-5Days
    Light Angle 120 120 120
    Weight 1.40kg 2.10kg 2.90kg
    Product Size 400*80*150MM 400*80*150MM 400*80*150MM
    CCT 2700K-6500K 2700K-6500K 2700K-6500K
    Packing Size 44*32*25CM 54*40*35CM Light 54*40*35CM
    G.W 2.25KG 2.78KG 2.78KG
    Qty of Package 1PCS 1PCS 1PCS
    Warranty 2Years 2Years 2Years
    Remarks light-control+time control (5H full power,Half power till dawn),lighting 365 days,with light induction.Normal operate 11H. light-control+timing control (5H full power,Half power till dawn)(2-3 rainy days ),Normal operate 11H,lighting 365 days,with light induction. light-control+time control (5H full power,Half power till dawn)(2-3 rainy days ),Normal operate 11H,lighting 365 days,with light induction.
