Product Name:
TYN-T10-60WModel No.:
TYN-T10-60W
Product Abstract:
60W Solar Street Light,Solar Panel:18V/90W Polysilicon, Lithium battery: 70AH/12V, LED light source: COB/Bridgelux 45*45/2*30W, Installation height: 3~5 M, Package size:73*29*11, Weight:4.60kg, Work mode: Light control + Time control (Auto set work mode,with light induction)
Solar Street Lights TYN-T10 Series
Model: TYN-T10-60W
60W Solar Street Light,Solar Panel:18V/90W Polysilicon, Lithium battery: 70AH/12V, LED light source: COB/Bridgelux 45*45/2*30W, Installation height: 3~5 M, Package size:73*29*11, Weight:4.60kg, Work mode: Light control + Time control (Auto set work mode,with light induction)
It is widely used for the lighting of city road and main traffic road. Products are no need of wire or city electric, easily for installation, energy saving and environmental protection, no charge of electric fee, longer span life.
PRODUCT FEATURES
1. Die casting shell, beautiful appearance.
2. No ultravioet / infrared radiation does not contain mercury, lead and other heavy metals, green environmental protection.
3. Spot shape for the bat wing, the use of optical glass for two times with light, light transmisson rate of up to95%, the ability to resist ultraviolet radiation, outdoor use stability.
4. Protection level: IP65
5. Warranty period: 2 years
6. Working environment: -30~+50°C
Solar panel: 15W 30W 40W 60W
Battery: Lithium battery 5Ah 11Ah 16Ah 20Ah
Light LED : 10W 20W 30W 50W highpower intergrated LED
Light angel: 120 degree
IP rating: IP65 waterproof
Light color temperature: 6000-6500K(White)
Recharger time : 6-8hours
Working time: 8-12hours

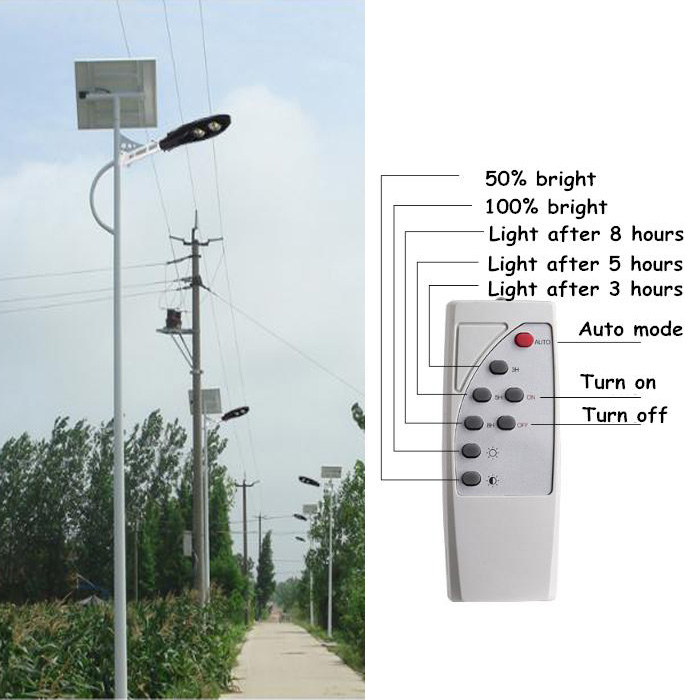

Smart Funciton: Light time control, closed when daytime charging, automatic start work in dark.
| Model | HZB-TYN-T10-10W | HZB-TYN-T10-20W | HZB-TYN-T10-30W | HZB-TYN-T10-50W | HZB-TYN-T10-60W | ||
| Sower Panel | 6V/15W | 18V/30W | 18V/50W |
18V/70W |
18V/90W | ||
| Battery Capacity | 3.7V/5Ah | 25AH/12V | 32AH/12V | 55AH/12V | 70AH/12V | ||
| Size(mm)(LxWxH) | 350*150*60 | 350*150*60 | 495*245*75 | 495*245*75 | 720*275*75 | ||
|
Solar Panel Size (mm)(L*W*H) |
270*225*20 | 540*450*20 | 540*670*25 | 670*675*30 | 1000*510*30 | ||
| Light Source | COB/Bridgelux 45*45/1*10W | COB/Bridgelux 45*45/1*20W | COB/Bridgelux 45*45/1*30W | COB/Bridgelux 45*45/1*50W | COB/Bridgelux 45*45/2*30W | ||
| Color Temp | 6000 - 6500K (white) | ||||||
| Housing Material | Aluminium Alloy | ||||||
| Operation Temp | -40°- 60°C | ||||||
| Life Span | 50,000 hours for LED | ||||||
| Beam Angle | 120° | ||||||
| Efficiency | ≥100lm/w | ||||||
| Install Height | 3-6m | ||||||
| IP Rate | IP65-IP66 | ||||||
| Warranty | 2 Years | ||||||
