Product Name:
TYN-LD02-30WModel No.:
TYN-LD02-30WWarranty (Year):
5
Product Abstract:

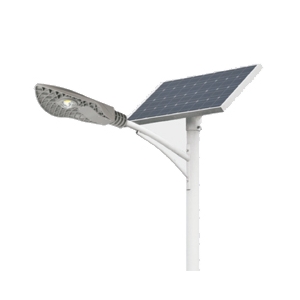

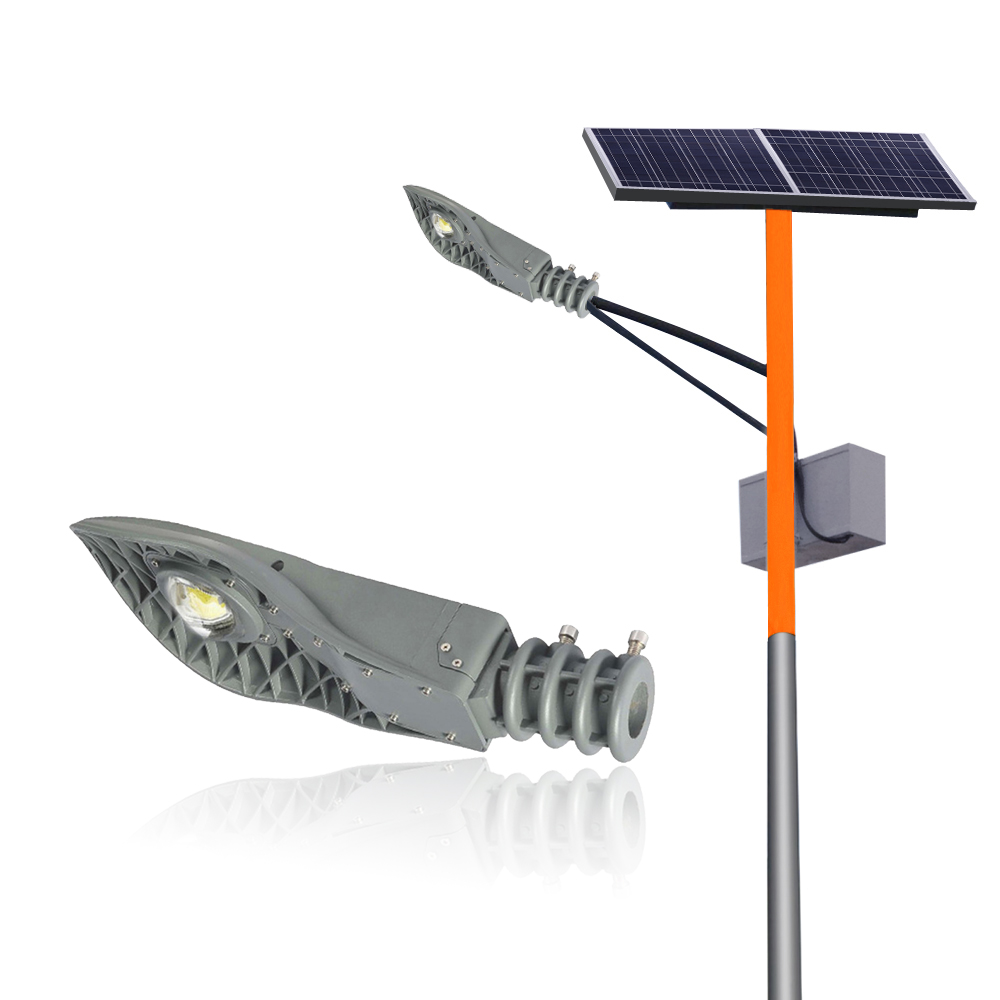

30W All-in-One Solar Street Light are designed for highways, freeways, neighborhood streets, rural roads, etc. and provide security, sustainability and an overall green image. We are the Solar Street Lights Manufacturer of Low-voltage electrical appliances. Commercial grade LED solar powered street lighting systems manufactured in China.
| Model No. | TYN-LD02-10W | TYN-LD02-15W | TYN-LD02-20W | TYN-LD02-25W | TYN-LD02-30W |
| Light Power | 10W | 15W | 20W | 25W | 30W |
| For Height | 3M | 3.5M | 4M | 5M | 6M |
| System Voltage | 12V | 12V | 12V | 12V | 12V |
| Solar Panels | 45WP | 65WP | 85WP | 2*55WP | 2*65WP |
| Battery | 55AH | 80AH | 100AH | 120AH | 2*80AH |
| Working Time | 8-10Hrs | 8-10Hrs | 8-10Hrs | 8-10Hrs | 8-10Hrs |
| Rainy Days | 3-4 Days | 3-4 Days | 3-4 Days | 3-4 Days | 3-4 Days |
| Sun Hours | 3-4Hrs | 3-4Hrs | 3-4Hrs | 3-4Hrs | 3-4Hrs |
| Luminous Eff | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W |
| Luminous Flux | 1000lm | 1500lm | 2000lm | 2500lm | 3000lm |
| CCT | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K |
| CRI | >75Ra | >75Ra | >75Ra | >75Ra | >75Ra |
| Life Span | >50,000 Hrs | >50,000 Hrs | >50,000 Hrs | >50,000 Hrs | >50,000 Hrs |
| Working Temp | -40°C to 50°C | -40°C to 50°C | -40°C to 50°C | -40°C to 50°C | -40°C to 50°C |
How solar Street Light work?
(Day time) Storage battery charging from solar battery components: Under the control of the intelligent controller of solar energy street lamp, solar battery absorbs solar energy light and converts into electrical energy through solar panels irradiated by sunshine. (Night time) Storage battery supply electricity to LED light
CUSTOMZIED SOLAR POWER GENERATION SYSTEM
You don't need to worry about installation.
Experienced and professional installation and training service will solve your problems.
Solar Street Light Installation Guide
Engineering design according to your demand (OEM service)
Provide professional installation guide

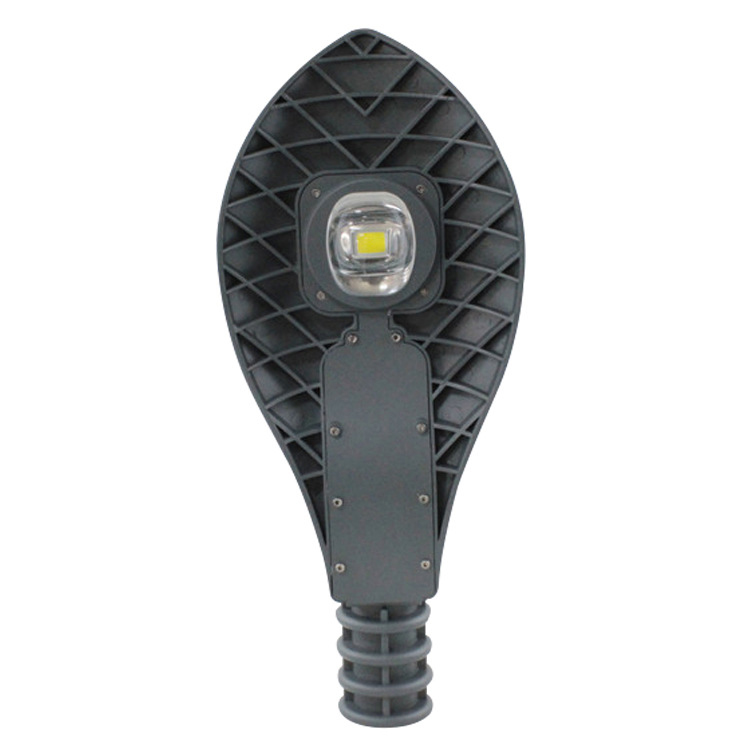

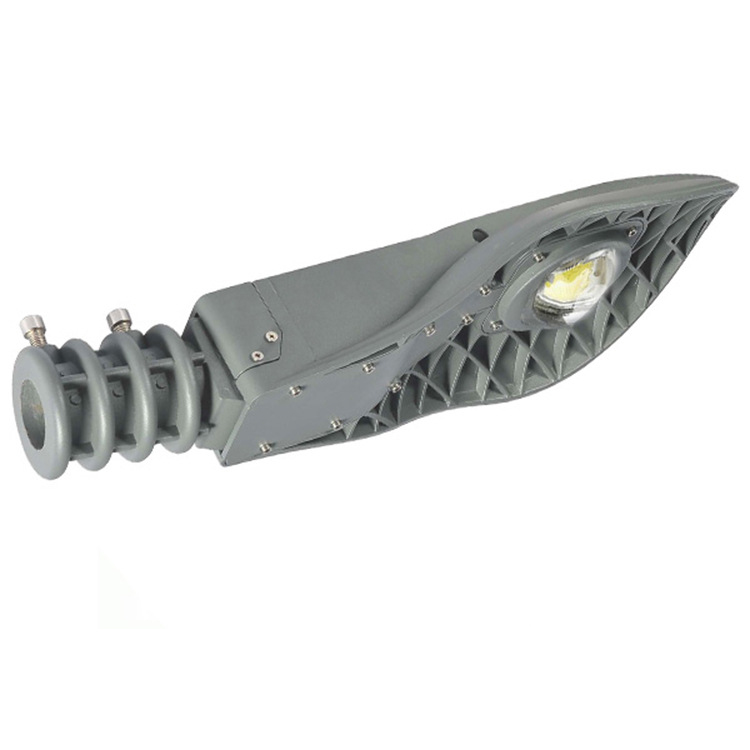

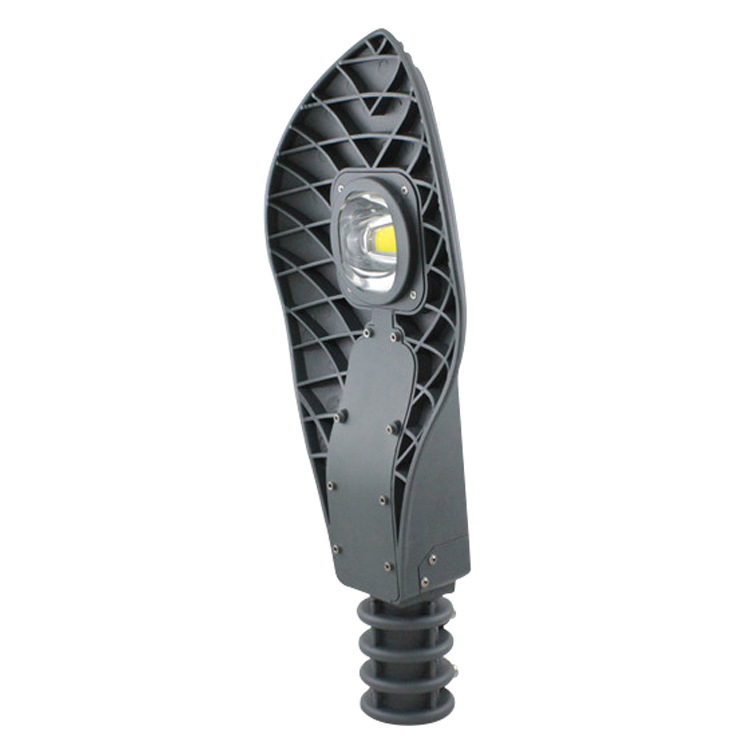

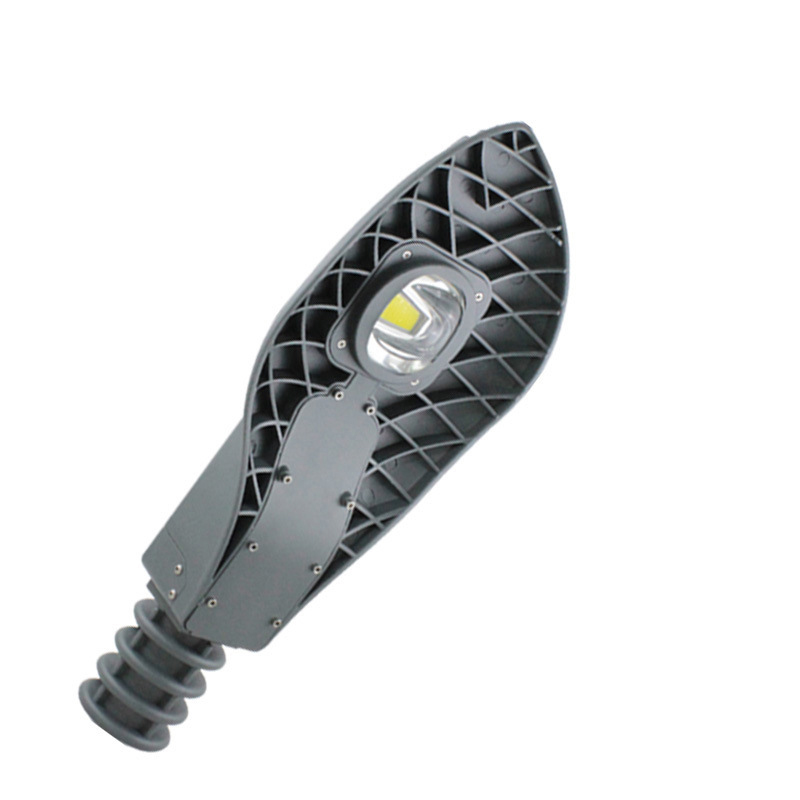

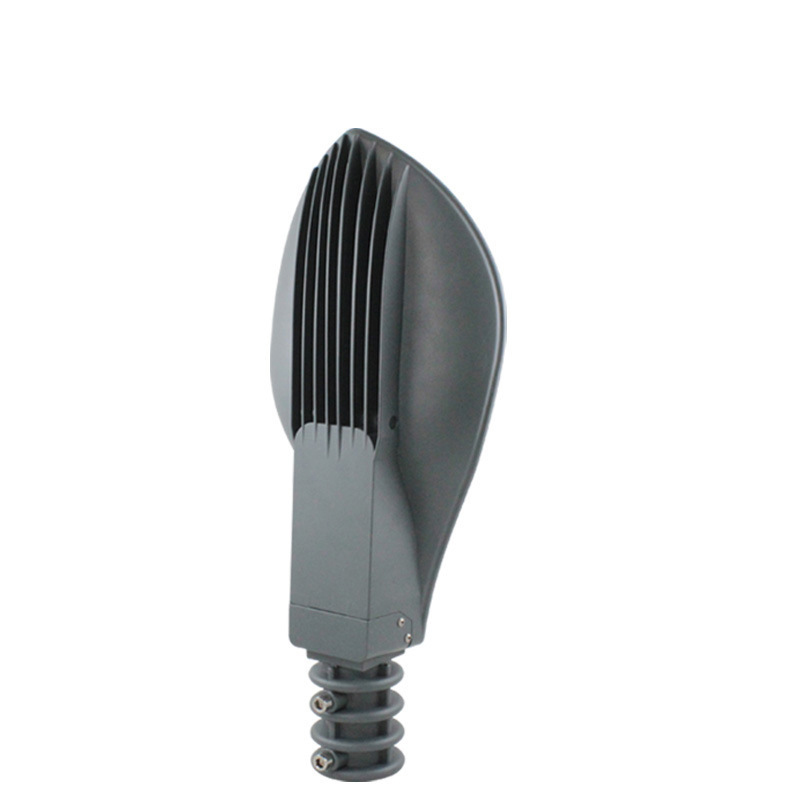

LED Material Description:
1.Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
2. Application with Polyester Substance in its Surface.
3. Implement of Reflect: Made of High Purity Aluminum.
4. Cover: High Strength and High Transparent Toughened Glass
5. Fastener Bolt and Screws: Stainless Steel
6. Arm Diameter: 60mm
7. IP67
Solar Panel Description:
1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline Or Mono cells and Adding Aluminum Frame, Tempered Glass.
2. 5 years'warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.
Solar Gel Battery With > 8Years Life Span:
Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage life. no need add acid or water to maintenance it,No acid mist, Environmental Friendly.
Controller Description:
1. Protection grade: IP68, effective dust-proof and water-proof
2. Type:PWM For good Sun Condition Area like Africa & MPPT wtih high efficiency for countries like Canada with bad sun condition in winter.
3. Single and double street light output control flexible
4. Dimmable &Human Sensor are avaliable.
5. LED status indicate
Advantages:
1. Super brightness, high power, high efficiency
2. Long lifespan, energy saving, environmental-friendly
3. Advanced technology, exquisite workmanship
4. Easy installation, free maintenance
